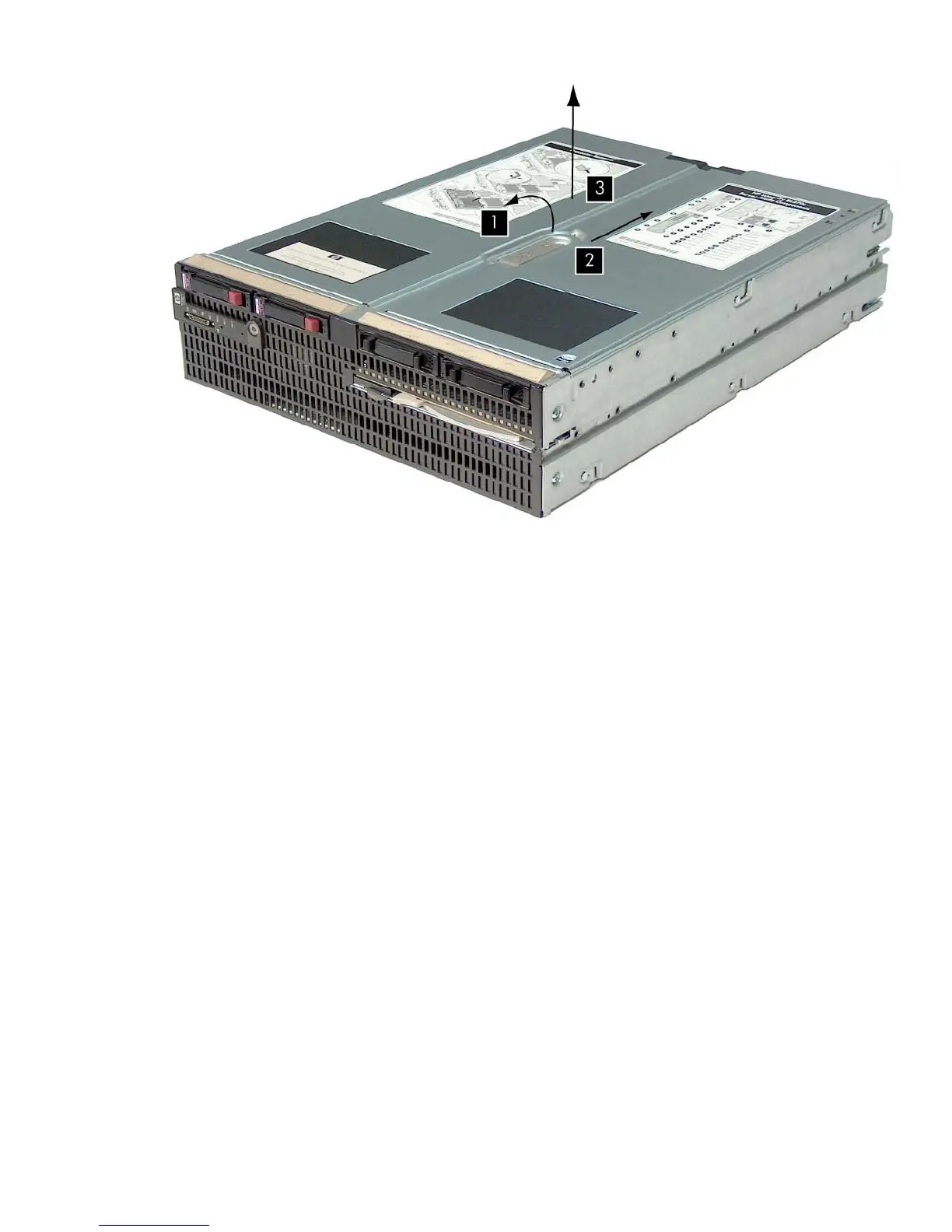

Figure 43 Removing the Right Access Panel
Replacing the Right Access Panel
To replace the access panel:
1. Make sure the right access panel latch is in the open position (pointing up).
2. Place the access panel onto the server blade by lining up the posts on each side of the access
panel with the keyways on the server blade chassis (1).
3. Slide the access panel toward the front of the server blade (2), and push down on the access
panel latch until it is flush with the access panel (3). See Figure 44 (page 118).
Removing and Replacing the Server Blade Access Panels 117
