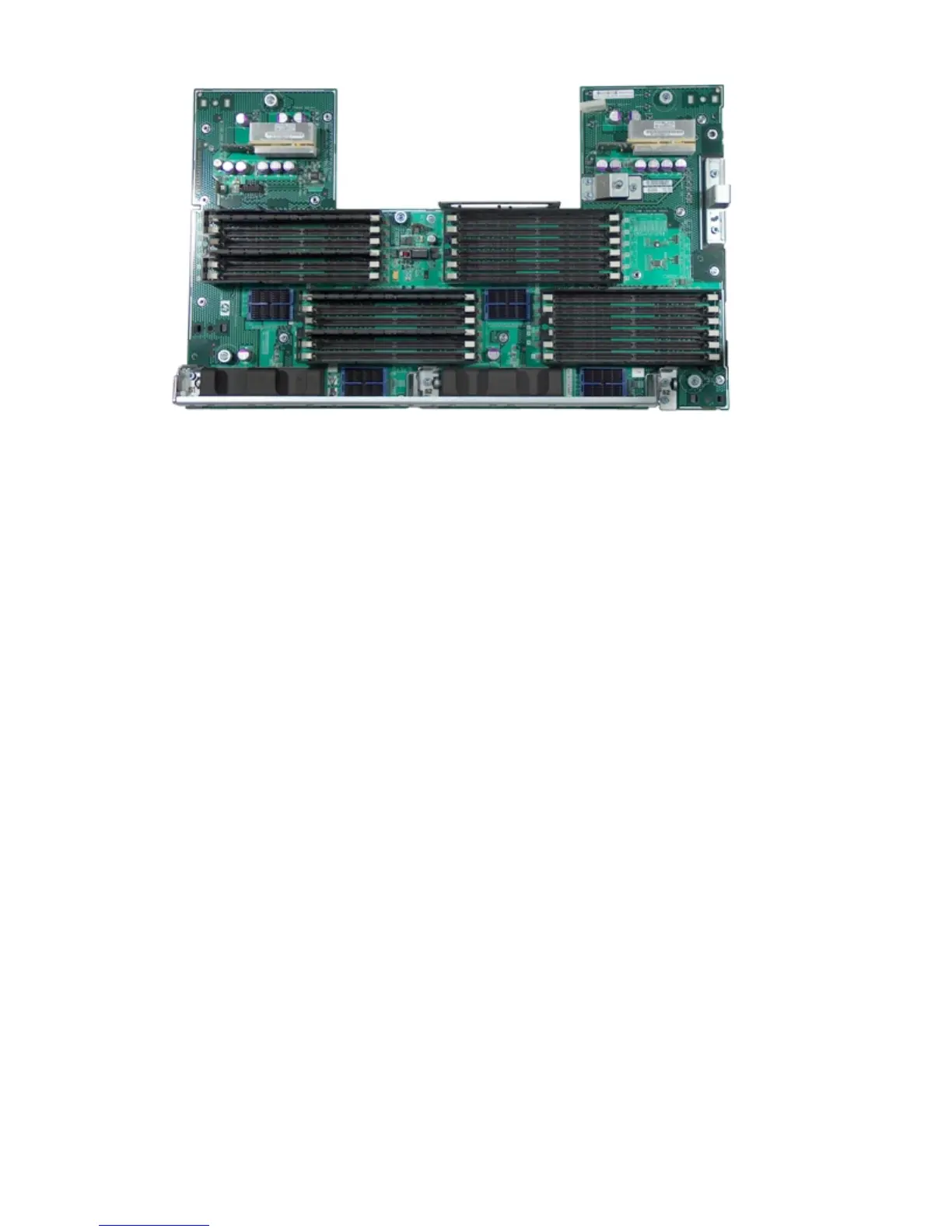

Figure 49 Memory Mezzanine Board
3. Rotate the memory mezzanine board handle forward while pushing down on the memory
mezzanine board to attach the memory mezzanine board to the system board.
4. Tighten the five thumbscrews on the memory mezzanine board to secure the memory mezzanine
board to the system board.
5. Route the processor–3 connector through the loop on the memory mezzanine board and
connect it to the connector on the system board (if necessary).
6. Replace the processor air baffle onto the system board.
7. Replace the access panel.
See the “Replacing the Right Access Panel” (page 117).
8. Place the server blade into the enclosure. See “Replacing the Server Blade in the Enclosure”
(page 115).
Removing and Replacing a Processor
Use the following procedure to remove and replace a processor in the server blade.
Install the processors into the server blade in the following order:
• Processor slot 0
• Processor slot 1
• Processor slot 2
• Processor slot 3
Processor slots 0 and 1 are on the right side of the system board.
Processor slots 2 and 3 are on the left side of the system board.
Figure 50 (page 125) shows the processor slot locations on the system board.
