1. Unlock the cam on the right access panel latch (if necessary) by turning the lock on the access
panel latch counterclockwise with a Torx T-15 or flat head screwdriver.
See Figure 11.
2. Pull up on the access panel latch (1).
This causes the access panel to slide back about 2 cm (0.75 in) (2).
3. Remove the access panel by lifting it straight up and off the server blade (3).

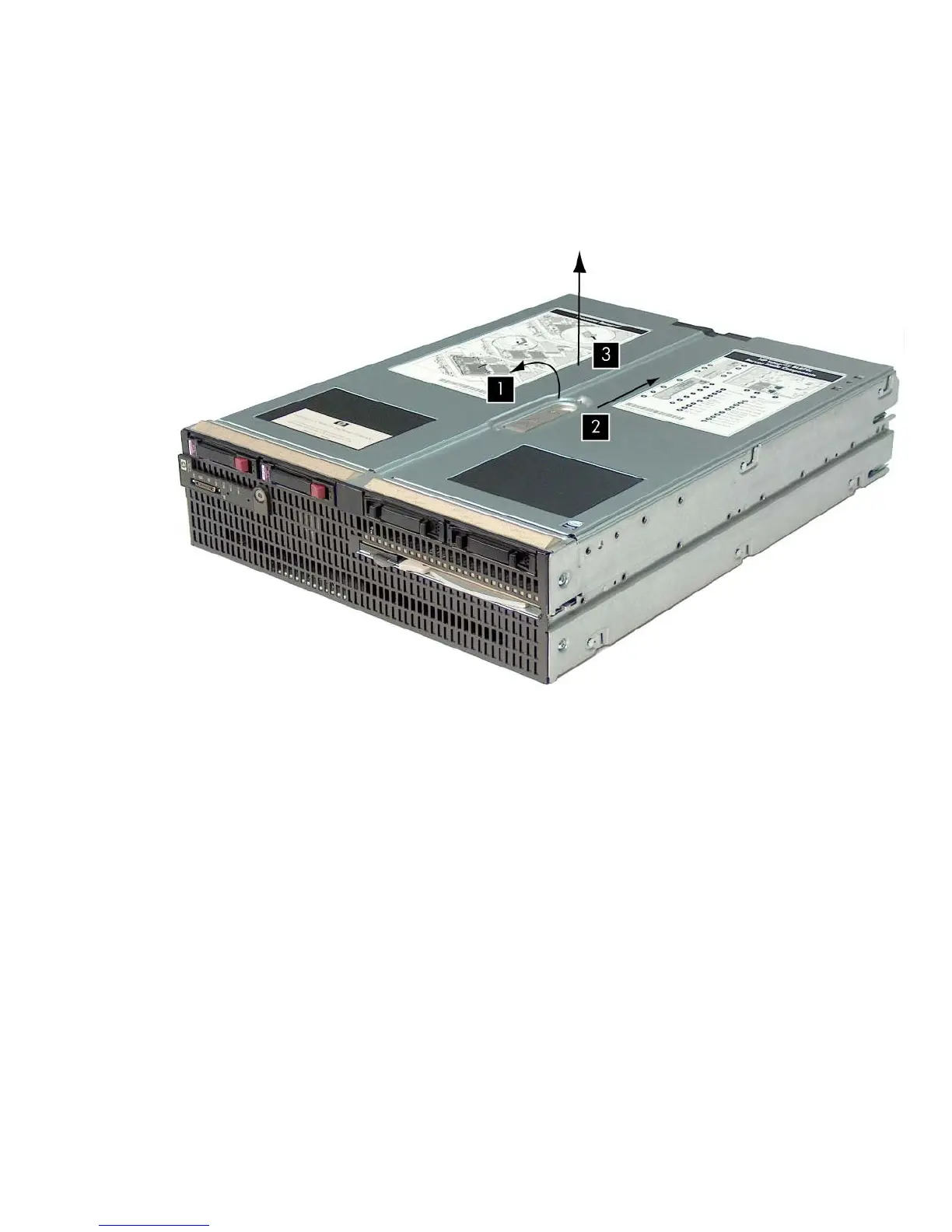

Figure 11 Removing the Server Blade Right Access Panel
4. After the access panel is off, you can do the following:
Add an additional processor to slot 1. For more information, see “Installing a Processor
(page 31).
Add additional mezzanine cards. For more information, see “Installing Mezzanine Cards
(page 37).
If you are installing more components under the left access panel, install right cover on the
server before removing the left access panel.
Removing the Server Blade Left Access Panel
To remove the left access panel:
1. Unlock the cam on the left access panel latch (if necessary) by turning the lock on the access
panel latch counterclockwise with a Torx T-15 or flat head screwdriver.
See Figure 12 (page 31).
2. Pull up on the access panel latch (1).
This causes the access panel to slide back about 2 cm (0.75 in) (2).
3. Remove the access panel by lifting it straight up and off the server blade (3).
30 Installing the Server Blade Into the Enclosure
