Troubleshooting Tools
The HP Integrity BL870c server blade uses LEDs and other tools to help troubleshoot problems that
occur in the server blade.
Front Panel LEDs
The front panel of the server blade contains the unit identifier (UID) LED, server health LED, internal
health LED, and the network interface controller (NIC) LEDs. Figure 37 shows the front panel LED
locations.
Server blades use flashing states (amber or red) on these LEDs to indicate a warning or an error.
There are a total of seven buttons, arranged vertically (when the server blade is installed in the
enclosure).
The BMC controls the server health LED, blade hardware controls the power LED. Both BMC and
iLO 2 MP code determine the state of the health LED.

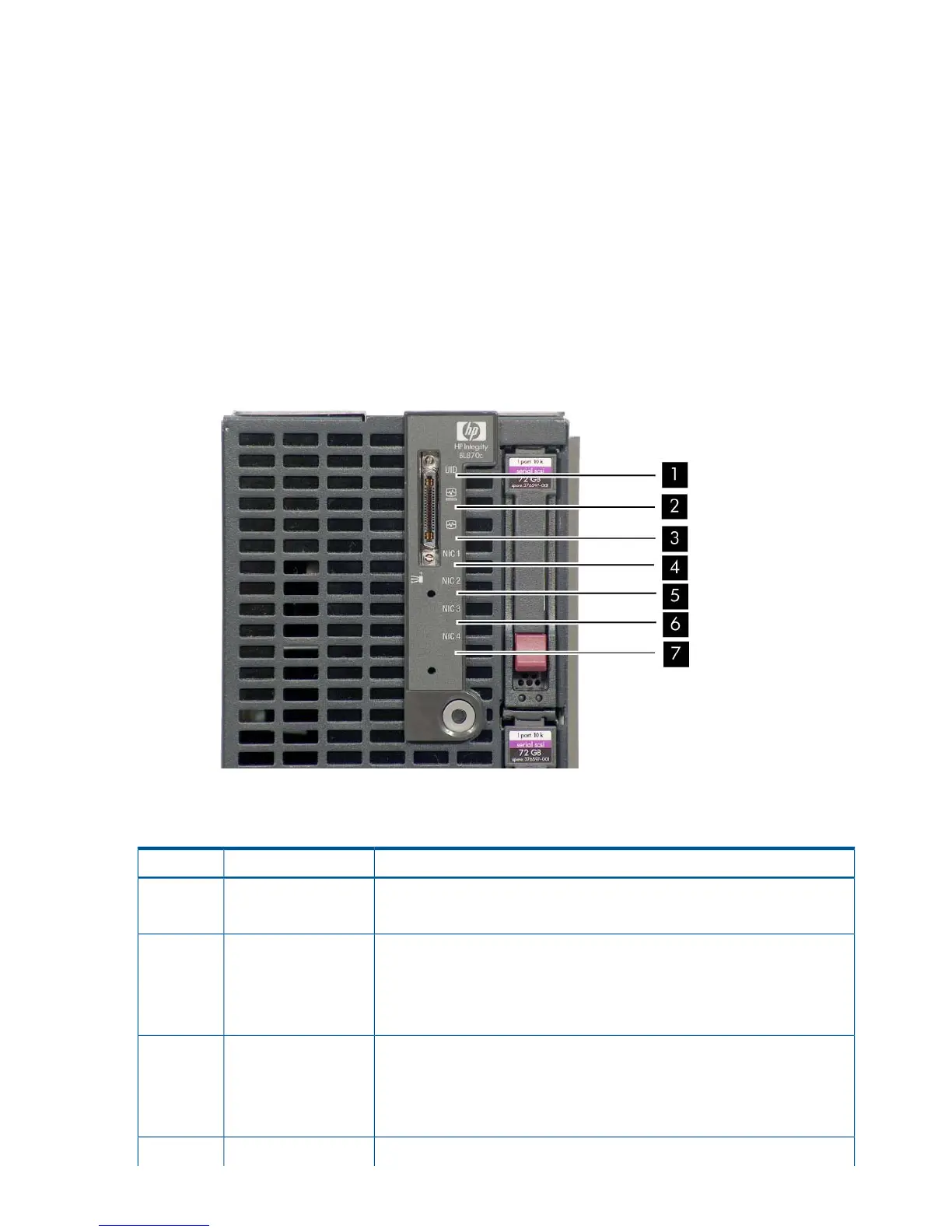

Figure 37 Server Blade Front Panel LEDs
Table 14 details the functions of the front panel LEDs.
Table 14 Server Blade Front Panel LEDs
StatusLED DescriptionItem
Steady Blue = FlaggedUnit Identification (UID)1
Off = Not flagged
Off = Power is offServer health2
Steady Green = Power is on
Flashing Amber = Server is degraded (power is on or off)
Flashing Red = Server critical (power is on or off)
Green = OnInternal health3
Amber = Standby power (main power off, iLO 2 MP power on)
Flashing Red = Critical internal error
Off = Unit off (no power from enclosure)
Steady Green = Linked to networkNIC 14 – 7
94 Troubleshooting
