4. Grasp the mezzanine card by the edges and lift it off the port.
NOTE: Mezzanine card 2 is installed above mezzanine card 1 on the system board. If you
remove mezzanine card 1, you must remove mezzanine card 2 to access it (if it is installed).

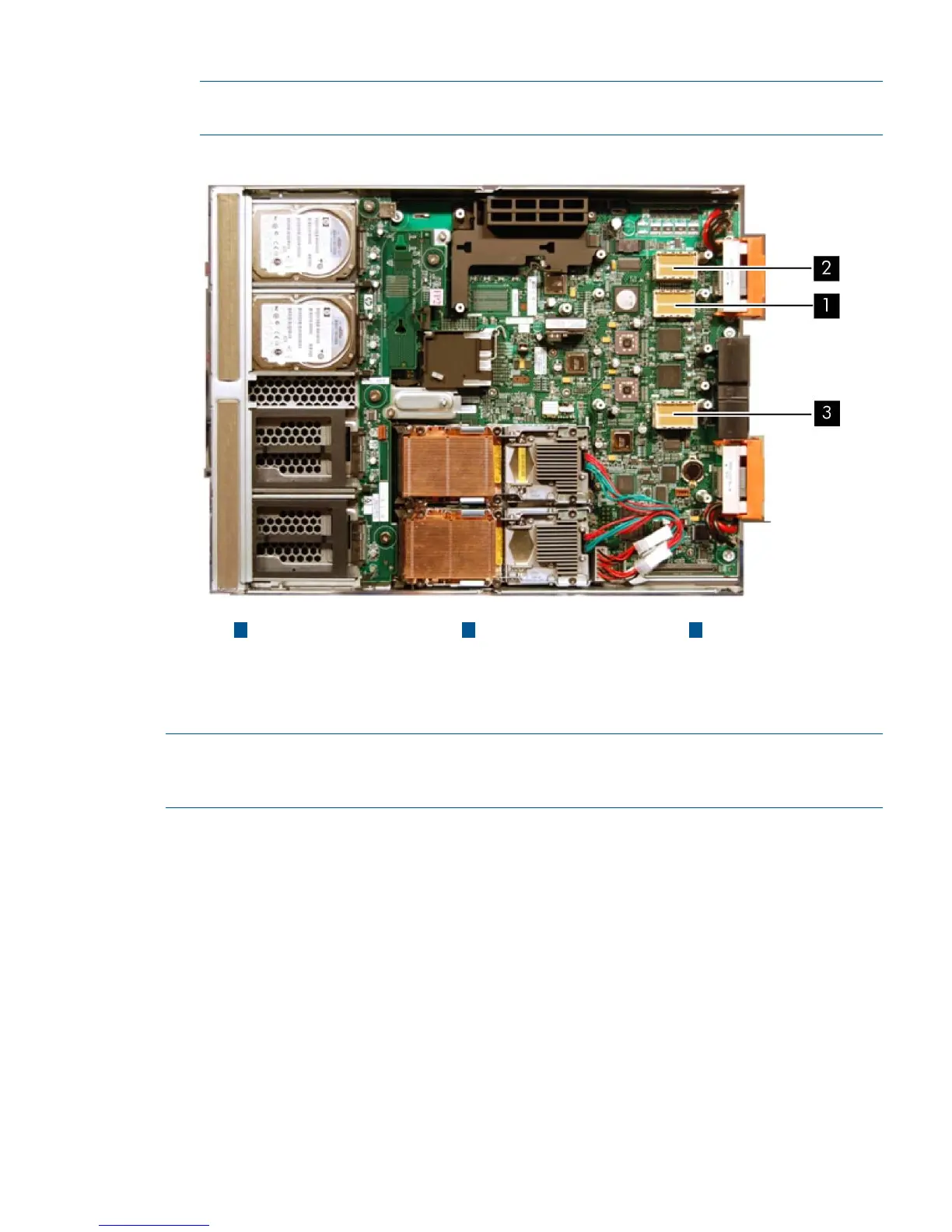

Figure 61 Server Blade Mezzanine Ports
321
Mezzanine port 3
(PCIe x8)
Mezzanine port 2
(PCIe x8)
Mezzanine port 1
(PCIe x4)
Replacing a Mezzanine Card
To replace a mezzanine card on the system board:
NOTE: To install mezzanine card 1, remove mezzanine card 2 first to access it (if necessary).
Mezzanine card 2 is installed above mezzanine card 1 on the system board. The card ports are
different heights. For the mezzanine port heights, see Figure 62 (page 136).
Removing and Replacing the Mezzanine Cards 135
