where:
x.xx.xx.xx refers to the FW version
yy refers to the type.
The currently supported type is IR.l).
SAS Address Displays the SAS Address assigned to this adapter.
FW Revision Displays the Fusion MPT firmware version and type (IR or IT).
Status Indicates whether an adapter is eligible for configuration utility software control
or is reserved for control by other software (Enabled, Disabled, or Error).
Enabled Indicates the EFI Driver is controlling the adapter or will attempt
to control the adapter upon reload.
Disabled Indicates the EFI Driver is not controlling the adapter or will
discontinue control of the adapter upon reload.
Error Indicates the EFI Driver encountered a problem with the adapter.
Viewing and modifying settings for the adapter is allowed but
the information and functionality available may be limited.
Boot Support Specifies whether an adapter is eligible for configuration utility software control
or is reserved for control by other software (Enabled BIOS & OS, Enabled
BIOS Only, Enabled OS Only, or Disabled).
• Enabled BIOS & OS — SAS controller is controlled by the BIOS and OS
driver.
• Enabled BIOS Only — SAS controller is controlled by the BIOS. This
setting might not be supported by all OS drivers. For example, it is not
possible to disable an adapter in a Windows driver.
• Enabled OS Only — SAS controller is controlled by the OS driver.
• Disabled — SAS controller is not controlled by the BIOS when the SAS
controller is loaded. However, the adapter is visible through the
configuration protocol.
Changes to the Boot Support setting are reflected in the Status field of the
Adapter List menu. The new settings do not take effect until the BIOS is reloaded
(system reboot).
RAID Properties Screens
There are four screens within RAID properties. To access the screens, select RAID Properties from
the Adapter Properties screen. The Select New Array Type screen displays. See Figure 35 (page 60).

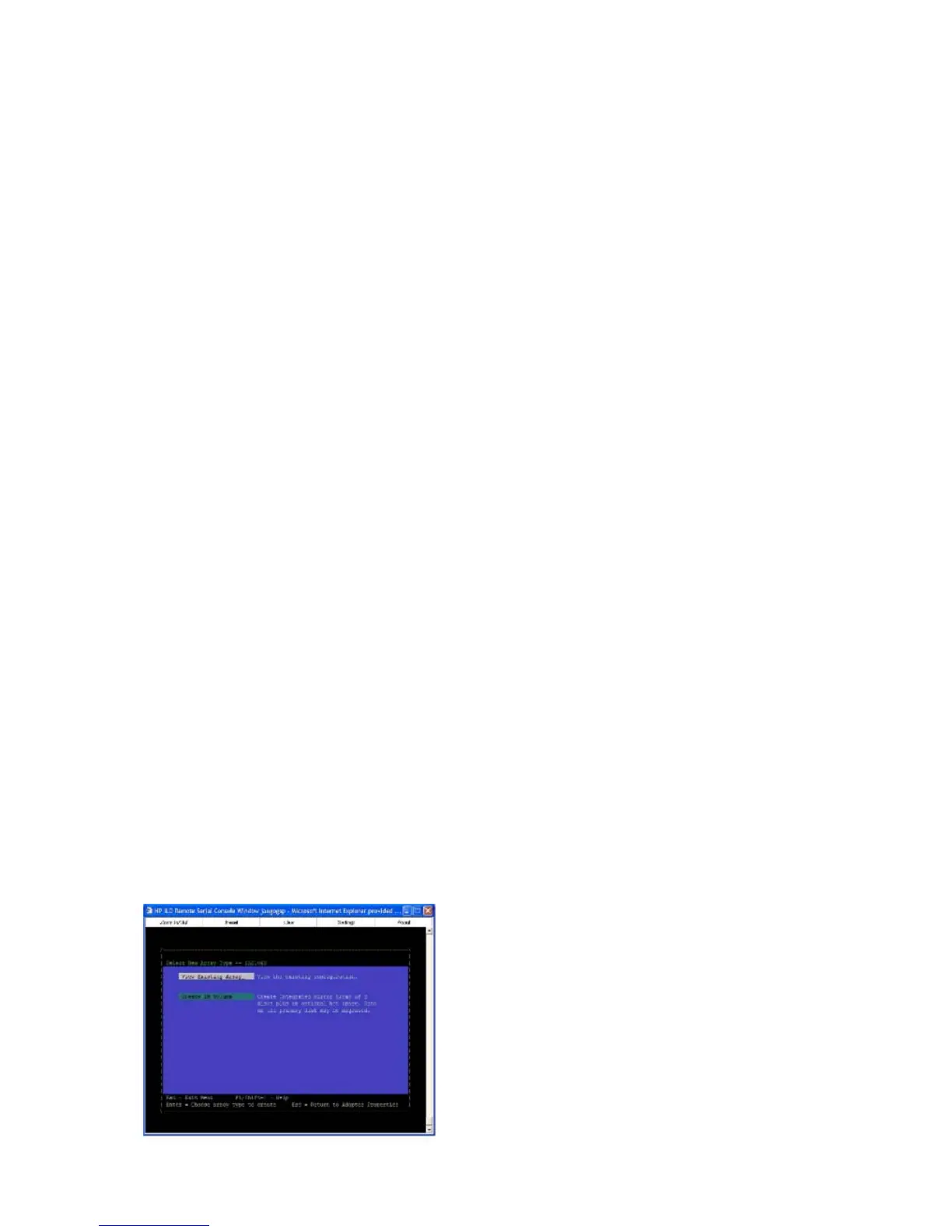

Figure 35 Select New Array Type Screen
60 Installing the Server Blade Into the Enclosure
