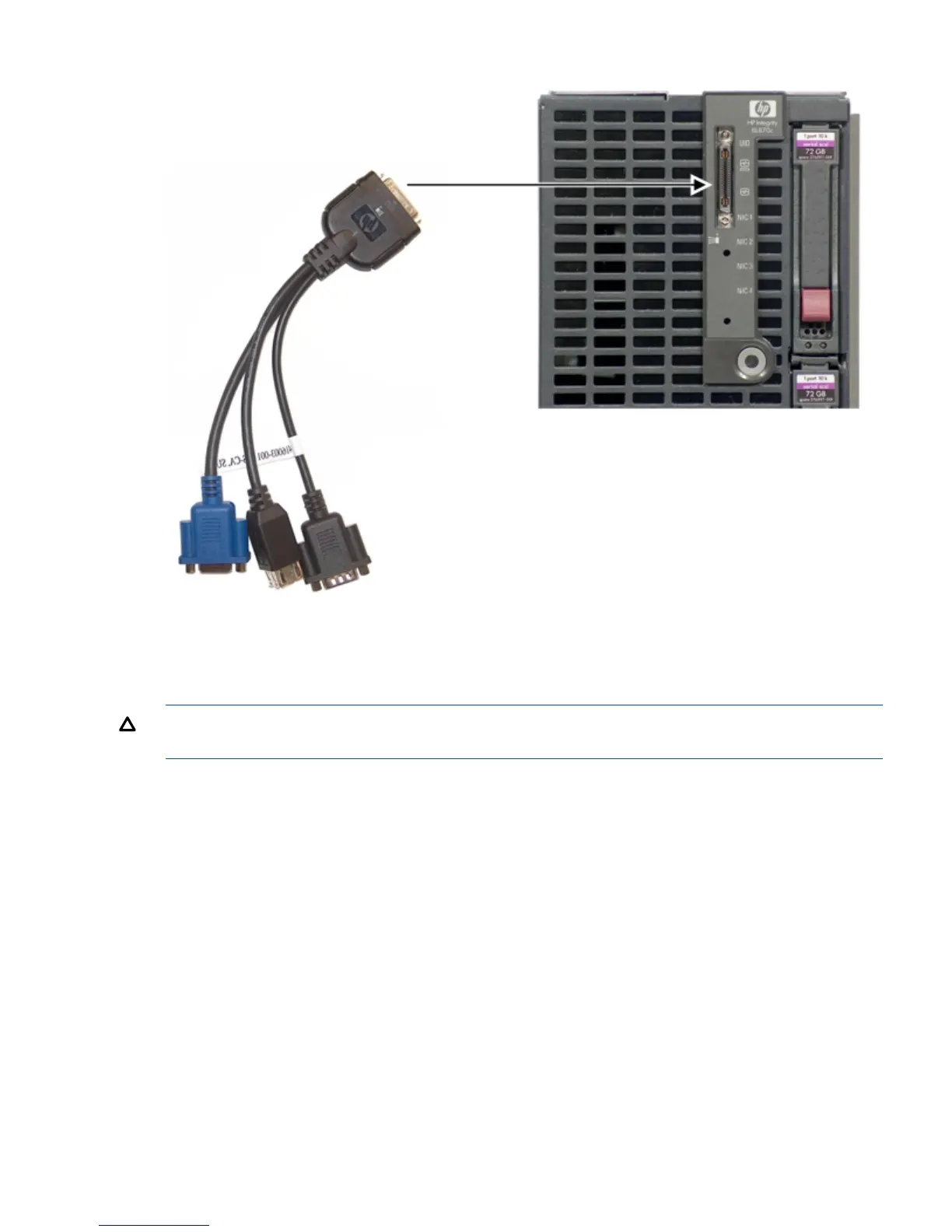

Figure 30 Connecting the SUV Cable to the Server Blade
Connecting a Terminal to the Server Blade
Use the following procedure to establish a connection from your server to your terminal (or emulator
device).
CAUTION: Disconnect the SUV cable from the port when not in use. The port and connector are
not intended to provide a permanent connection.
1. Connect the standard DB9f to DB9f modem eliminator cable to the RS-232 port on the SUV
cable.
2. Connect the other end of the DB9f to DB9f modem eliminator cable to your terminal device.
For more information about iLO 2 MP functions, see the HP Integrity iLO 2 Operations Guide.
3. Verify that the parameters for RS-232 serial port communication are set to the following values
on your terminal or emulator device:
VT 100 protocol
8/none (parity)
9600 baud
None (receive)
None (transmit)
4. Click OK to set the parameters.
5. If running an emulator, launch it now.
6. This ends the Accessing the iLO 2 MP with No Network Connection procedure.
7. Continue with “Configuring the iLO 2 MP” (page 48).
Accessing the Integrated Lights Out 2 Management Processor 47
