3. Tighten the thumbscrews on the mezzanine card circled in Figure 23 (page 40) until snug to
secure the card to the system board.

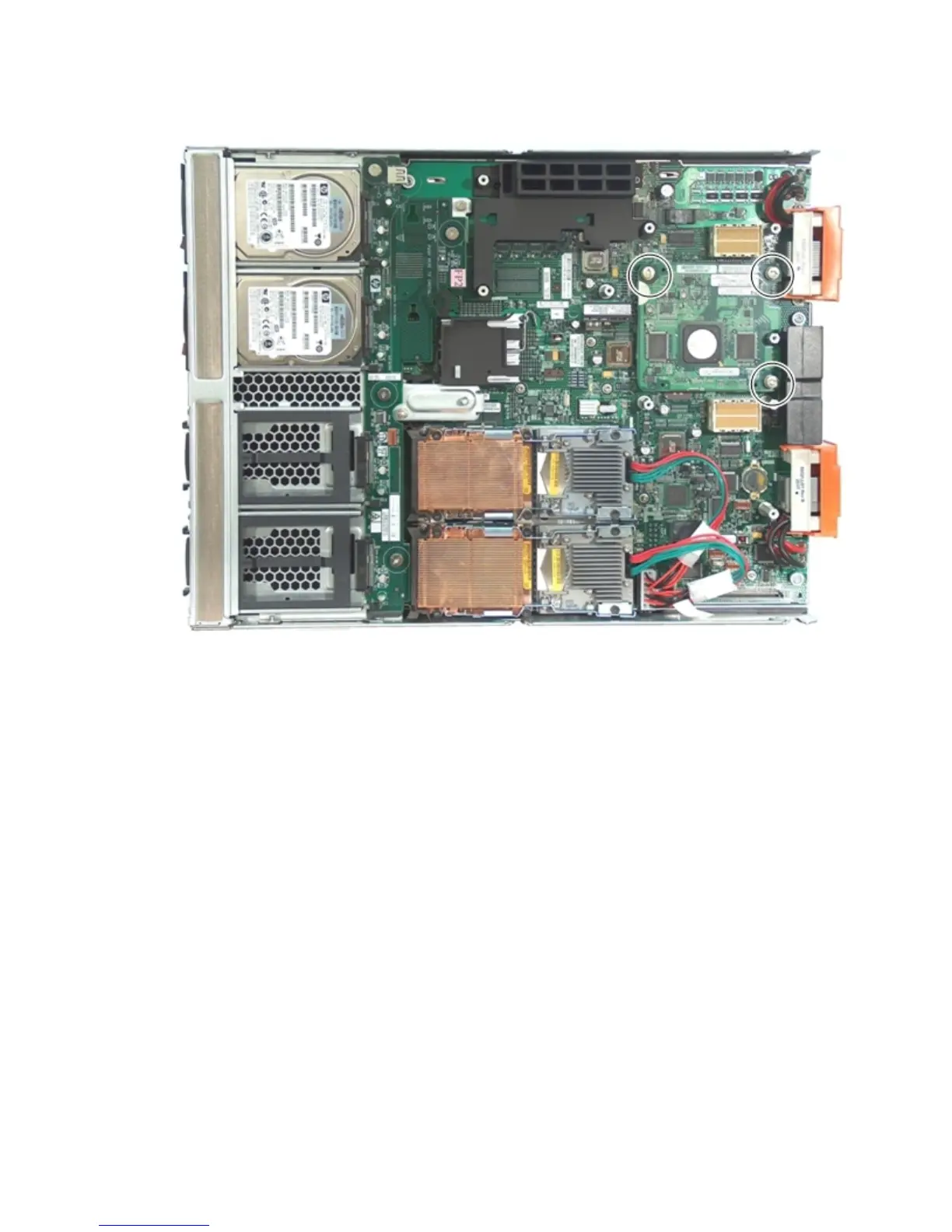

Figure 23 Installing Mezzanine Card 1 on the System Board
Installing a Mezzanine Card to Ports 2 and 3
To insert a mezzanine card to the PCIe x8 ports 2 and 3 on the system board:
1. Line up the plastic pins on the mezzanine card connector on the PCIe x8 port 2 on the system
board.
2. Push down on the card directly above the port to seat the card into port 2.
3. Tighten the thumbscrews on the mezzanine card until snug to secure it to the system board.
4. Line up the plastic pins on the mezzanine card connector on the PCIe x8 port 3 on the system
board.
5. Push down on the card directly above the port to seat the card into port 3.
6. Tighten the thumbscrews on the mezzanine card until snug to secure it to the system board.
Replacing the Right Access Panel
To replace the right access panel:
1. Make sure the right access panel latch is in the open position (sticking up).
See Figure 24 (page 41).
2. Place the access panel onto the server blade by lining up the posts on each side of the access
panel with the keyways on the server blade chassis (1).
3. Slide the access panel toward the front of the server blade (2), and push down on the access
panel latch until it is flush with the access panel (3).
40 Installing the Server Blade Into the Enclosure
