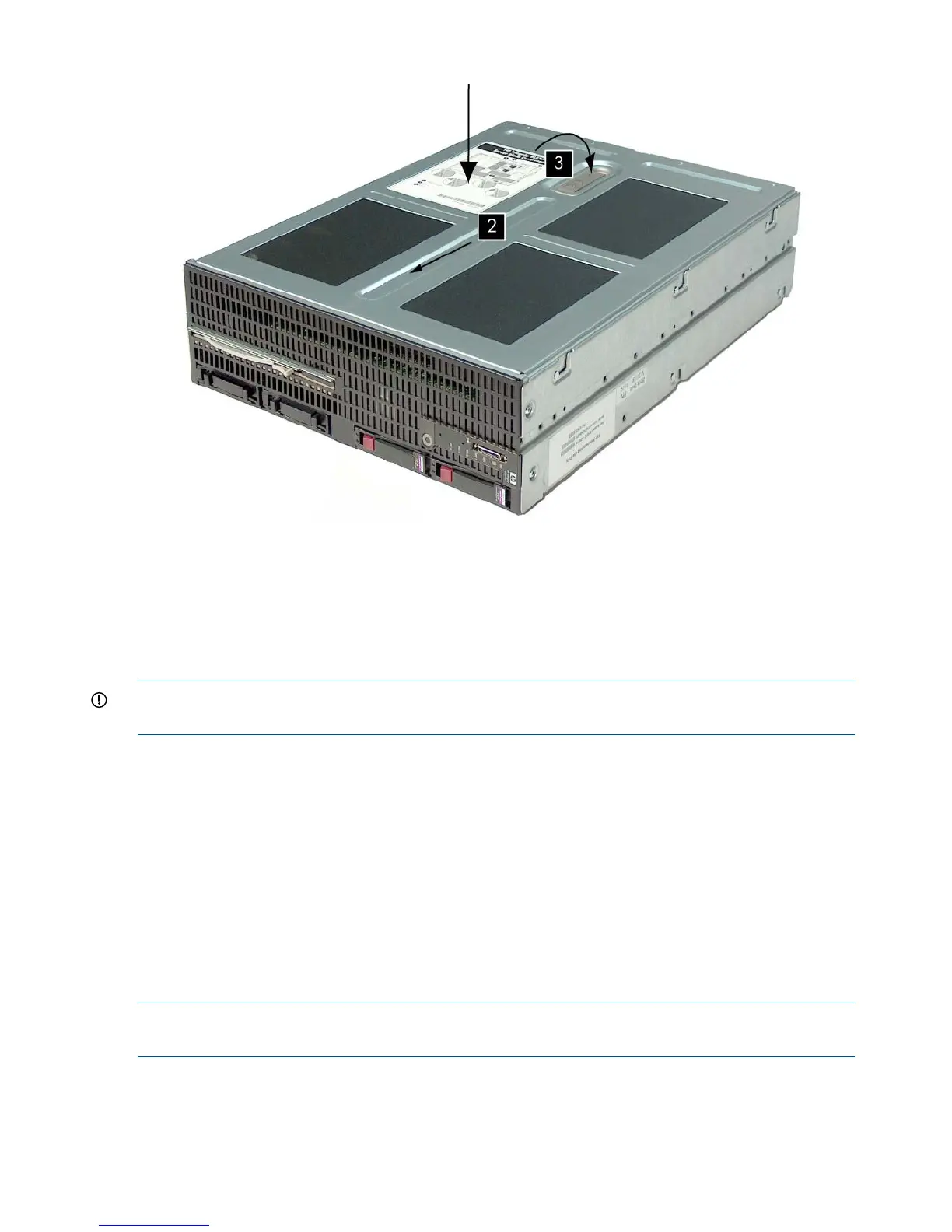

Figure 46 Replacing the Left Access Panel
4. Lock the access panel cam (if necessary) by turning the cam clockwise with the Torx T–15 or
flathead screwdriver.
Removing and Replacing Internal Components
These procedures describe how to remove and replace the internal components in the server blade.
The server blade contains the following field replaceable units (FRUs).
IMPORTANT: All FRUs are also customer replaceable units (CRUs), except the TPM. The TPM
must be serviced by authorized HP personnel.
• DIMMs
• Processors
• SAS backplane
• Air baffles
• System battery
• Front panel
• Mezzanine cards
• TPM module
• System board
NOTE: The server blade must be removed from the enclosure to access the internal components;
therefore, no internal devices are hot-swappable or hot-pluggable in the server blade.
Removing and Replacing DIMMs
There are 24 DIMM slots located on the system board. The following procedures show how to
remove and replace DIMMs in the server blade.
