Table 17 Internal Health LED States (continued)
StatusLED
Critical internal error, check System Event LogFlashing red
Server is off, and health last known state is goodOff
NIC LEDs
Table 18 shows the NIC LED status on the server blade.
Table 18 NIC LEDs
StatusLEDs
NIC is connected to the networkSteady green
Network activityFlashing green
No network activityOff
SAS Disk Drive LEDs
The two SAS disk drives on the server blade have identical LEDs that show the drive status. Figure 38
shows the location drive LEDs.

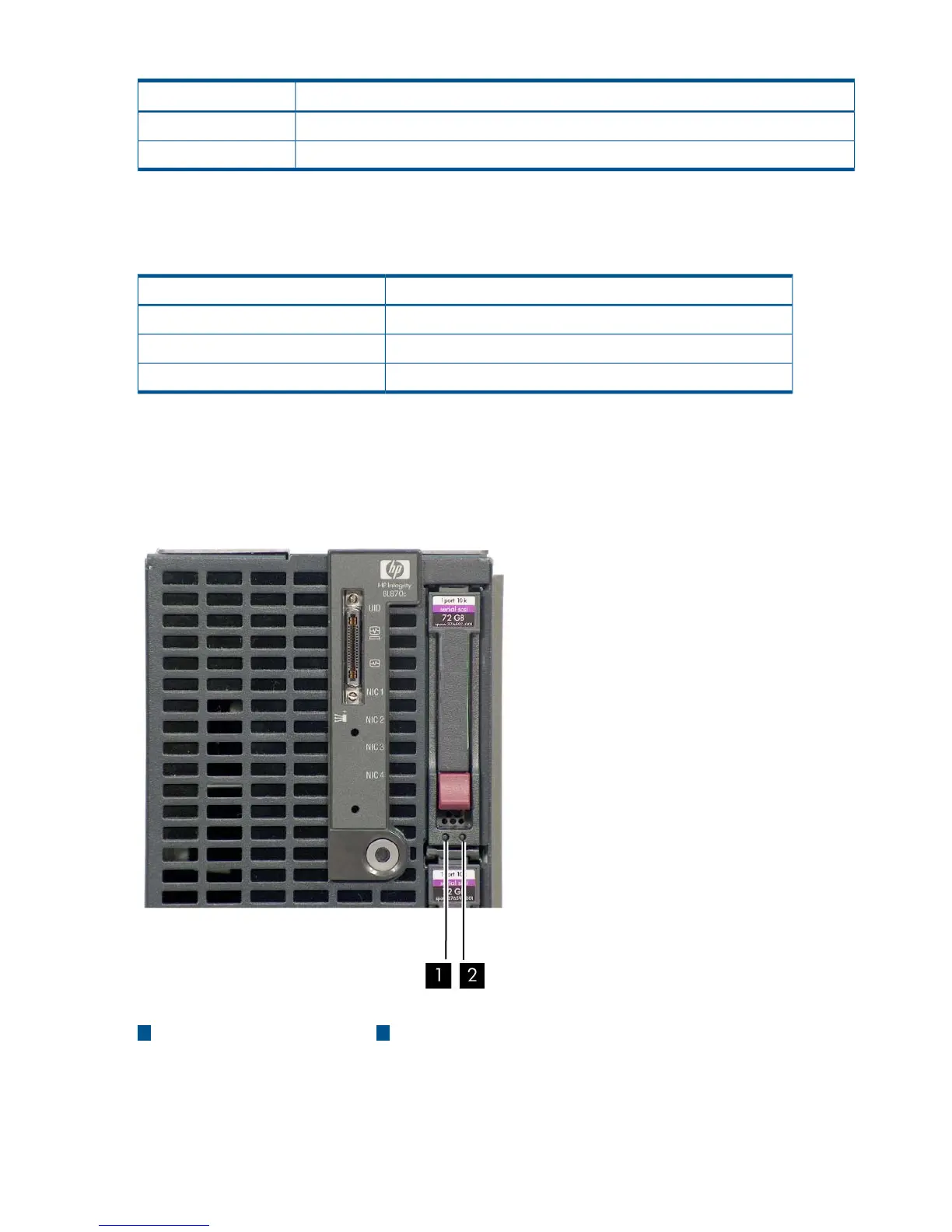

Figure 38 SAS Disk Drive LEDs
21
Status LEDActivity LED
Table 19 details the functions of the hard disk drive LEDs.
96 Troubleshooting
