HP Integrity BL870c User's & Service Guide

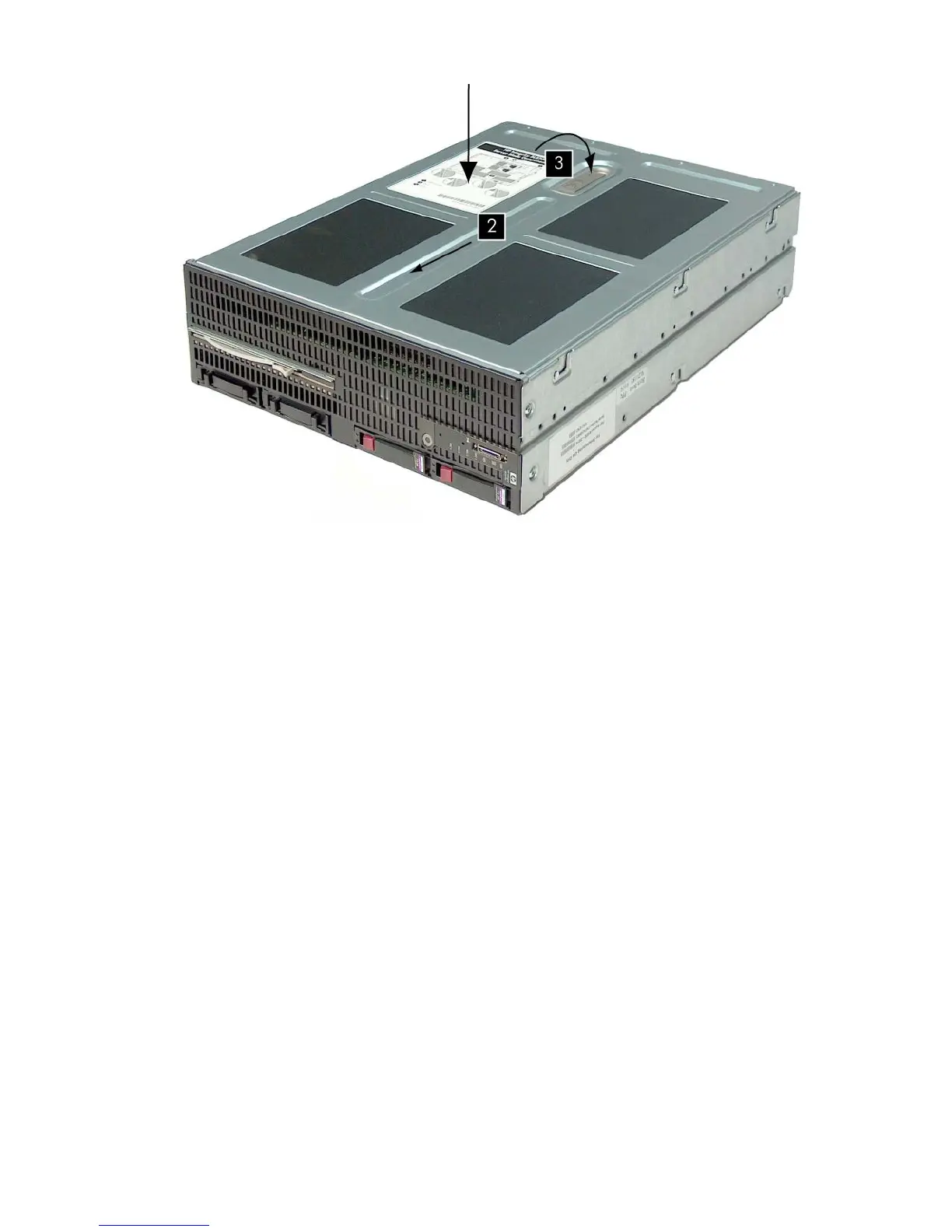

Figure 25 Replacing the Left Access Panel
4. Lock the access panel cam (if necessary) by turning the cam clockwise with the Torx T–15 or
flat head screwdriver.
Installing and Powering On the Server Blade
This section explains how to install the HP Integrity BL870c server blade into a standard c–Class
enclosure and power it on. When you install the server blade into the enclosure, by default, the
server blade powers up to standby mode.
Installing the Server Blade Into the Enclosure
The following procedure shows how to install the server blade into a standard c–Class enclosure.
1. Remove the two half-height filler panels from the enclosure.
2. Remove the half-height blade shelf (if necessary).
3. Ensure the extraction lever is released (open) on the server blade.
4. Slide the server blade into the enclosure (1).
See Figure 26.
42 Installing the Server Blade Into the Enclosure
