NOTE: If you purchased an additional processor, the IPF Processor Install Toolkit is included
with the processor.
The server blade has a Torx T-15 screwdriver mounted on the inside of the access panel.
Installing a Hot-Plug SAS Disk Drive
Use the following procedures if the server blade has a disk drive blank installed and you need to
install a hot-plug SAS disk drive.
For a list of supported hard disk drives for the server blade, see: http://h18004.www1.hp.com/
products/blades/components/c-class-storage.html
1. Press the release buttons simultaneously as shown in Figure 9.
2. Pull the blank out of the drive bay.
Figure 9 Removing a SAS Disk Drive Blank
CAUTION: Always populate hard drive bays with a SAS disk drive or a disk drive blank.
Operating the server blade without a SAS disk drive or disk drive blank causes improper
airflow and cooling that can lead to thermal damage to the server blade.
To install a SAS disk drive:

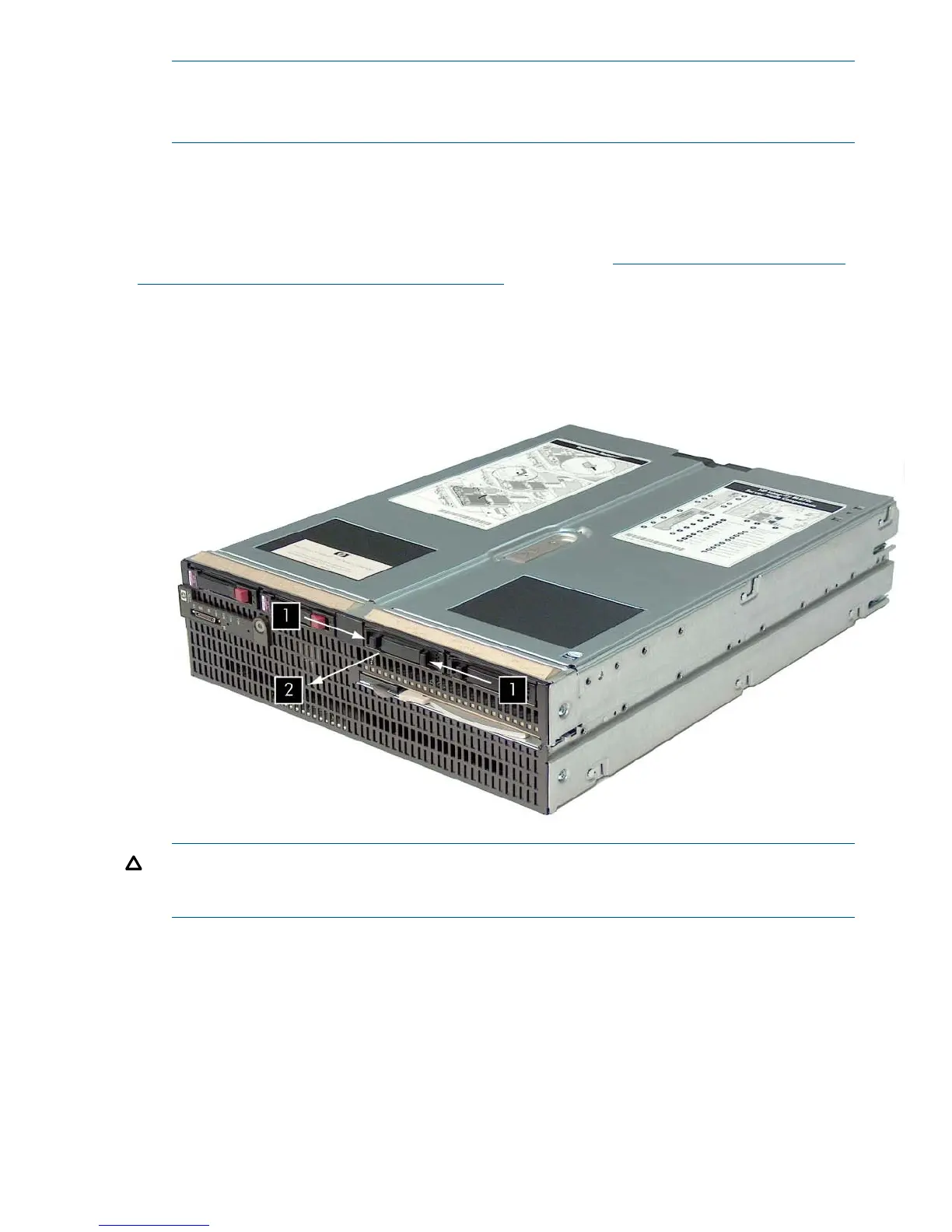

1. Slide the drive into the cage until it is fully seated (1).
See Figure 10.
28 Installing the Server Blade Into the Enclosure
