Figure 24 Replacing the Right Access Panel
4. Lock the access panel cam (if necessary) by turning the cam clockwise with the Torx T–15 or
flat head screwdriver.
Replacing the Left Access Panel
To replace the left access panel:
1. Make sure the left access panel latch is in the open position (sticking up).

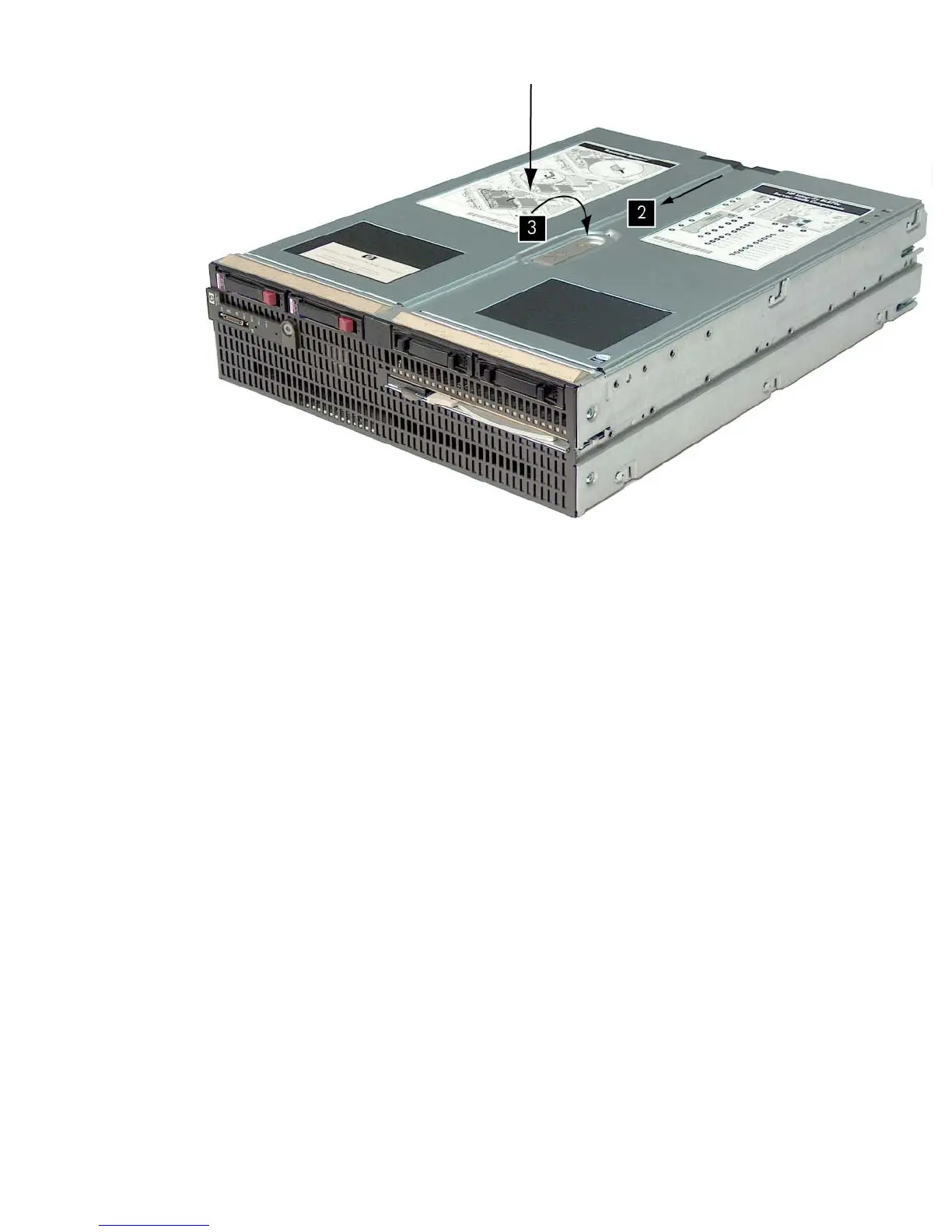

See Figure 25 (page 42).
2. Place the access panel onto the server blade by lining up the posts on each side of the access
panel with the keyways on the server blade chassis (1).
3. Slide the access panel toward the front of the server blade (2), and push down on the access
panel latch until it is flush with the access panel (3).
Installing Additional Components 41
