board. Heatsinks, processor metal frames, and bolster plates are part of the mechanical attachment
requirements for the processors and the zx2.
Enclosure Information
This document covers only the BL870c server blade, and does not include specific server blade
enclosure information. For server blade enclosure information, see the HP website at:
http://h71028.www7.hp.com/enterprise/cache/316735-0-0-0-121.html.
Controls, Ports, and LEDs
This section describes the controls, ports, and LEDs found on the front and rear panels of the HP
Integrity BL870c server blade. For more information on LED functions and descriptions, see
Chapter 5: “Troubleshooting” (page 89).
Front Panel
The server blade has seven LEDs, one power button, two reset buttons, four SAS disk drives, and
one front panel port that accepts the SUV cable for configuration and troubleshooting. Figure 4
shows the LEDs, ports, and controls on the front panel of the server blade.

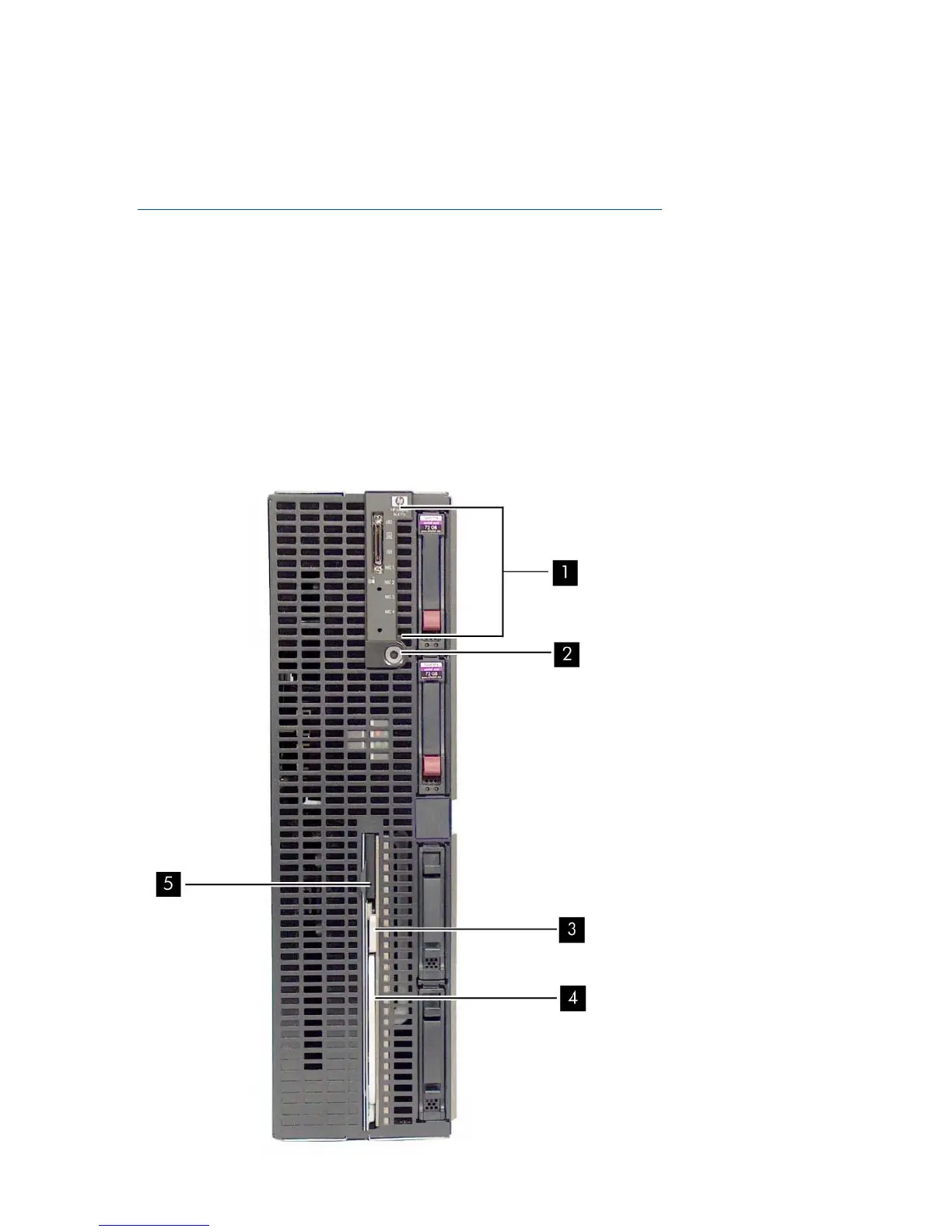

Figure 4 Server Blade Front View
20 Overview
