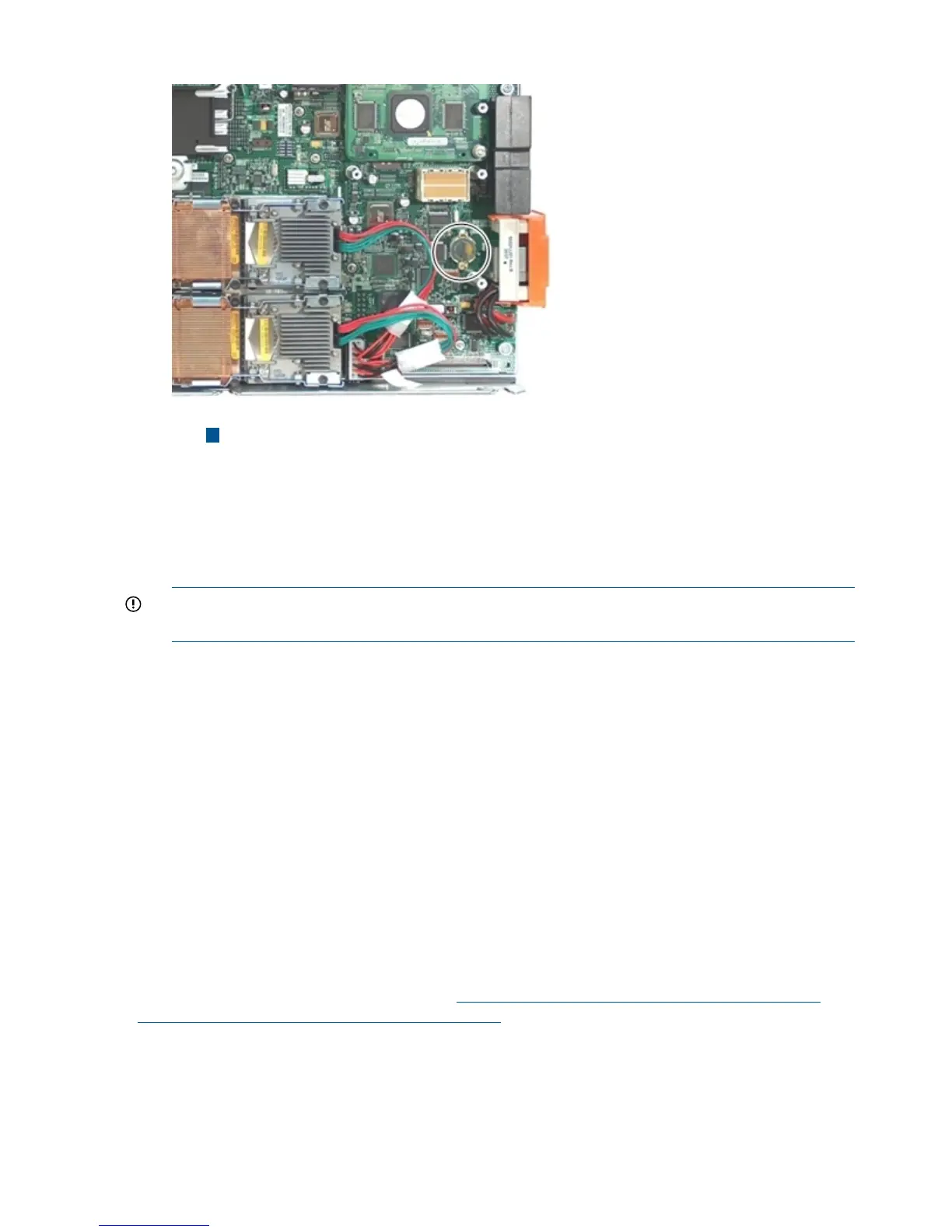

Figure 60 Server Battery Location
1
Server battery on the
system board
5. Dispose of the server battery by following your local battery disposal requirements.
Replacing the Server Battery
To replace the server battery:
1. Install the new server battery by gently pushing the battery into the socket.
IMPORTANT: Ensure that the new battery is fully seated and that all locking tabs are correctly
engaged.
2. Install the right access panel.
See “Replacing the Right Access Panel” (page 117).
3. Place the server blade back into the enclosure and power it on.
See “Replacing the Server Blade in the Enclosure” (page 115).
Removing and Replacing the Mezzanine Cards
The following procedures describe how to remove and replace the three mezzanine cards available
on the server blade.
The server blade supports up to three PCIe mezzanine cards. Slot 1 is a PCIe x4 slot, and slots 2
and 3 are PCIe x8 slots.
Removing a Mezzanine Card
Use the following procedure to remove a mezzanine card from the server blade. To determine
which card you are replacing, see Figure 61 (page 135).For more information regarding the cards
supported by the BL870c server blade, see http://h71028.www7.hp.com/enterprise/cache/
316682-0-0-0-121.html?jumpid=reg_R1002_USEN.
1. Power off the server and remove it from the enclosure.
See “Preparing the Server Blade for Servicing” (page 113).
2. Remove the right access panel.
See “Removing the Right Access Panel” (page 116).
3. Unscrew the thumbscrews holding the card you are replacing.
134 Removing and Replacing Components
