53
Blade extraction handle
release button
1
Front panel LEDs Server blade information
label
2
Power button
4
Blade extraction handle
CAUTION: Disconnect the local I/O cable from the I/O port when not in use. The connector is
not designed to provide a permanent connection.
Front Panel LEDs and Controls
The server blade contains seven LEDs on the front panel that indicate the server status. The front
panel also contains the power button, the SUV port, and pinhole controls.
Figure 5 shows the locations of the front panel LEDs and controls.

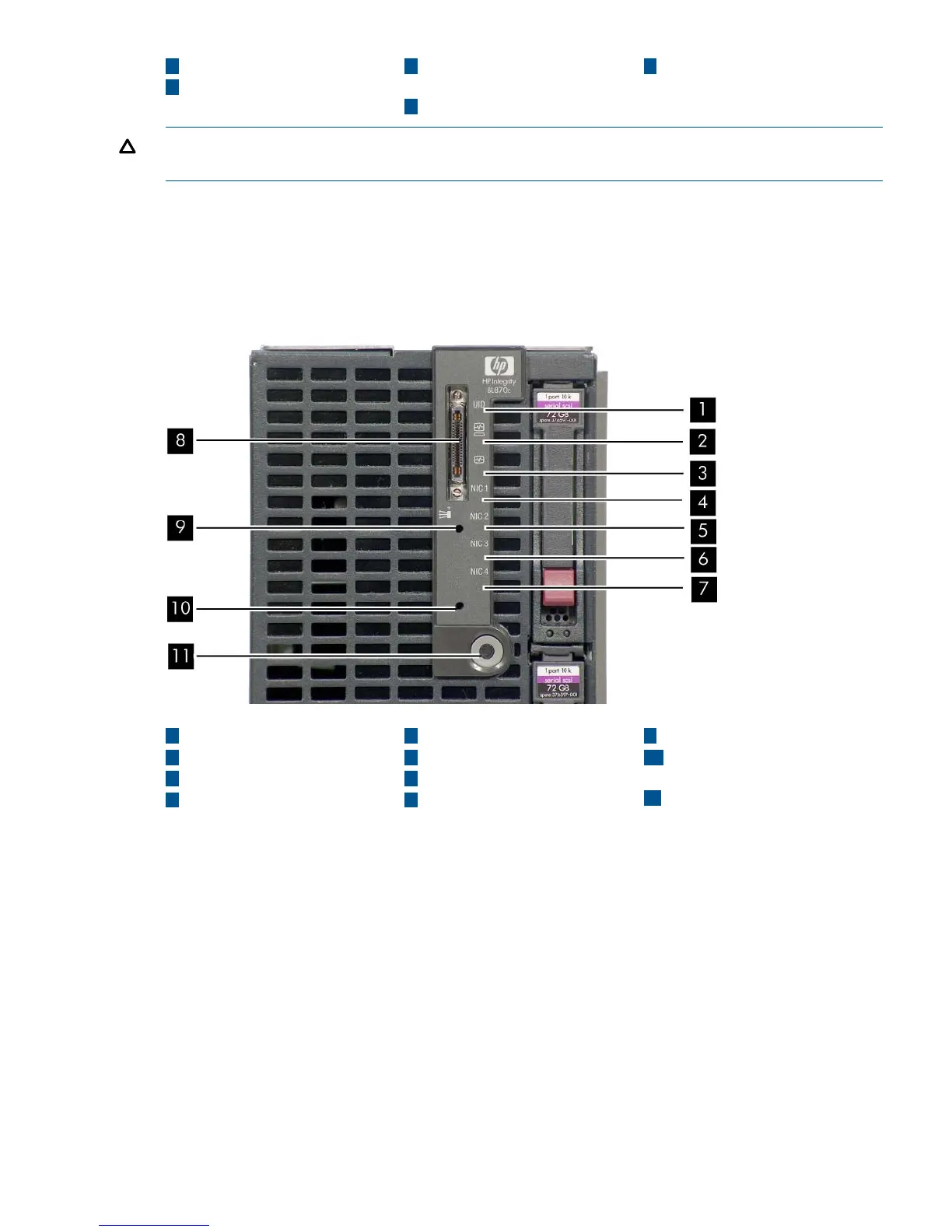

Figure 5 Front Panel LEDs and controls on the BL870c Server Blade
9
Init (ToC) pinhole button
5
NIC 2 LED
1
UID LED
2
Server health LED
10
iLO 2 MP reset pinhole
button
6
NIC 3 LED
73
NIC 4 LEDInternal health LED
11
Power button
84
SUV cable portNIC 1 LED
For more information regarding the front panel LEDs, see “Front Panel LEDs (page 94).
SAS Disk Drive LEDs and Controls
There are four SAS disk drives on the BL870c server blade. They have identical LEDs that show
the drive status.
For locations of the SAS disk drive LEDs, see Figure 6.
Controls, Ports, and LEDs 21
