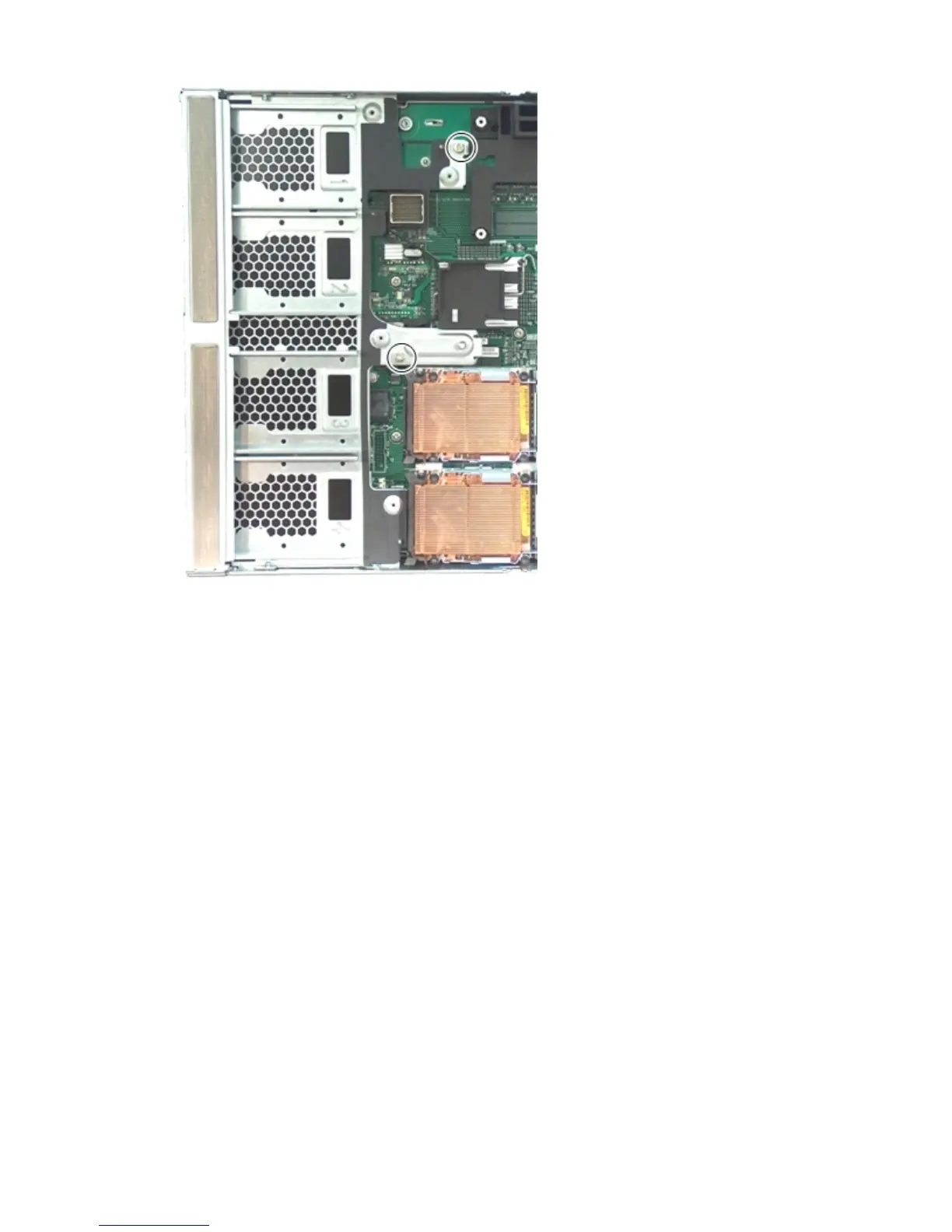

Figure 59 Removing the Front Panel
7. Remove the front panel from the front of the server blade by pulling it straight off the front of
the server.
Replacing the Front Panel
To install the new front display assembly into the server blade:
1. Slide the front panel straight into the server blade.
2. Tighten the two captive thumbscrews that hold the front panel to the system board.
3. Attach the front panel to the front of the server blade by installing the four screws with the
Torx T-15 screwdriver.
See Figure 58 (page 131).
4. Install the SAS backplane.
See “Replacing the SAS Backplane” (page 130).
5. Install the access panel.
See “Replacing the Right Access Panel” (page 117).
6. Install the SAS disk drives and/or drive blanks.
See “Replacing a SAS Disk Drive” (page 112).
7. Place the server blade back into the enclosure and power it on.
See “Replacing the Server Blade in the Enclosure” (page 115).
Removing and Replacing the Server Battery
The following procedures describe how to remove and replace the server battery on the system
board of the server blade.
132 Removing and Replacing Components
