HP Integrity BL870c - Server Blade Connection; Connecting to a Server Blade iLO 2 Using the Console Serial Port

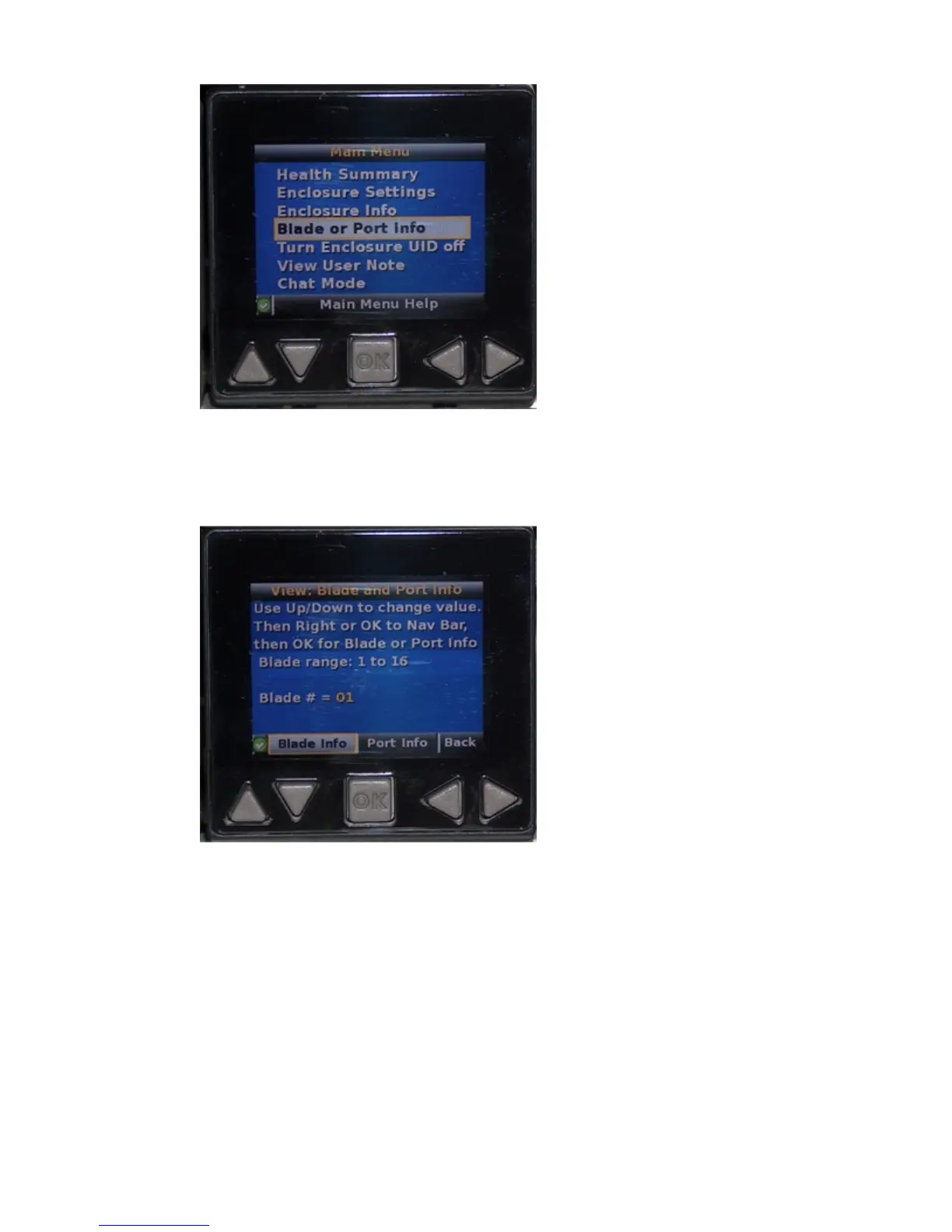

Figure 27 Main Menu of the Front Display Panel
3. Press OK.
The View Blade and Port Info screen displays on the front display panel. See Figure 28.
Figure 28 The View Blade and Port Info Screen
4. Using the left/right arrows, highlight Blade Info on the bottom of the front display panel.
5. Follow the onscreen directions to select the appropriate server blade, and press OK.
The View Blade Info screen displays. See Figure 29.
Accessing the Integrated Lights Out 2 Management Processor 45
