2. Release two tabs (callout 1), and then remove the roller (callout 2).
IMPORTANT: Use a damp, lint-free cloth to gently clean the rollers.
NOTE: When handling the rollers or pads, avoid touching the spongy surfaces. Skin oils and
ngerprints on a roller surface can cause print-quality problems.
Reinstallation tip: Reverse the removal steps to install the assembly.

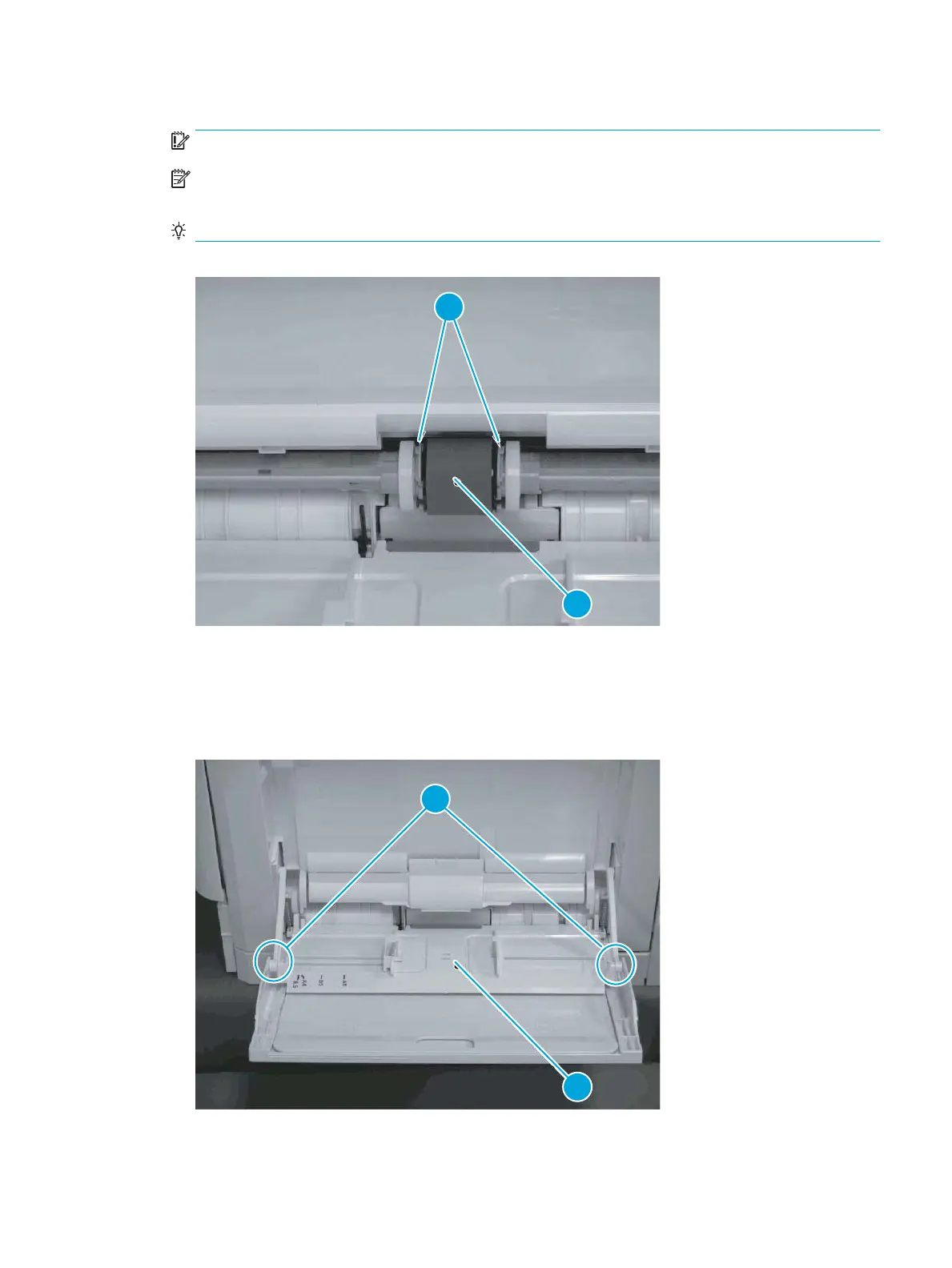

Figure 2-118 Remove the roller
Step 2: Clean the separation pad assembly
1. Open Tray 1, careful release two retainer arms (callout 1), and then move the lift plate (callout 2) up and
out of the way.
Figure 2-119 Move the lift plate out of the way
