Clean the Tray 2-X rollers
CAUTION: Removing and reinstalling the separation roller, and reinstalling the pick and feed roller assembly
requires specialized tools. These tools are provided in a replacement roller kit. If these tools are not available,
the rollers should not be removed and cleaned.
Step 1: Clean the Tray 2-X rollers
1. Open the paper tray for which the rollers will be replaced.

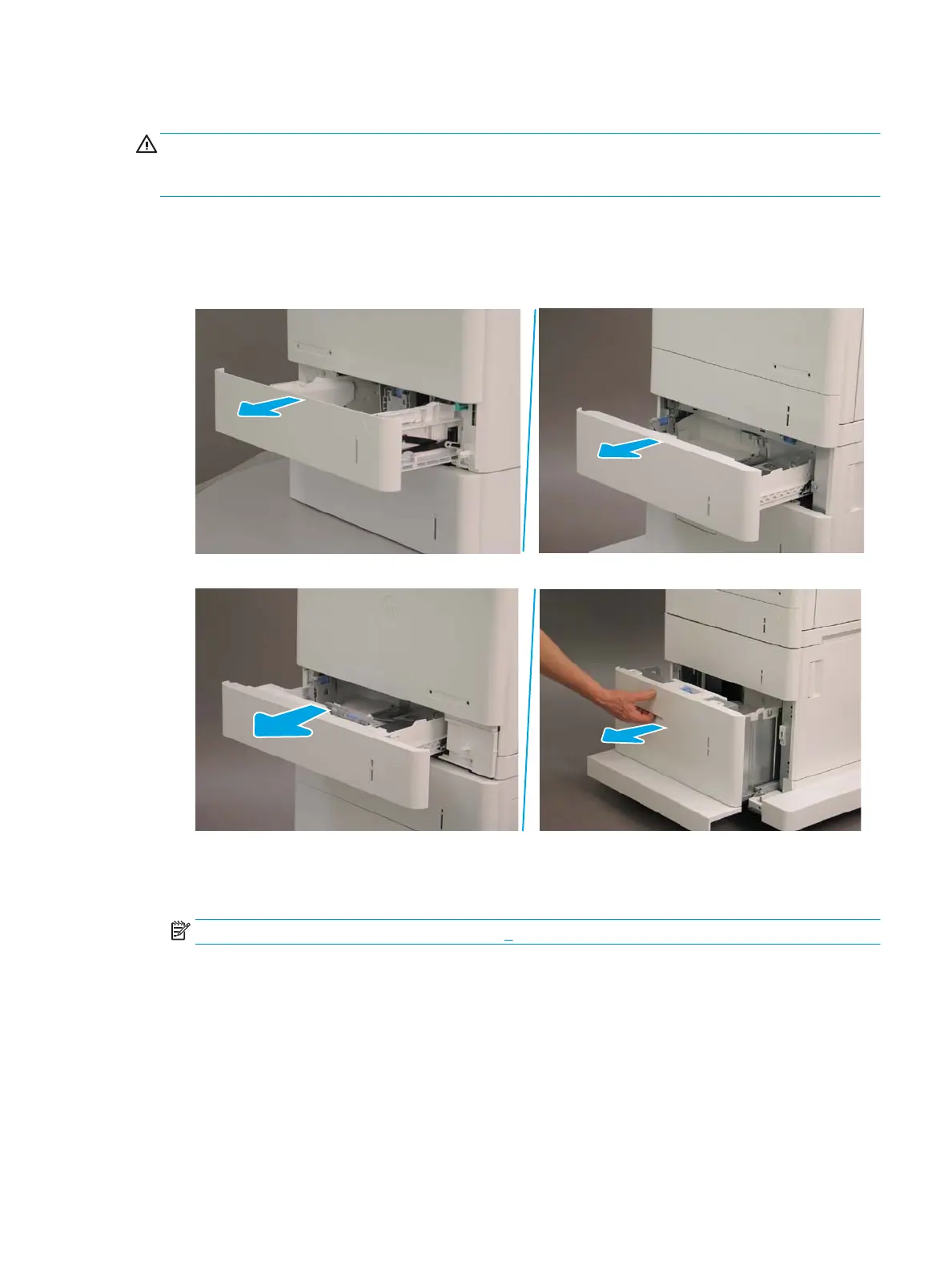

Figure 2-122 Open the tray (M607/M608/M609)
Figure 2-123 Open the tray (M631/M632/M633)
2. M607, M608, and M609 Tray 2 rollers only: At the rear of the printer, do the following:
M631, M632, and M633 Tray 2 rollers only: At the right side of the printer, do the following:
NOTE: When this step is complete, go to step 5.
a. Open the rear cover.
b. Raise the transfer assembly.
ENWW Clean the printer 287
