Cartridge positions during load and unload
The following diagrams show the positions of importance during load and unload.

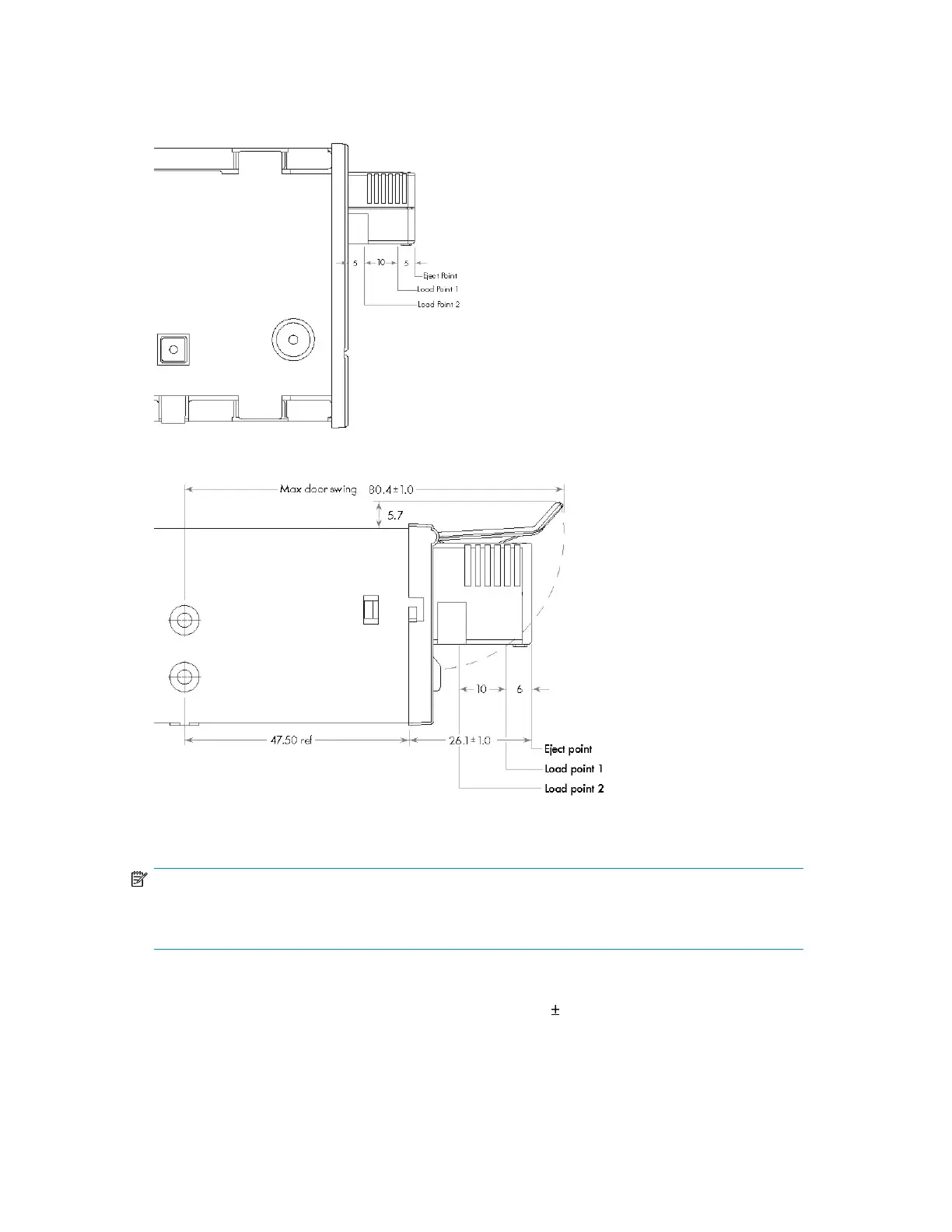

Figure 11 Full-height drives: load and unload positions
.
Figure 12 Half-height drives: load and unload positions
.
NOTE:
Drives for library use the automation front panel, which has no door. The illustration shows a standalone
drive.
Cartridges are ejected to this point, which is 26.1 mm beyond the front of the
mechanism. The position tolerance is 1 mm. The automation controller cannot
configure the location of this position.
Eject Point
Volume 1: hardware integration 75
