Static Virtual LANs (VLANs)
Static VLAN Operation
Red VLAN
Blue VLAN
Red Server
ProCurve
Switch
Blue Server
ProCurve
Switch
Red
VLAN
Red
VLAN
Blue
VLAN
Blue
VLAN
Red
VLAN
VLAN tagging
enables the Link to
carry Red VLAN and
Blue VLAN Traffic
Blue
VLAN
Non-802.1Q
Switch
The legacy (non-802.1Q
compliant) switch requires a
separate link for each VLAN.

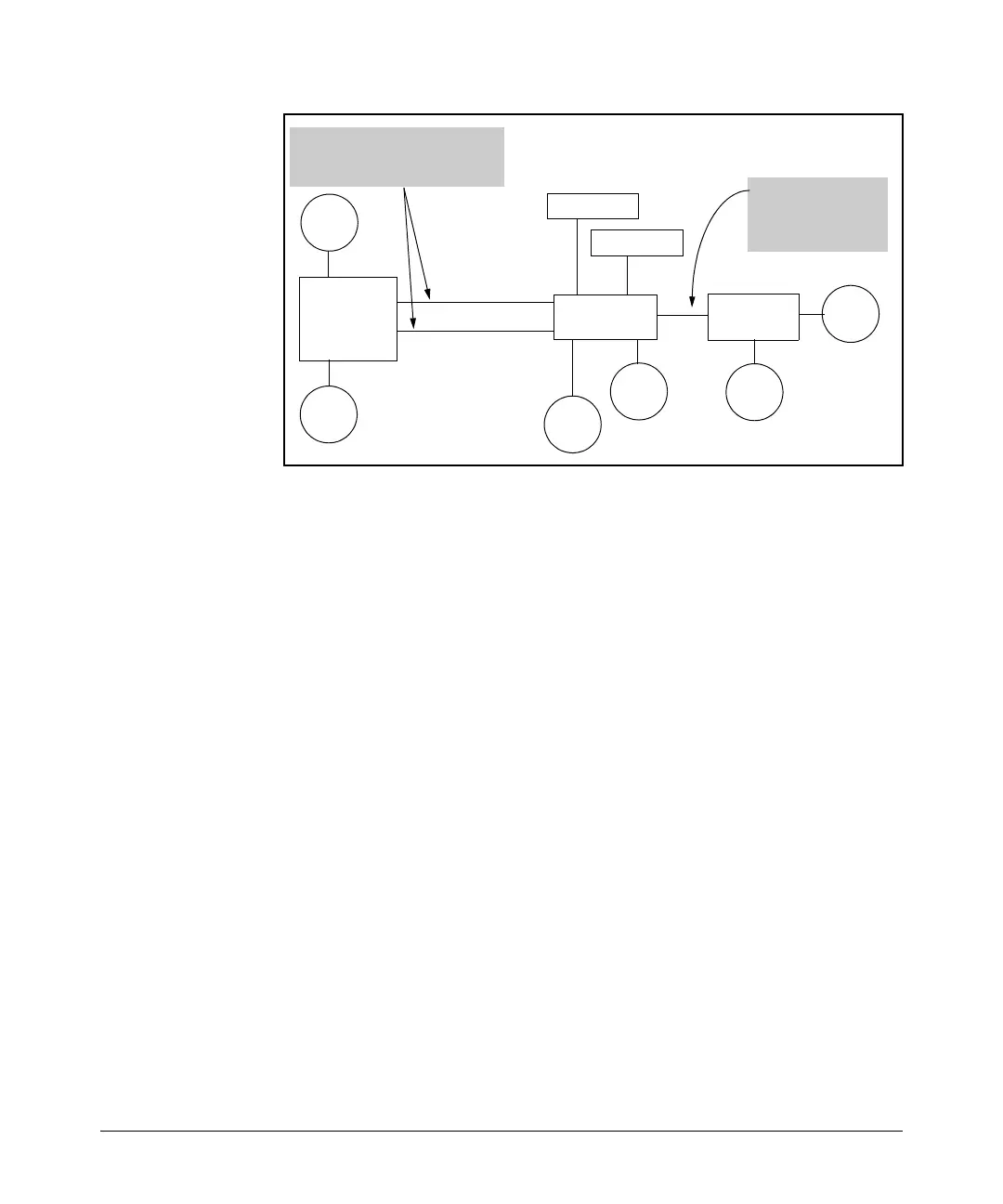

Figure 2-5. Example of Tagged and Untagged VLAN Technology in the Same
Network
For more information on VLANs, refer to:
■ “Overview of Using VLANs” (page 2-43)
■ “Menu: Configuring VLAN Parameters (page 2-21)
■ “CLI: Configuring VLAN Parameters” (page 2-21)
■ “Web: Viewing and Configuring VLAN Parameters” (page 2-37)
■ “VLAN Tagging Information” (page 2-38)
■ “Effect of VLANs on Other Switch Features” (page 2-51)
■ “VLAN Restrictions” (page 2-53)
Per-Port Static VLAN Configuration Options
The following figure and table show the options you can use to assign
individual ports to a static VLAN. Note that GVRP, if configured, affects these
options and VLAN behavior on the switch. The display below shows the per-
port VLAN configuration options. Table
2-4 briefly describes these options.
