Static Virtual LANs (VLANs)
Static VLAN Operation
Example of Per-Port
VLAN Configuration
Example of Per-Port
with GVRP Disabled
VLAN Configuration
(the default)
with GVRP Enabled
Enabling GVRP causes “No” to display as “Auto”.

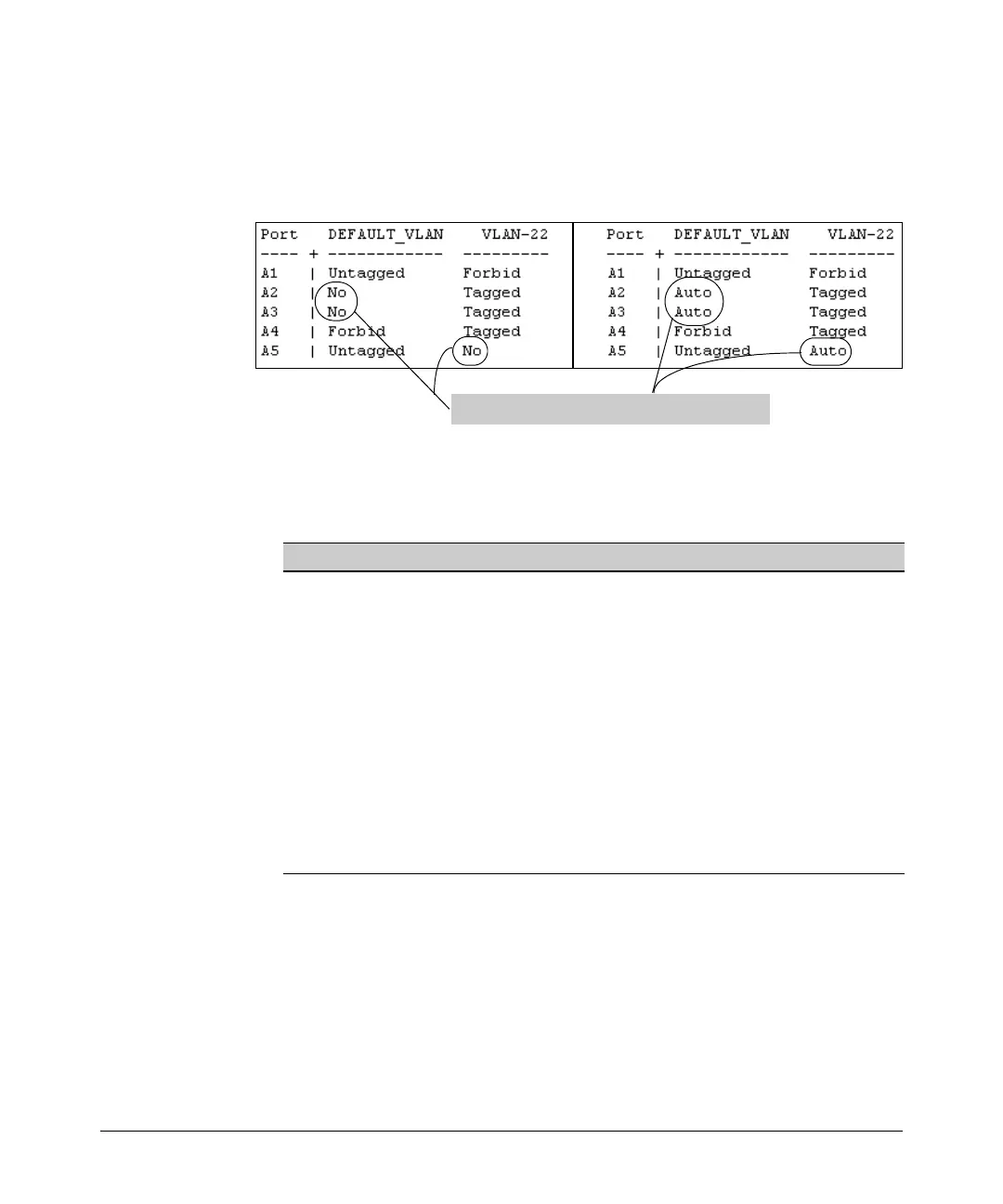

Figure 2-6. Comparing Per-Port VLAN Options With and Without GVRP
Table 2-4. Per-Port VLAN Configuration Options
Parameter Effect on Port Participation in Designated VLAN
Tagged
Allows the port to join multiple VLANs.
Untagged
Allows VLAN connection to a device that is configured for an untagged
VLAN instead of a tagged VLAN. A port can be an untagged member of
only one port-based VLAN. A port can also be an untagged member of only
one protocol-based VLAN for any given protocol type. For example, if the
switch is configured with the default VLAN plus three protocol-based
VLANs that include IPX, then port 1 can be an untagged member of the
default VLAN and one of the protocol-based VLANS.
No
No
: Appears when the switch is not GVRP-enabled; prevents the port from
- or -
joining that VLAN.
Auto
Auto: Appears when GVRP is enabled on the switch; allows the port to
dynamically join any advertised VLAN that has the same VID
Forbid
Prevents the port from joining the VLAN, even if GVRP is enabled on the
switch.
2-12
