HP StorageWorks 1/8 User Manual

4. Remove the SAS cable from a SAS drive or the parallel SCSI cable and terminator from a parallel
SCSI drive (see Figure 74).

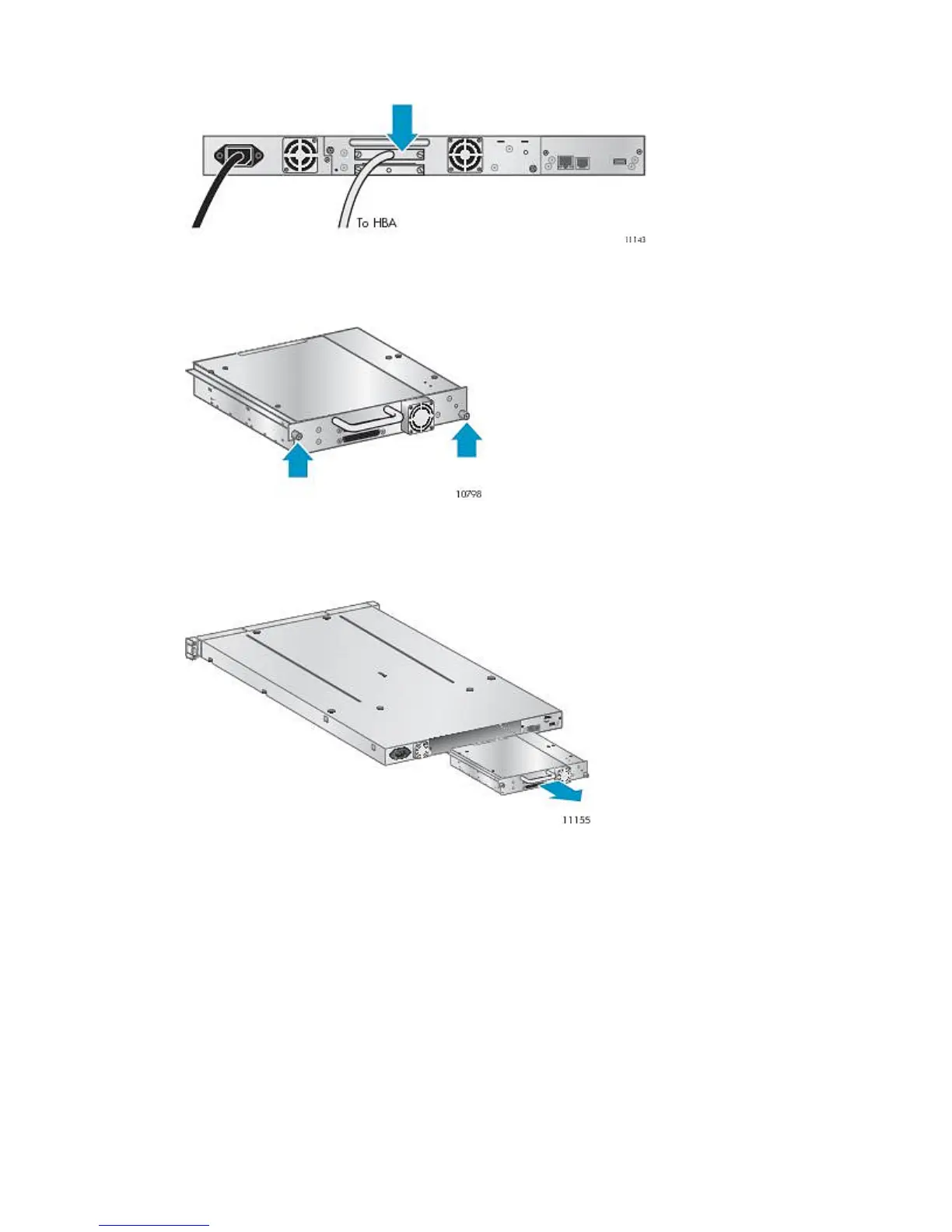

Figure 74 Parallel SCSI cable
.
5. Loosen the blue captive thumbscrews on the drive (see Figure 75).
Figure 75 Captive screws on the tape drive
.
6. Pull straight back on the tape drive handle to remove the tape drive from the Autoloader (see
Figure 76).
Figure 76 Removing the tape drive
.
To replace a tape drive:
1. Before installing the new drive, inspect the connectors on the tape drive. Ensure that the connectors
are intact, free of any foreign objects, and have no cracks or deformed or bent contacts.
HP StorageWorks 1/8 G2 Tape Autoloader User and service guide 159

HP StorageWorks 1/8 Specifications

General

Number of Slots	8
Form Factor	1U
Interface	SCSI / SAS
Drive Type	LTO
Compatibility	Compatible with HP and non-HP servers
