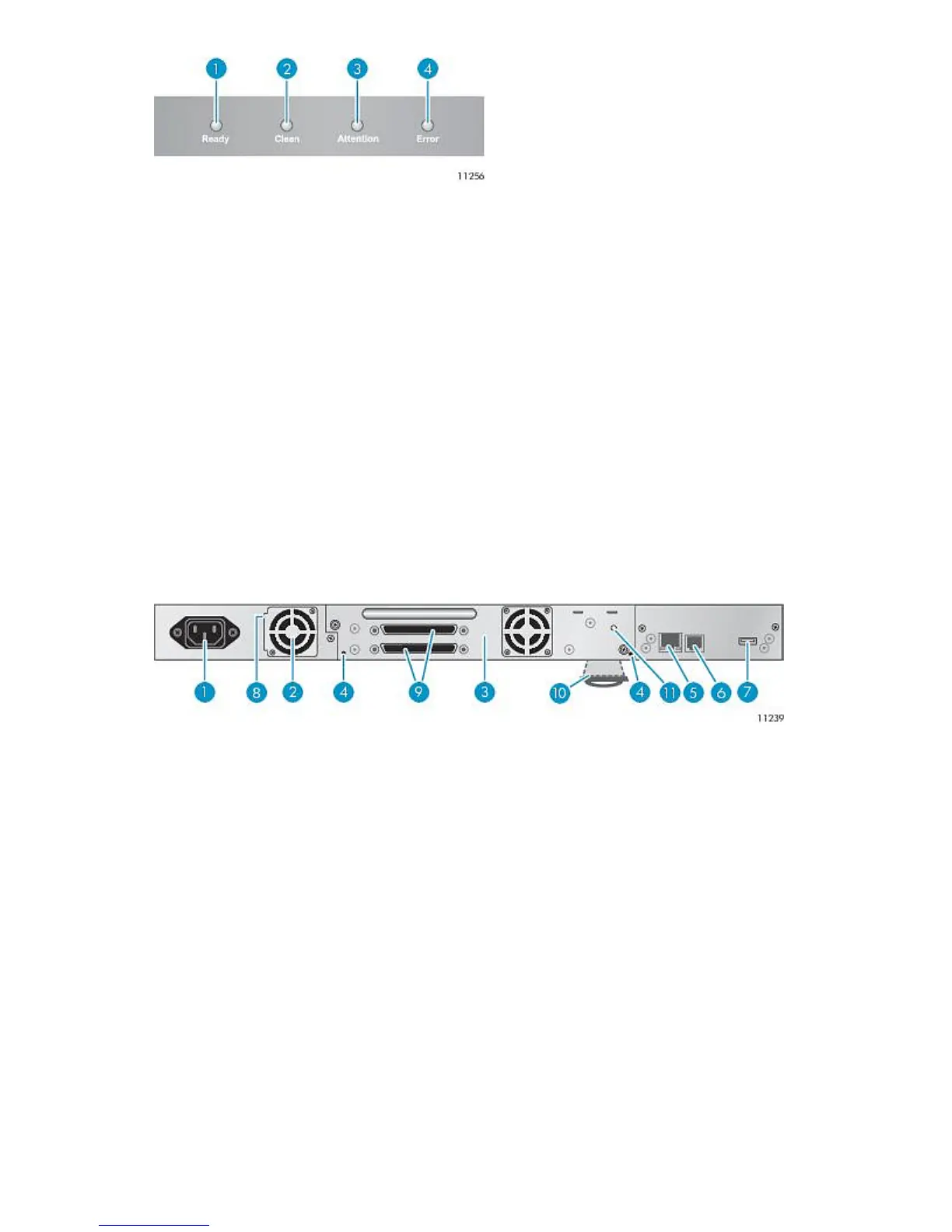

Figure 2 Operator control panel LEDs
.
Ready. Illuminated when power is on. Blinking when there is tape drive or robotics activity.Green1.
Clean. Illuminated when the tape drive has determined that a cleaning cartridge should be
used. Cleaning is only necessary when the device directs you to do so. Additional cleaning
is not necessary.
Amber2.
Attention. Illuminated if the device has detected a condition that requires attention by the
operator.
Amber3.
Error. Illuminated if an unrecoverable error occurs. A corresponding error message displays
on the LCD screen (see “Troubleshooting” on page 107 for more information).
Amber4.
Back panel overview
The back panel provides access to the drive interface connectors, the tape drive, the power connector,
the Ethernet, serial and USB ports, and the magazine release holes as shown in Figure 3, Figure 4,
and Figure 5.
Figure 3 Back panel overview with parallel SCSI tape drive
.
2. Fan vent1. Power connector
4. Magazine release hole3. Tape drive
6. Serial port (Factory use only)5. Ethernet port
8. Shipping lock storage location7. USB port
10. Pull-out tab containing the serial number and other
product information.
9. 68–pin parallel SCSI connector
11. Tape drive LED
HP StorageWorks 1/8 G2 Tape Autoloader User and service guide 23
