• “Viewing logs (Support > Autoloader Error Log)” on page 104
• “Downloading a support ticket (Support > Download Support Ticket)” on page 105
LED indicators
The operator panel includes four LEDs that provide a summary of the device status as detailed in
Figure 57.

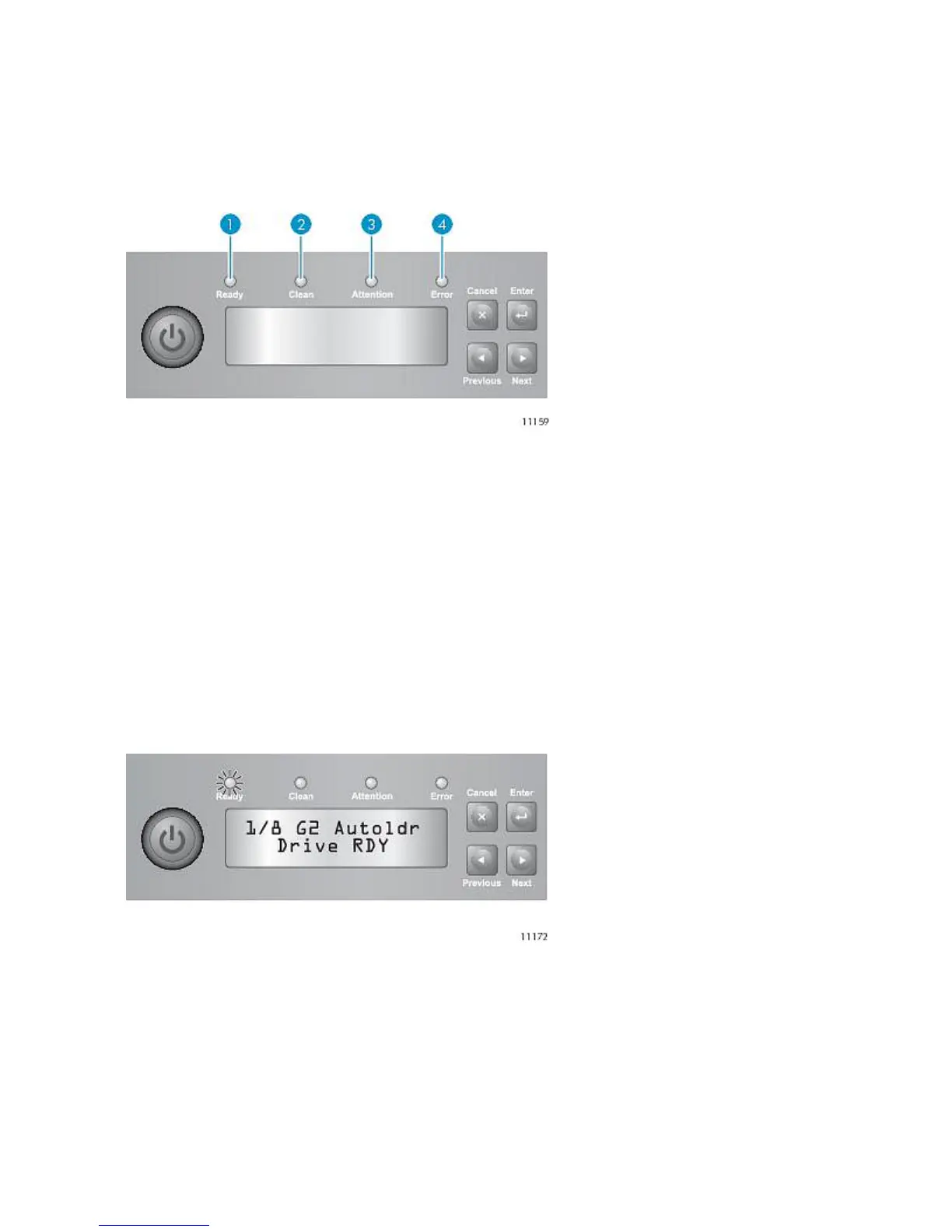

Figure 57 LEDs
.
Ready. Illuminated when power is on. Blinking during tape drive or robotics activity.Green1.
Clean. Illuminated when a cleaning cartridge should be used.Amber2.
Attention. Illuminated if the device has detected a condition that requires attention.Amber3.
Error. Illuminated if an unrecoverable error occurs. A corresponding error message
displays on the LCD screen.
Amber4.
Autoloader home screen
The first line of the Home screen displays the device's product name as shown in Figure 58. The
second line displays a brief status message.
Figure 58 Home screen
.
Operating the Tape Autoloader82
