2. Pull straight back on the tape drive handle to remove the tape drive from the Autoloader (see
Figure 83).

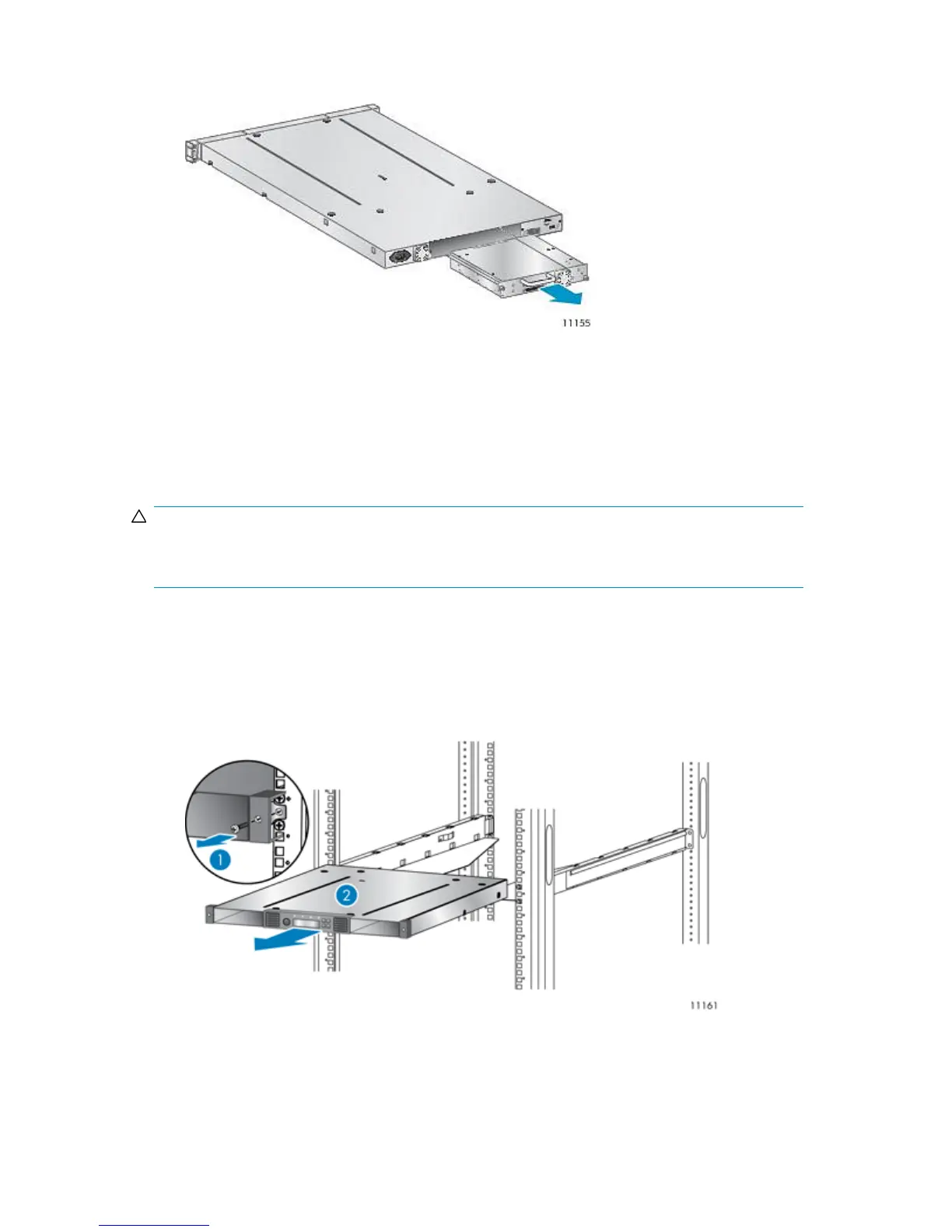

Figure 83 Removing the tape drive
.
Removing the base chassis
You will need a #2 Phillips screwdriver to remove and replace the base chassis assembly from the
rack or cover.
CAUTION:
Lift the Autoloader from the side edges. Lifting the Autoloader from the magazine or tape drive
openings can damage the Autoloader.
To remove the base chassis from the rack or table top conversion cover:
1. Obtain adequate assistance to lift and stabilize the Autoloader during removal and replacement.
2. If the Autoloader is mounted in a rack or tabletop conversion cover, from the front of the Autoloader
(see Figure 84, 1) loosen the screws inside the left and right front bezel (these are captive screws
and cannot be removed), then 2) slide the Autoloader out of the rack or cover using assistance.
Figure 84 Removing the base chassis from the rack
.
HP StorageWorks 1/8 G2 Tape Autoloader User and service guide 165

HP StorageWorks 1/8 Specifications

General

Number of Slots	8
Form Factor	1U
Interface	SCSI / SAS
Drive Type	LTO
Compatibility	Compatible with HP and non-HP servers
