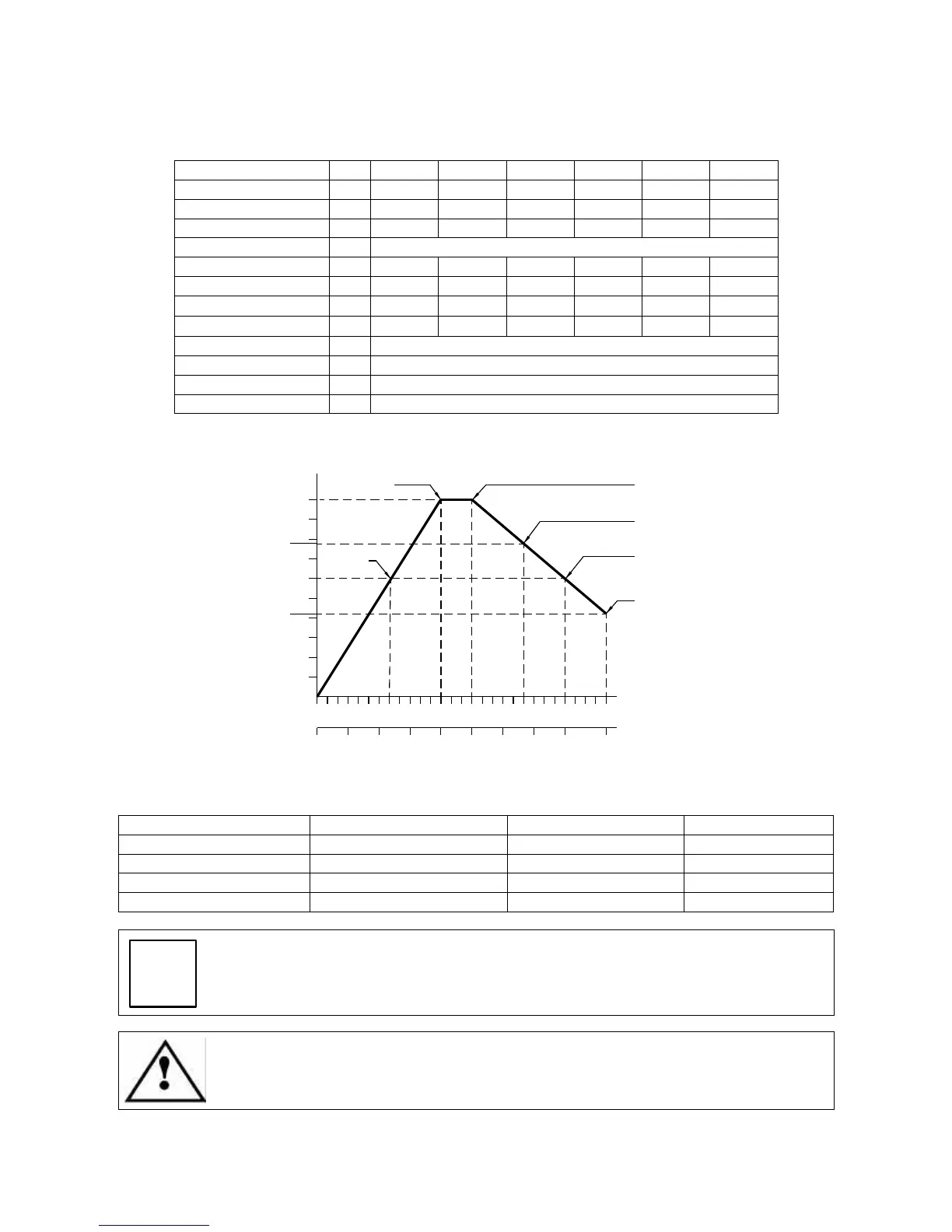

7.2.3 Specifications and performance of ES915 4 Pole, 5 kW units
Rated voltage (*)
V 225 ±10% 380 ±10% 380 ±10% 380 ±10% 380 ±10% 380 ±10%
Rated frequency
Hz 233 400 500 667 800 933
Rated speed
rpm 7000 12000 15000 20000 24000 28000
Rated power
kW 3 5 5 3.9 3 2,1
Duty type
S1
Rated torque
Nm 4 4 3.2 1.7 1.2 0.7
Rated current
A 12 12 10,5 9.2 7 4
Rated efficiency η
0.8 0.8 0.8 0.8 0.8 0.8
Power factor cos ϕ
0.85 0.85 0.85 0.8 0.8 0.75
Number of poles
4
Insulation class
F
Type of cooling
Cooling fan
Weight
kg ~ 21
[(*) from inverter]
kW (S1)
Hz
0
rpm x 1000
3 6 9 12 15 18 21 24 28
2,1
3,9
5
0
100
200 300
400
500
600
700
933
4
1
3
4 Nm
4 Nm
3,2 Nm
1,7 Nm
0,7 Nm
800
1,2 Nm
2
Notes:
TOOL HOLDER FRONT BEARINGS REAR BEARINGS MAX SPEED
ISO30 STEEL STEEL 20000rpm / 667Hz
ISO30 CERAMIC STEEL 24000rpm / 800Hz
ISO30 CERAMIC CERAMIC 24000rpm / 800Hz
ISO30 CRONIDUR / CHROMEX CERAMIC 28000rpm / 933Hz
i
The 5 kW, 4 Pole motor is not available with configurable double voltage power
terminals.
The maximum continuous current inverter parameter must match the maximum
value of the rated current in the table above (also stated on the motor’s data
label).
