12.2.4.9 Gauge and shim kit for calibrating S1 and S4 sensors on HSK F63
electro-spindles (HSD code 3811H0110)
A
Shim for calibrating sensor S1 (0.04 mm)
B
Shim for calibrating sensor S4 (0.12 mm)
C
Shim for calibrating sensor S4 (0.16 mm)
D
Gauge for calibrating sensor S1 (14.29 mm)
E
Gauge for calibrating sensor S4 (14.13 mm)

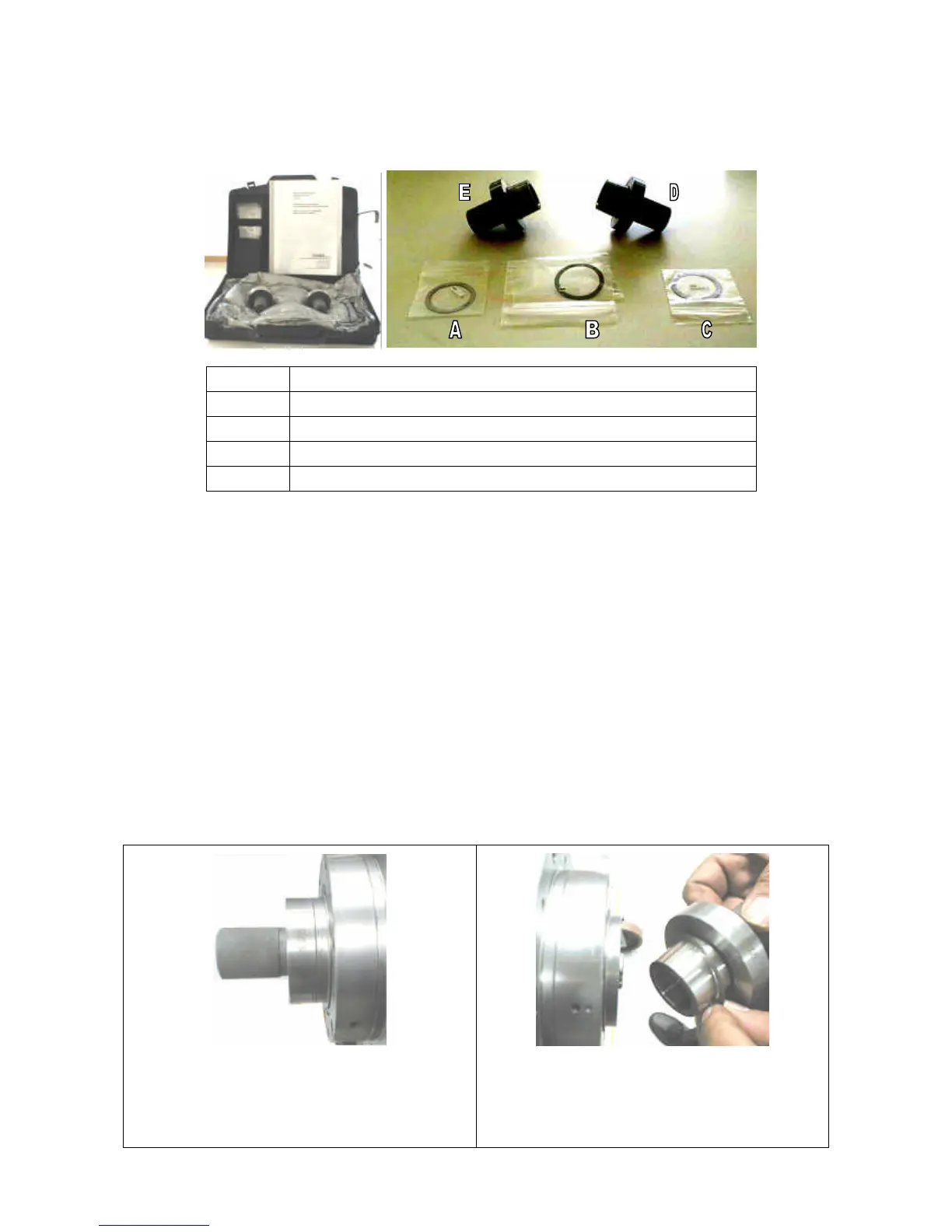

Figure 12.21 Gauge and shim kit for sensors on F63 electro-spindles, HSD 3811H0110
A gauge and shim kit, HSD code 3811H0110, is available for calibrating the sensors on HSK F63
electro-spindles.
This kit allows you to set HSK collets at exactly the right position for sensor calibration. This makes
calibration a lot quicker and more precise too. The gauges are manufactured to far greater
precision than standard tool holders.
It is possible to calibrate the sensors without this kit, proceeding as described in section 12.2.4.8 .
HSD nevertheless strongly recommends the use of it, given the importance that correct sensor
calibration has for machining safety.
The gauges and shims shown in Figure 12.21 have their size punched on them or marked on the
label of the bag containing them.
12.2.4.10 Calibrating sensors S1 and S4 on F63 HSK electro-spindles using
the 3811H0110 kit
Figure 12.22 Using the gauge as a tool holder,
with or without shims (Figure
12.23) according to the table in
sections 12.2.4.10.1 and
12.2.4.10.2
Figure 12.23 Placing a shim between the
faces of the gauge and spindle
shaft
