HSD ES919 NC - Specifications and Performance of ES919 2 Pole, 7 Kw Units

______HSD Technological equipment for Automation _____________________________________
5801H0017 Rev. 02 _________________________________________________________ 23/98

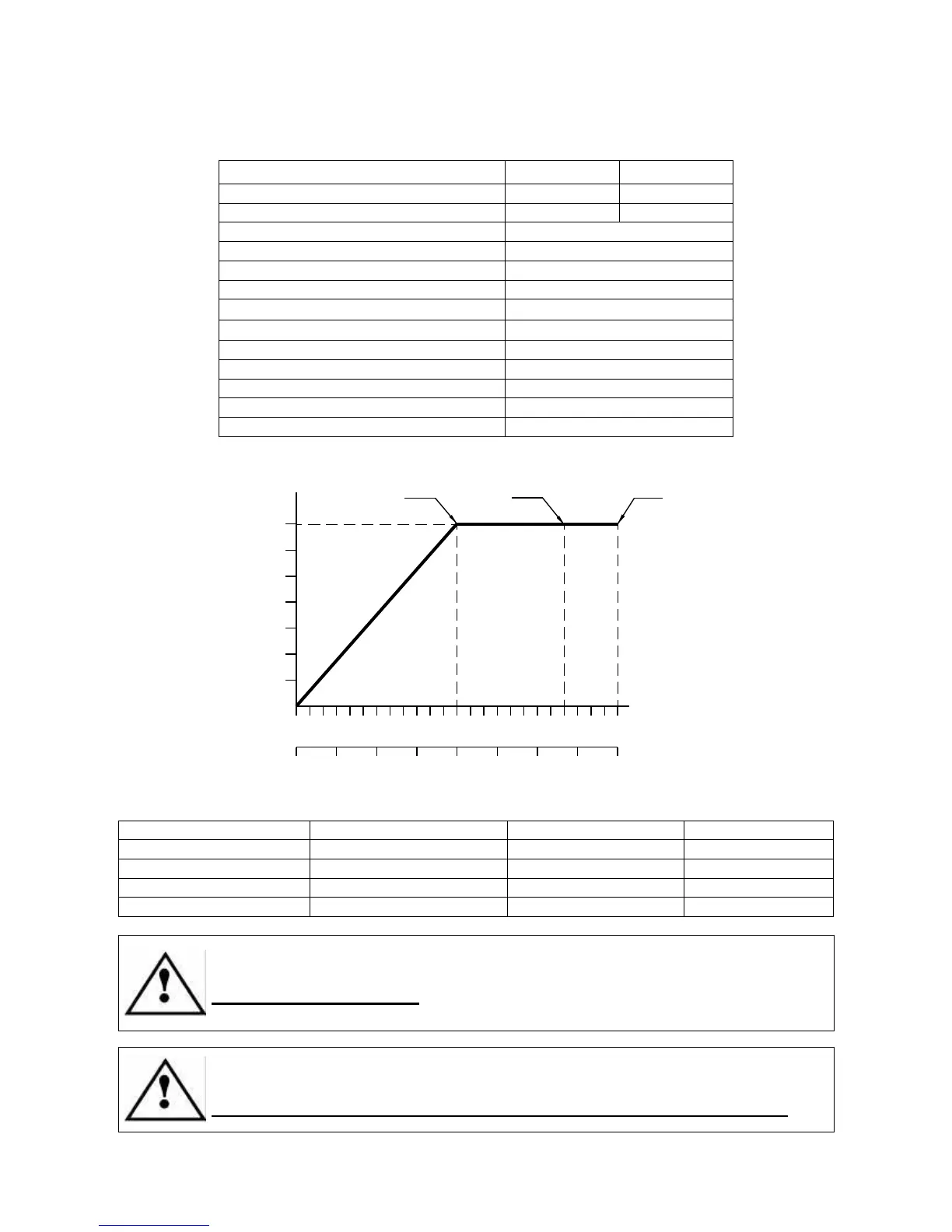

7.4.5 Specifications and performance of ES919 2 Pole, 7 kW units
Terminal connection type
Star Delta
Rated voltage (*)
380 V ± 10% 220 V ± 10%
Rated current
16 A 28 A
Rated speed
12000 rpm (200 Hz)
Rated power
7 kW
Duty type
S1
Rated torque
5.6 Nm
Rated efficiency η
0.8
Power factor cos ϕ
0.8
Number of poles
2
Insulation class
H
Type of cooling
Cooling fan
Weight of SHORT NOSE variant
~ 26 kg
Weight of LONG NOSE variant
~ 31 kg
[(*) from inverter]
k
W
(
S
1)
Hz
0
rpm x 1000
3 6 9 12 15 18 21 24
1
2
3
4
5
6
7
0
50
100 150
200
250
300
350 400
5
,
6
N
m
3
,
3
N
m
2
,
8
N
m
Notes:
TOOL HOLDER FRONT BEARINGS REAR BEARINGS MAX SPEED
ISO30 STEEL STEEL 20000rpm / 333Hz
ISO30 CERAMIC STEEL 24000rpm / 400Hz
ISO30 CERAMIC CERAMIC 24000rpm / 400Hz
ISO30 CRONIDUR / CHROMEX CERAMIC 28000rpm / 467Hz
The 7 kW 2 Pole motor is also available in a configurable double voltage
version.
Configurable models only: Check that the power terminals are correctly wired
for the supply voltage before installing the unit.
The maximum continuous current inverter parameter must match the rated
current value in the table above (also stated on the motor’s data label).
Select the right value depending on whether the connection is star or delta.
