HSD ES919 NC - Specifications and Performance of ES919 4 Pole, 7.5 Kw Units

______HSD Technological equipment for Automation _____________________________________
5801H0017 Rev. 02 _________________________________________________________ 26/98

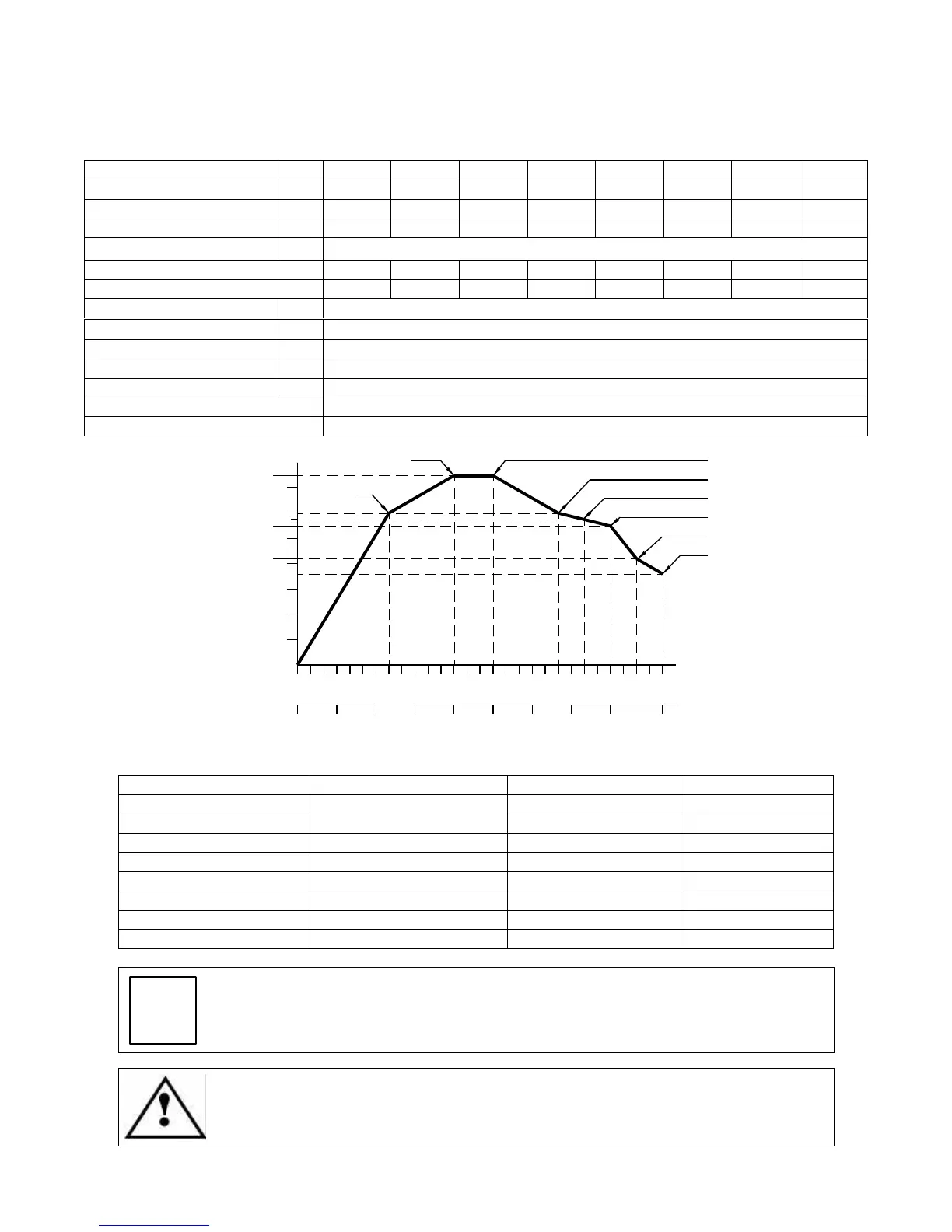

7.4.8 Specifications and performance of ES919 4 Pole, 7.5 kW units
Rated voltage (*)
V 225 ± 10% 380 ± 10% 380 ± 10% 380 ± 10% 380 ± 10% 380 ± 10% 380 ± 10% 380 ± 10%
Rated frequency
Hz 233 400 500 667 733 800 867 933
Rated speed
rpm 7000 12000 15000 20000 22000 24000 26000 28000
Rated power
kW 6 7.5 7.5 6 5.75 5.5 4.2 3.6
Duty type
S1
Rated torque
Nm 8.2 6 4.8 2.9 2.5 2.2 1.5 1.2
Rated current
A 25 20 17 15 13 13 10 11.5
Rated efficiency η
0,8
Power factor cos ϕ
0,8
Number of poles
4
Insulation class
F
Type of cooling
Cooling fan
Weight of SHORT NOSE variant
~ 26 kg
Weight of LONG NOSE variant
~ 31 kg
[(*) from inverter]
kW (S1)
Hz
0
rpm x 1000
3 6 9 12 15 18 21 24 28
1
2
3
4
5
6
7
0
100
200 300
400
500
600
700 933
4,2
7,5
8,2 Nm
6
N
m
4
,
8
N
m
2,9 Nm
2,2 Nm
800
5,5
1,5 Nm
5,5
2,5 Nm
1,2 Nm
Notes:
TOOL HOLDER FRONT BEARINGS REAR BEARINGS MAX SPEED
HSK F63 STEEL STEEL 18000rpm / 600Hz
HSK F63 CERAMIC STEEL 20000rpm / 667Hz
HSK F63 CERAMIC CERAMIC 22000rpm / 733Hz
HSK F63 CRONIDUR / CHROMEX CERAMIC 26000rpm / 867Hz
ISO30 STEEL STEEL 20000rpm / 667Hz
ISO30 CERAMIC STEEL 24000rpm / 800Hz
ISO30 CERAMIC CERAMIC 24000rpm / 800Hz
ISO30 CRONIDUR / CHROMEX CERAMIC 28000rpm / 933Hz
i
The 7.5 kW, 4 Pole motor is not available with configurable double voltage
power terminals.
The maximum continuous current inverter parameter must match the maximum
value of the rated current in the table above (also stated on the motor’s data
label).
