9.6.6 Configurable power terminals (optional)
On request, some models can
be provided with power
terminals that can be
configured either for delta or
star connections, for use with
rated voltages of 380 V or 220
V.
See section § 7 for details of
models available with
configurable power terminals.

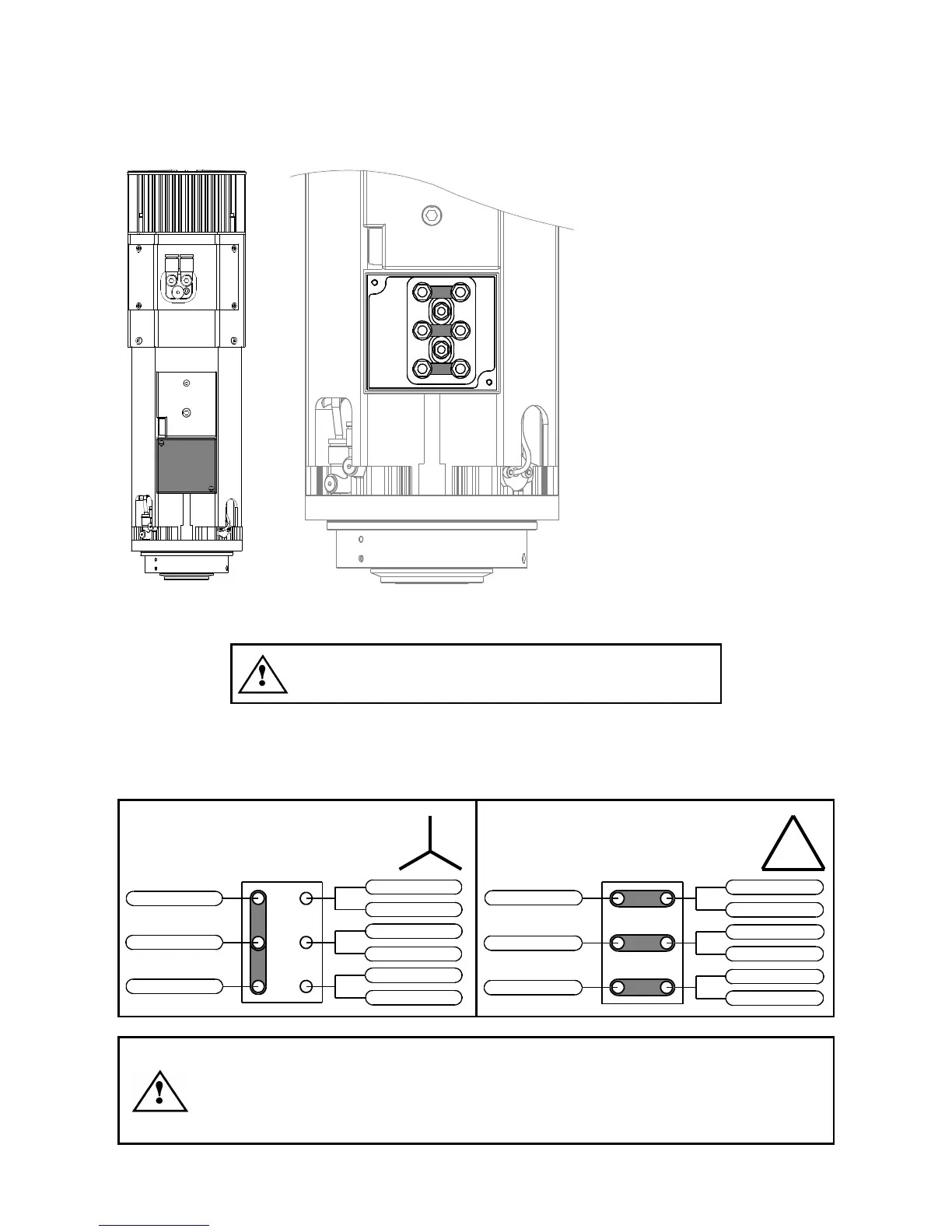

The figure on the left shows the
location of the power terminals,
under a protective cover fixed in
place by two screws.
Check what type of connections have been made
in the terminal block before installing the unit.
CONNECTION DIAGRAM
STAR CONNECTIONS
(rated voltage 380V)
DELTA CONNECTIONS
(rated voltage 220V)
RED (STATOR)
380V - PIN6
BLACK (STATOR)
WHITE (STATOR)
BLACK (STATOR)
WHITE (STATOR)
RED (STATOR)
380V - PIN4
380V - PIN8
BLACK (STATOR)
WHITE (STATOR)
RED (STATOR)
RED (STATOR)
220V - PIN6
BLACK (STATOR)
WHITE (STATOR)
220V - PIN8
220V - PIN4
IMPORTANT:
In star connections (for rated voltages of 380V)
the terminals to be short circuited together are
those connected to a single wire.
