HSD ES919 NC - Replacing the Cylinder Assembly

______HSD Technological equipment for Automation _____________________________________
5801H0017 Rev. 02 _________________________________________________________ 82/98

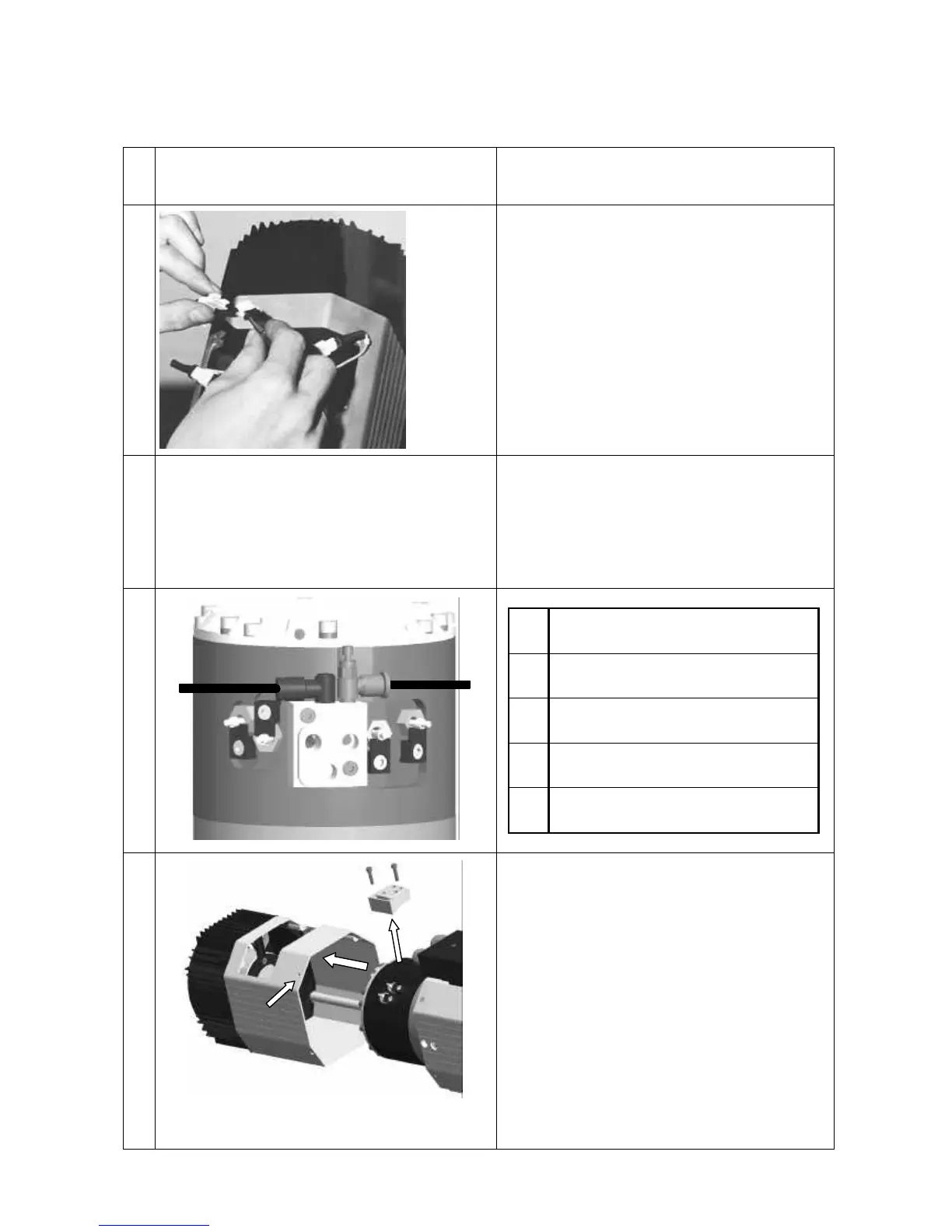

12.2.5 Replacing the cylinder assembly
1
Open the sensor compartment as instructed
in section 12.2.4.3 .
2
Disconnect all the electrical connectors.
3
IMPORTANT:
Before you disconnect hoses A and D
(see step 4 below) tag them or mark
them with adhesive tape, so that you
can recognize which is which in the
rest of the procedure.
A
Compressed air line for optional
functions
B
Quick-fit union
C
Quick-fit union with pressure
regulator
D
Compressed air line for internal
pressurization
E
Compressed air inlet for cone
cleaning and pressurization
4
5
• Clearly mark hoses A and D as instructed
in step 3.
• Disconnect hoses A and D from unions B
and C.
• Remove the two fixing screws from block
G.
• Remove block G taking care not to lose or
damage the seals.
• Remove the four screws F.
• Remove the cooling fan cover in the
direction shown by the arrow.
A
D
B C
E
G
F
