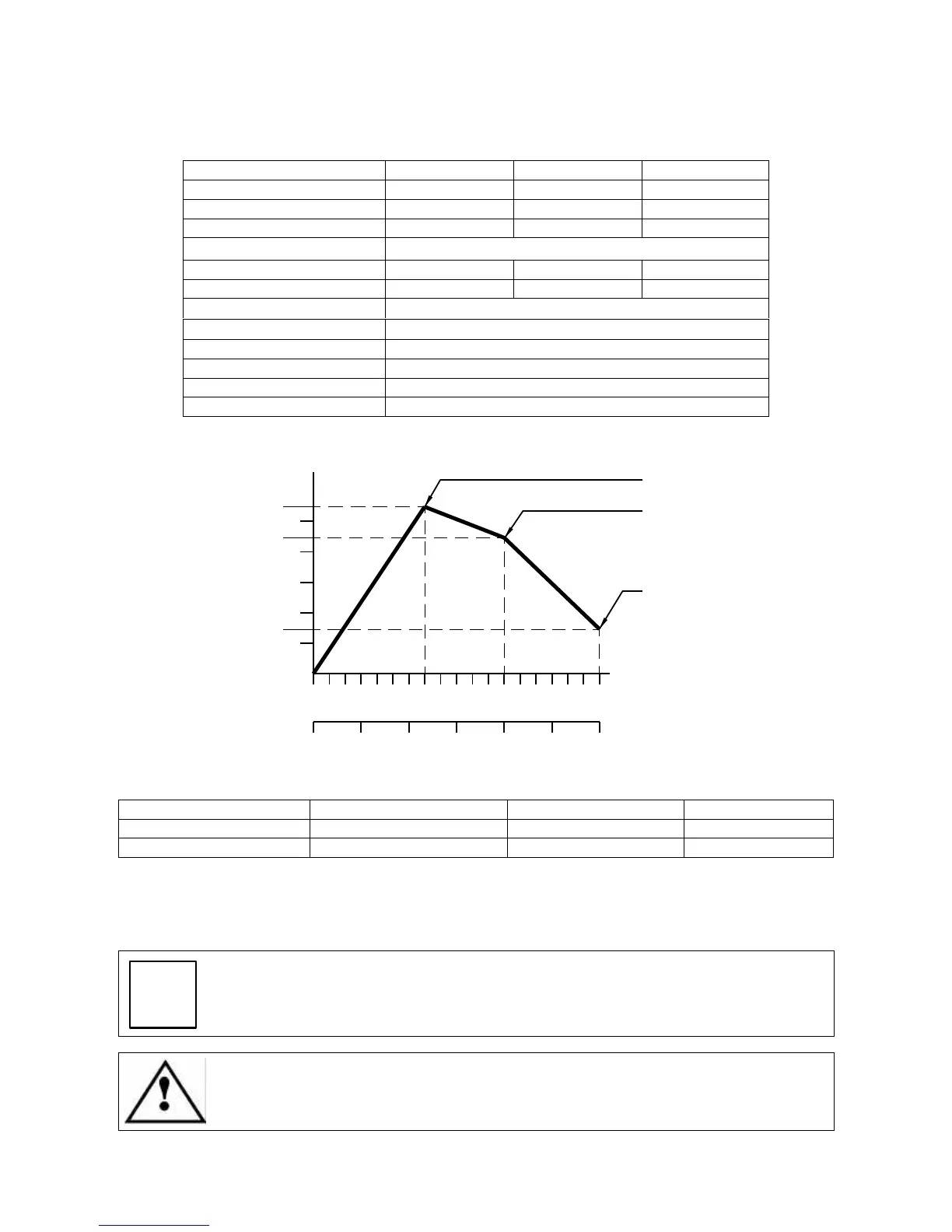

7.4.7 Specifications and performance of ES919 4 Pole, 5.5 kW units
Rated voltage (*)
380 V ± 10% 380 V ± 10% 380 V ± 10%
Rated frequency
233 Hz 400 Hz Hz 600
Rated speed
7000 rpm 12000 rpm 18000 rpm
Rated power
5.5 kW 4.5 kW 1.5 kW
Duty type
S1
Rated torque
7.5 Nm 3.6 Nm 0.8 Nm
Rated current
15 A 14 A 6.5 A
Rated efficiency η
0,8
Power factor cos ϕ
0,8
Number of poles
4
Insulation class
H
Type of cooling
Cooling fan
Weight
~ 26 kg
[(*) from inverter]
k
W
(
S
1
)
Hz
0
rpm x 1000
3 6 9 12 15 18
1
2
3
4
5
0
100
200 300
400
500
600
5,5
4,5
1,5
7
,
5
N
m
3,6 Nm
0,8 Nm
Notes:
TOOL HOLDER FRONT BEARINGS REAR BEARINGS MAX SPEED
ISO30 STEEL STEEL 18000rpm / 600Hz
ISO30 CERAMIC STEEL 18000rpm / 600Hz
i
The 5.5 kW, 4 Pole motor is not available with configurable double voltage
power terminals.
The maximum continuous current inverter parameter must match the maximum
value of the rated current in the table above (also stated on the motor’s data
label).
