9.4 COMPRESSED AIR CONNECTIONS
9.4.1 Compressed air unions

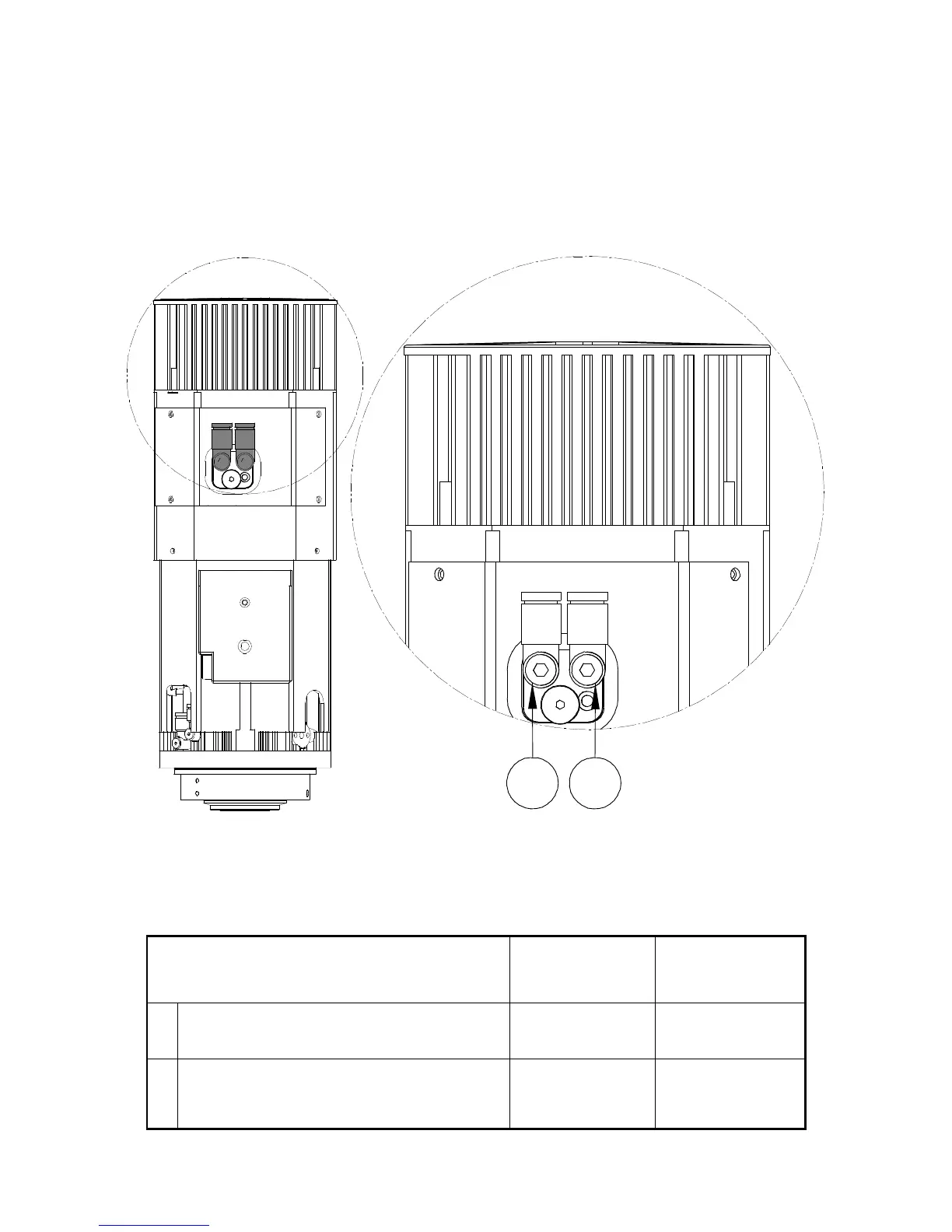

The compressed air unions are quick-fit unions. They are located as shown in Figure 9.5 and are
described in the table below.
2 1
Figure 9.5 Location of the compressed air quick-fit unions
DESCRIPTION
PRESSURE
( bar / PSI )
EXTERNAL
HOSE Ø (mm)
1
Inlet for pressurization and cone
cleaning air
4 / 58 8
2
Tool release air inlet - outlet
7 / 100 8
