4 Installation and Commissioning
Copyright © Huawei Technologies Co., Ltd.
The following tools are available: Phillips screwdriver, flat-head screwdriver, and rubber
mallet.
Context
When installing a rack-mounted Independent Deployment AI/DI Unit, choose
appropriate long mounting ears delivered with the Independent Deployment AI/DI Unit.
A flat-head screwdriver can be used as a floating nut mounting bar.
Procedure
Step 1 Use a floating nut mounting bar to install floating nuts (one on each site) into the mounting
holes in the posts of the rack, as shown in Figure 4-5.

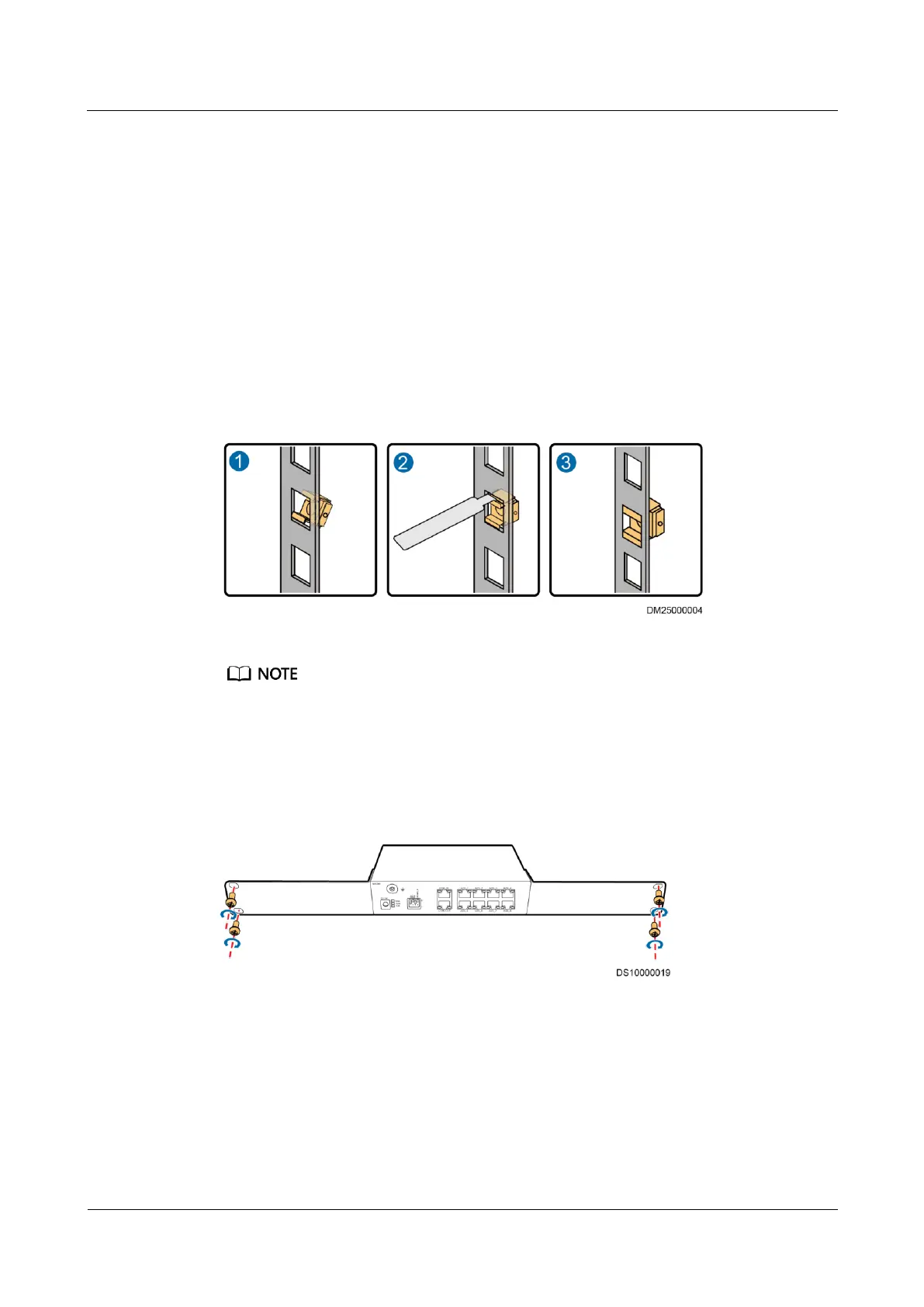

Figure 4-5 Installing floating nuts
Ensure that the floating nuts on both sides are on the same horizontal line.
Step 2 Install long mounting ears on the Independent Deployment AI/DI Unit.
Step 3 Secure the Independent Deployment AI/DI Unit in the cabinet by tightening the M6 screws
clockwise on the right and left mounting ears, as shown in Figure 4-6.
Figure 4-6 Installing a rack-mounted Independent Deployment AI/DI Unit
----End
