Step 2 (Optional) Install a network security certificate if a certificate problem message is displayed.
For details, see 7.3 How Can I Install a Network Security Certificate?.

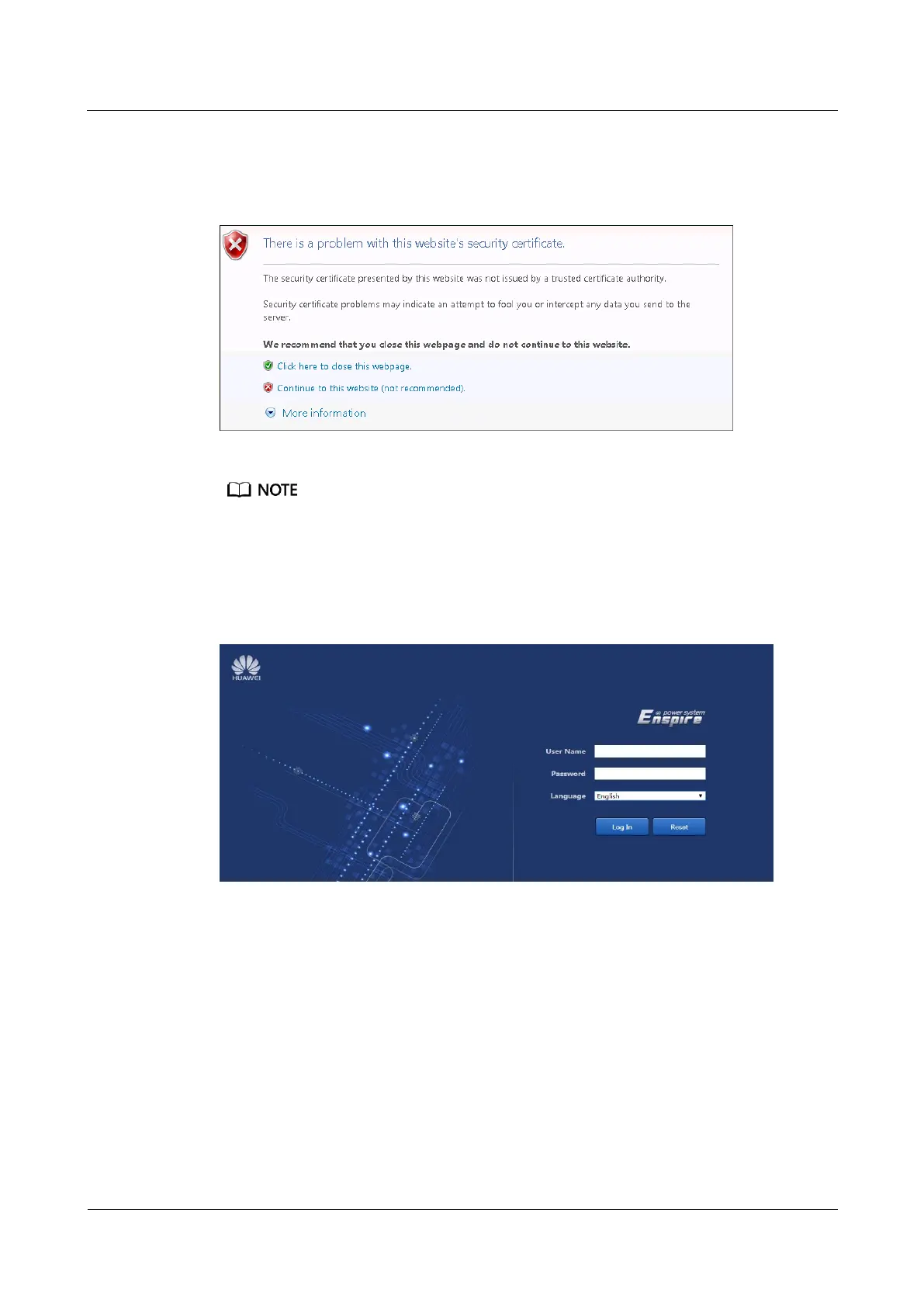

Figure 5-25 Security certificate problem message
This operation is performed on Windows 7. If another operating system is used, perform this operation
based on actual conditions.
Step 3 Set User Name and Password, and click Log In. The WebUI login page is displayed, as
shown in Figure 5-26.
Figure 5-26 ECC500 WebUI login page
Step 4 Choose Monitoring > System Equipment > Running Parameter.
Step 5 Set Enable online detection to Enable.
Step 6 Click Submit.
Step 7 Set Device address and Device name.
Set Device address and Device name to the IP address and name of the networked device
respectively, for example, XXX.XXX.XXX.XXX and No._X_ATM_at_XXX_site, as shown
in Figure 5-27.
