FusionModule2000 Smart Modular Data Center
Product Description
Copyright © Huawei Technologies Co., Ltd.

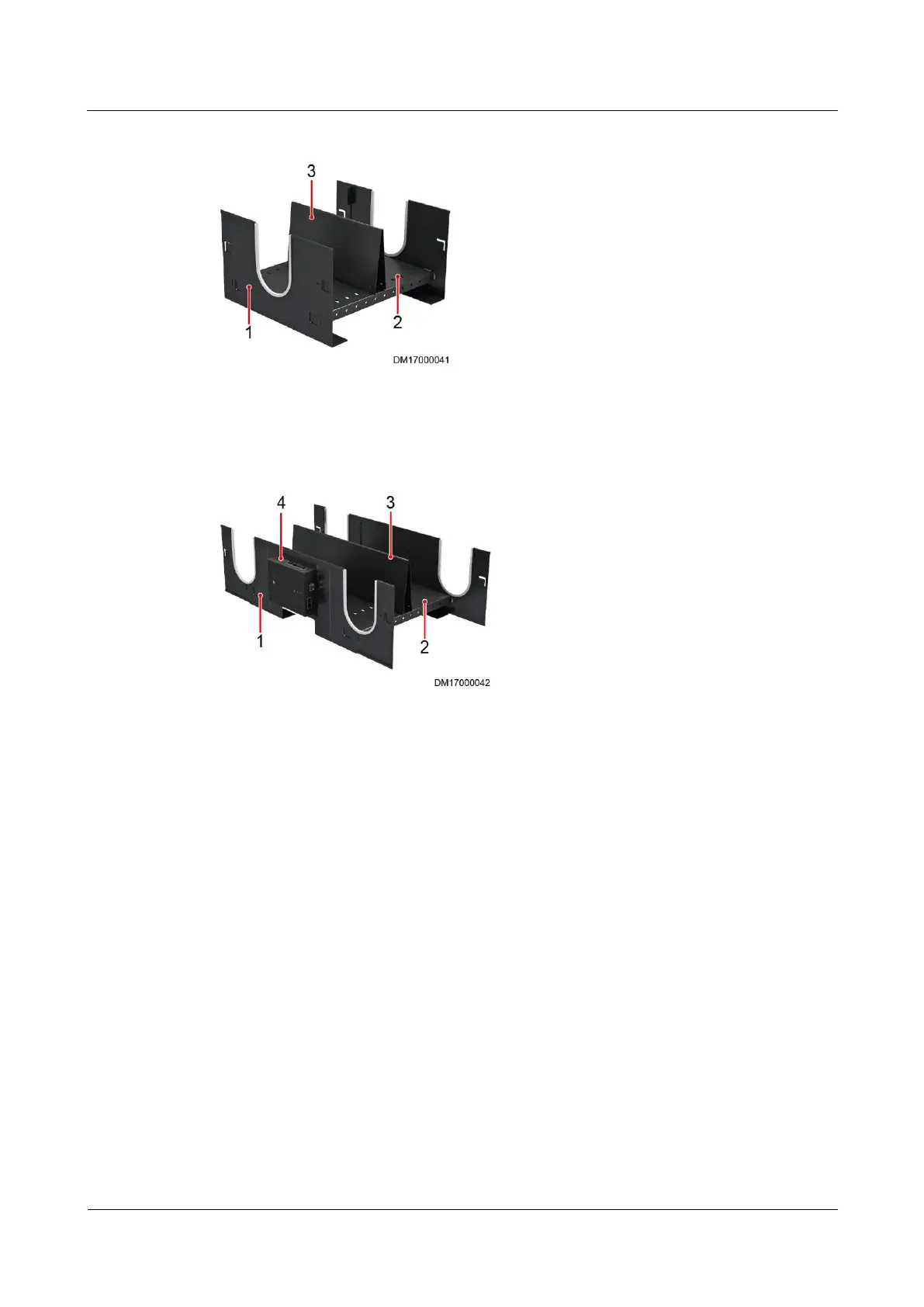

Figure 6-17 300 mm wide cable trough
Figure 6-18 600 mm or 800 mm wide cable trough
(4) Position for the smart ETH
gateway
6.2.4 (Optional) Mesh cable trough
Cabinet cable troughs are categorized into signal cable troughs and power cable troughs,
which are used to route signal cables and power cables respectively. This ensures that weak
current cables are separated from strong current cables. The length of the cable trough needs
to be cut based on the actual aisle length. The cable trough is secured to the top of the cabinet
using fasteners.
