6.2.7 (Optional) Ground Copper Bar
Ground copper bars can be horizontal and vertical. Vertical ground copper bars are longer
than horizontal ones. Ground copper bars are used to ground cabinets. Ground copper bars are
installed in the battery cabinet or IT cabinet closest to the PDF.

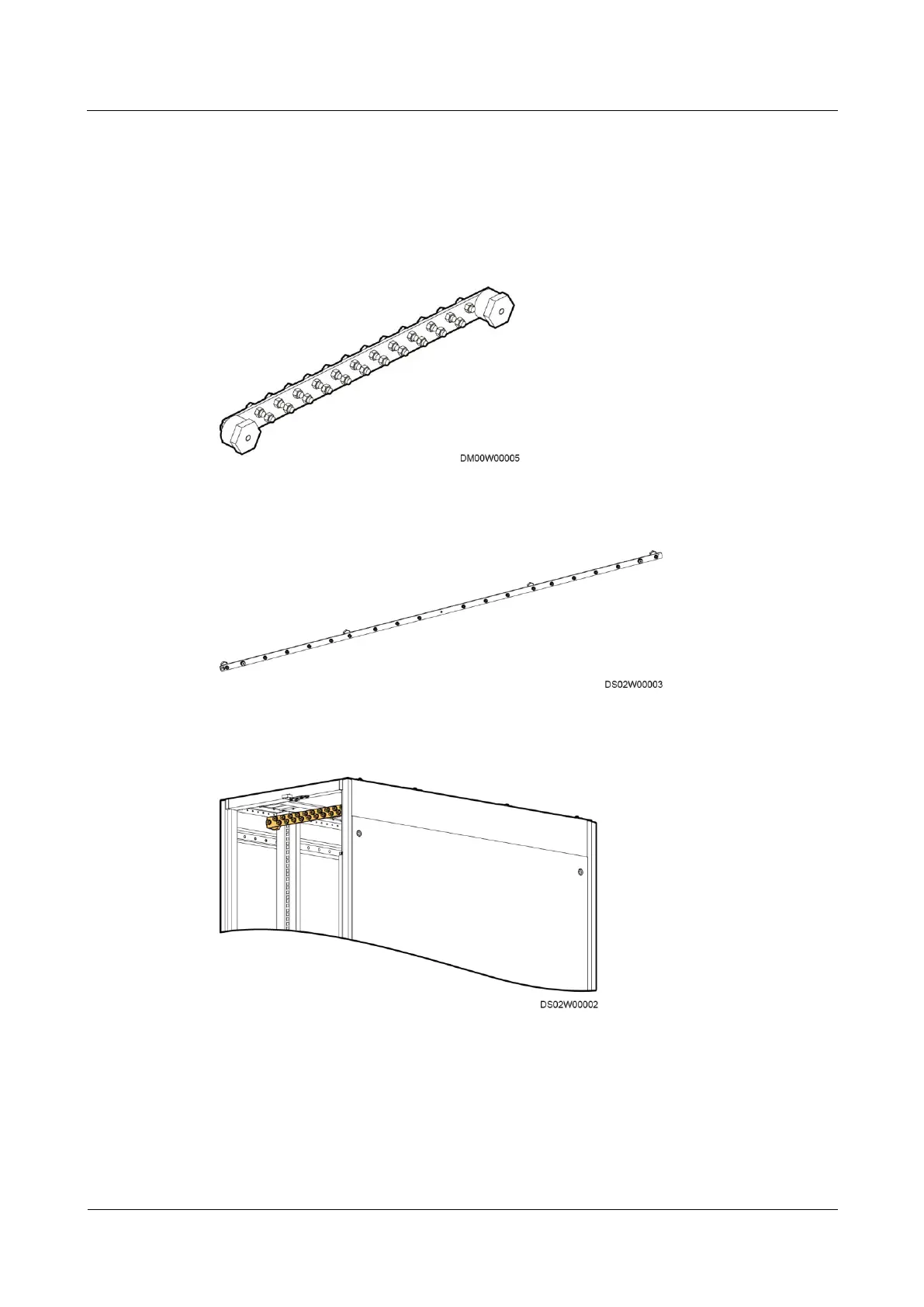

Figure 6-21 Horizontal ground bar
Figure 6-22 Vertical ground bar
Figure 6-23 Installation position for a horizontal ground copper bar
