FusionModule2000 Smart Modular Data Center
Product Description
5 Power Supply and Distribution System
Copyright © Huawei Technologies Co., Ltd.
5.2.1.3 Bypass Module
Appearance

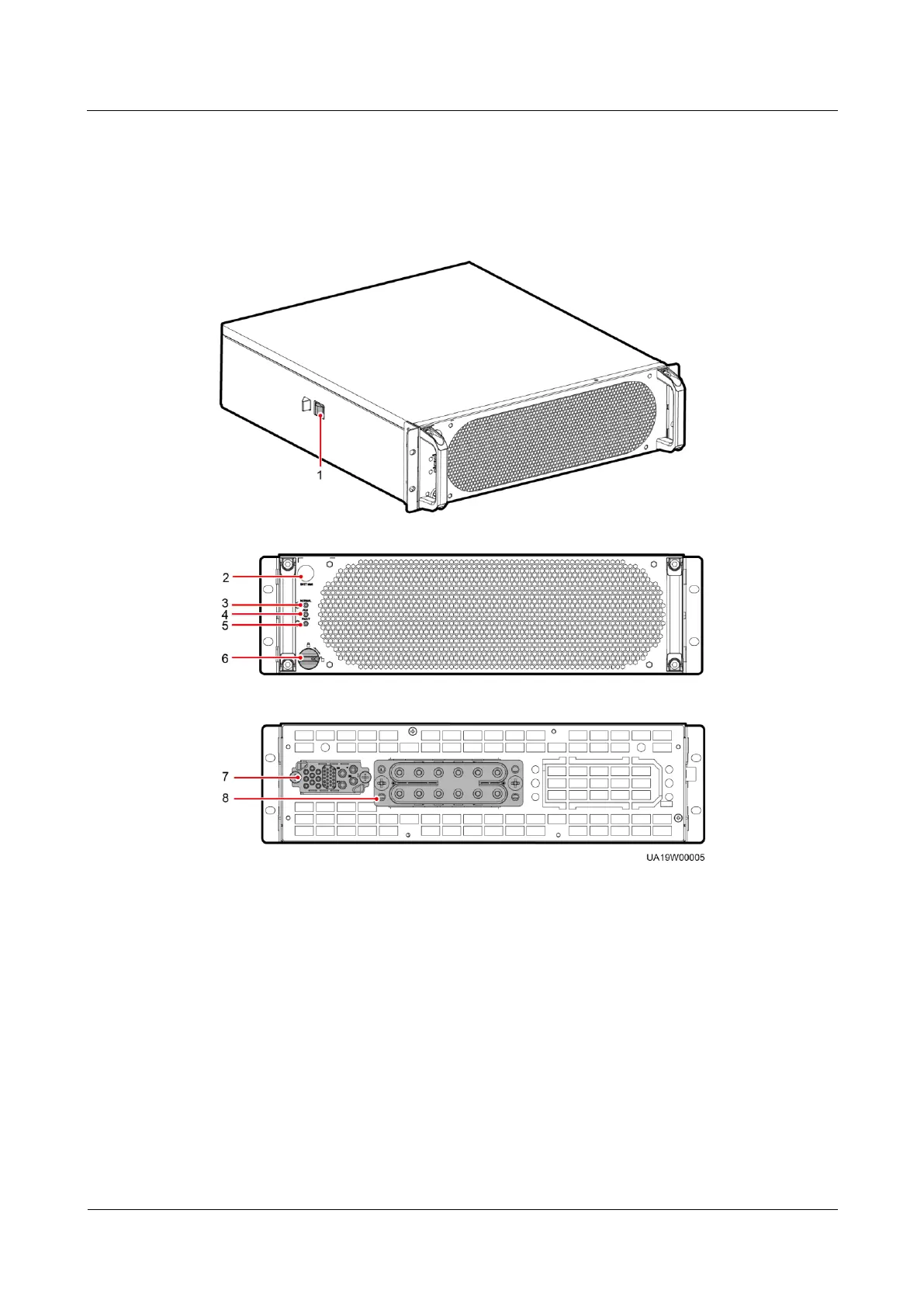

Figure 5-24 Bypass module
(2) Battery cold start
button
(8) Input and output
ports
Functions
The UPS is set to ECO mode and the bypass voltage is within the specified range.
The power module is overloaded for a period longer than the maximum allowed period.
Both the active and standby ECMs are abnormal.
