8.3.1.2 Main Control Module

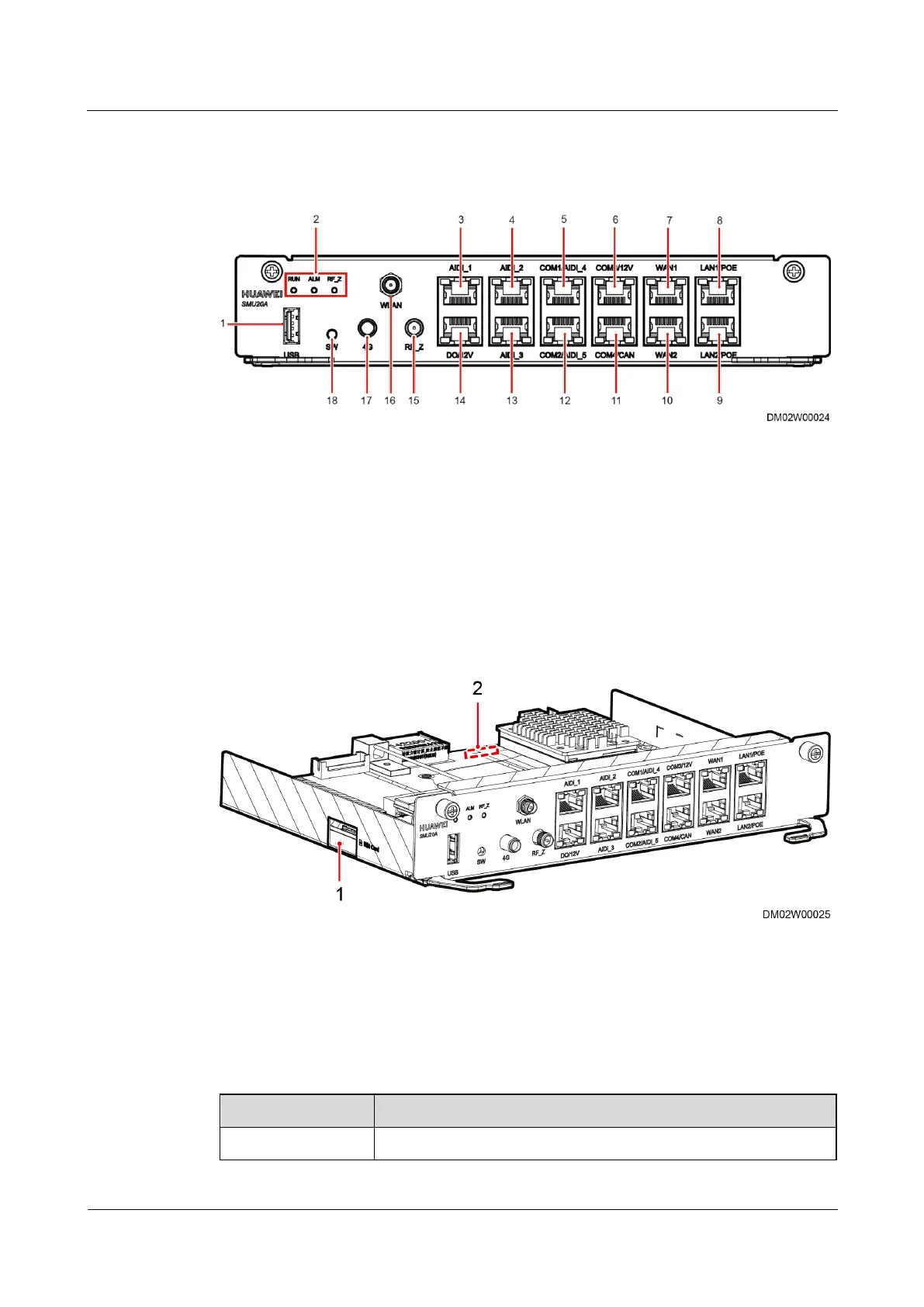

Figure 8-13 ECC800-Pro collector main control module

(1) USB

(2) Status indicator

(3) AIDI_1

(4) AIDI_2

(5) COM1/AIDI_4

(6) COM3/12V

(7) WAN1

(8) LAN1/POE

(9) LAN2/POE

(10) WAN2

(11) COM4/CAN

(12) COM2/AIDI_5

(13) AIDI_3

(14) DO/12V

(15) RF_Z

(16) WLAN

(17) 4G

(18) SW button

Figure 8-14 ECC800-Pro main control module (side view)

(1) SIM card slot

(2) Micro-SD card slot (reserved)

Specifications

Table 8-4 Technical specifications of the ECC800-Pro main control module

Item

Specifications

Power input



Supports one AC input or two AC inputs
