FusionModule2000 Smart Modular Data Center
Product Description
8 Intelligent Module Management System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
145
Item
Specifications
module)
Color
Black
Installation
Can be installed in a 1 U space in a standard
19-inch cabinet
Environmental protection
RoHS5, REACH, WEEE

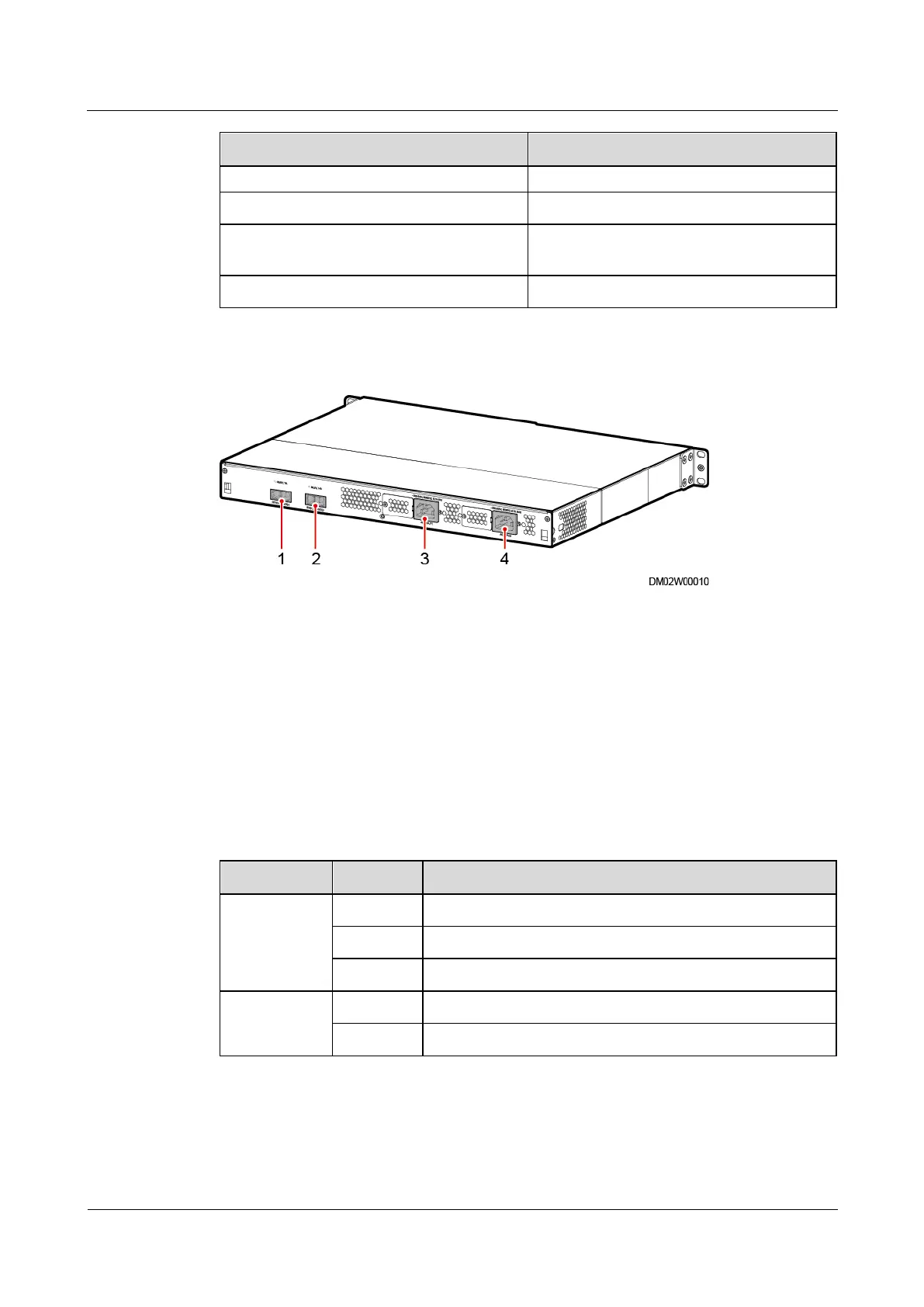

Figure 8-12 ECC800-Pro (rear view)
(1) 53.5V DC_OUT1
(2) 53.5V DC_OUT2
(3) AC_INPUT1
(4) AC_INPUT2
Power Ports
The ECC800-Pro provides four power ports, including two AC input ports (AC_INPUT1 and
AC_INPUT2) and two DC output ports (DC_OUTPUT1 and DC_OUTPUT2). Table 8-3
provides the power port pin definitions.
Table 8-3 Power port pin definitions
Port Type
Pin
Description
AC
Pin 1
L
Pin 2
PE
Pin 3
N
DC
Pin 1
48V+
Pin 2
48V GND
