5.1.2 Power Supply and Distribution System for Smart Module B
N+1 Power Supply and Distribution System Diagram

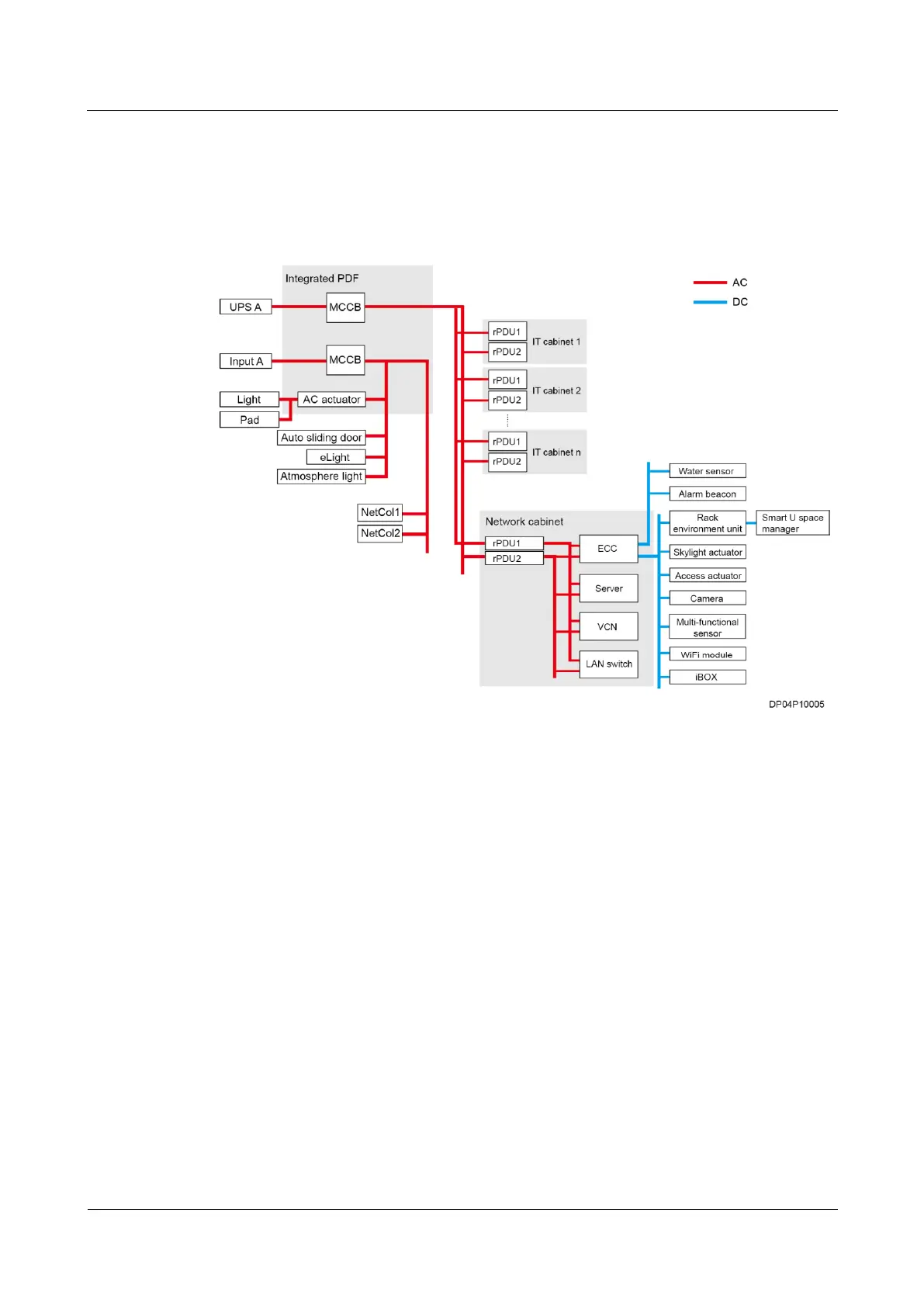

Figure 5-12 N+1 power supply and distribution system diagram (integrated PDF)
