Huawei FusionModule2000 Product Description

FusionModule2000 Smart Modular Data Center
Product Description
8 Intelligent Module Management System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
161
Item
Specifications
FE port
FE communication with the rate of 10/100M
RS485 serial
port
expansion

Four RS485 ports with the default communications rate of 9600 bit/s

Among the four RS485 ports, two support 12 V DC power output with
the rated current of 400 mA.

The other two are isolated, with the default communications rate of
9600 bit/s, and do not support power output.
AI/DI input
Two active 12 V DC, 200 mA (rated) AI/DI input ports
Temperature
sensor port
Provides two RJ45 ports to connect to six temperature sensors, each RJ45
port connecting to three temperature sensors.
BLINK
button
Supports the blinking function.
8.3.4.2 Smart ETH Gateway
A smart ETH gateway allows the extension of the 53.5 V DC power supply and FE
communication for the ECC800-Pro and can be flexibly deployed in a smart module.

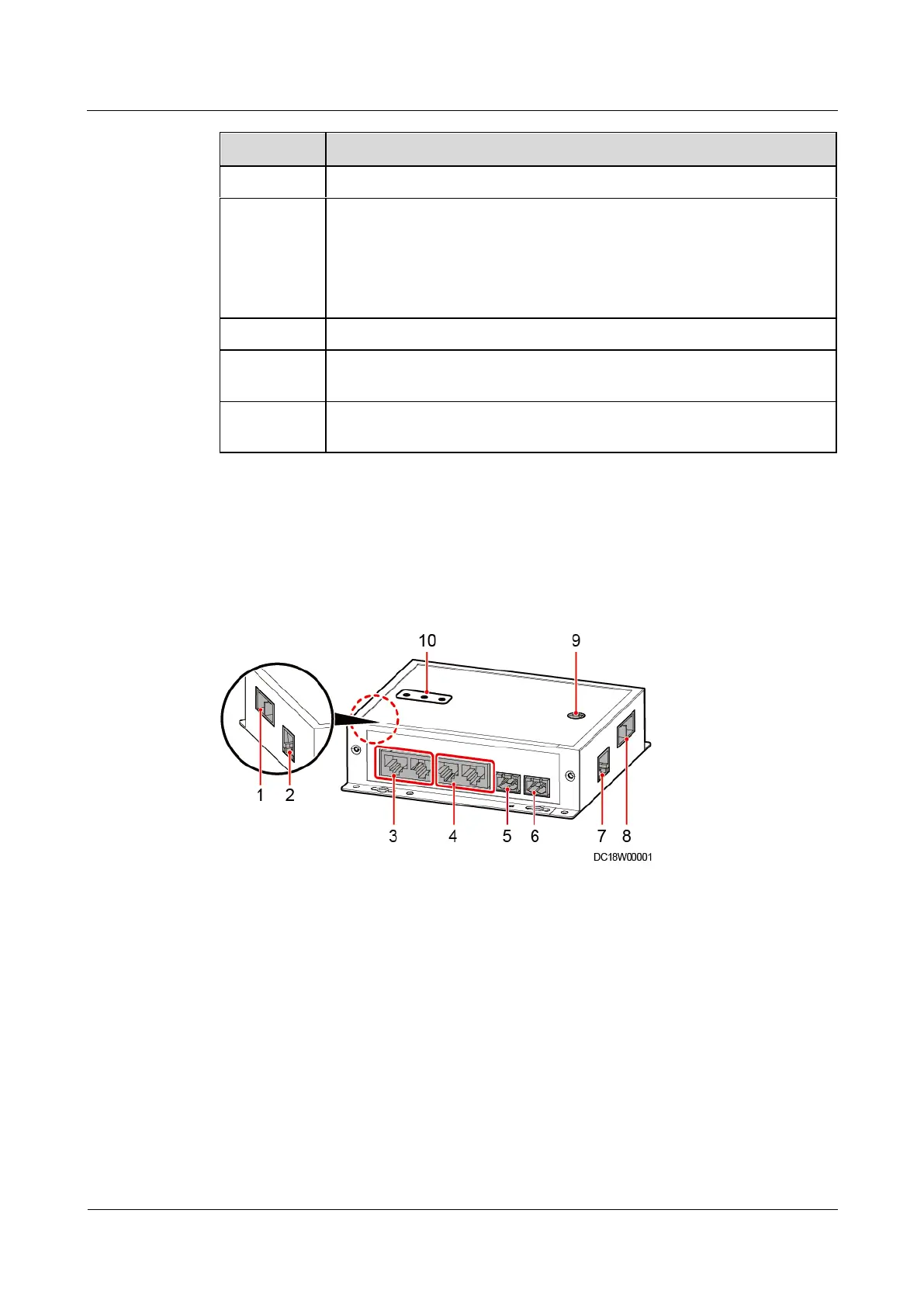

Figure 8-20 Smart ETH gateway
(1) PWR_IN
cascading power port
(2) FE_1 cascading
signal port
(3) POE_1–2
ports
(4) POE_3–4 ports
(5) 48V_OUT1
power output port
(6) 48V_OUT2
power output port
(7) FE_2
cascading signal
port
(8) PWR_OUT
cascading power port
(9) BLINK button
(10) Status indicator
