5.2.5.2 Power Distribution Unit

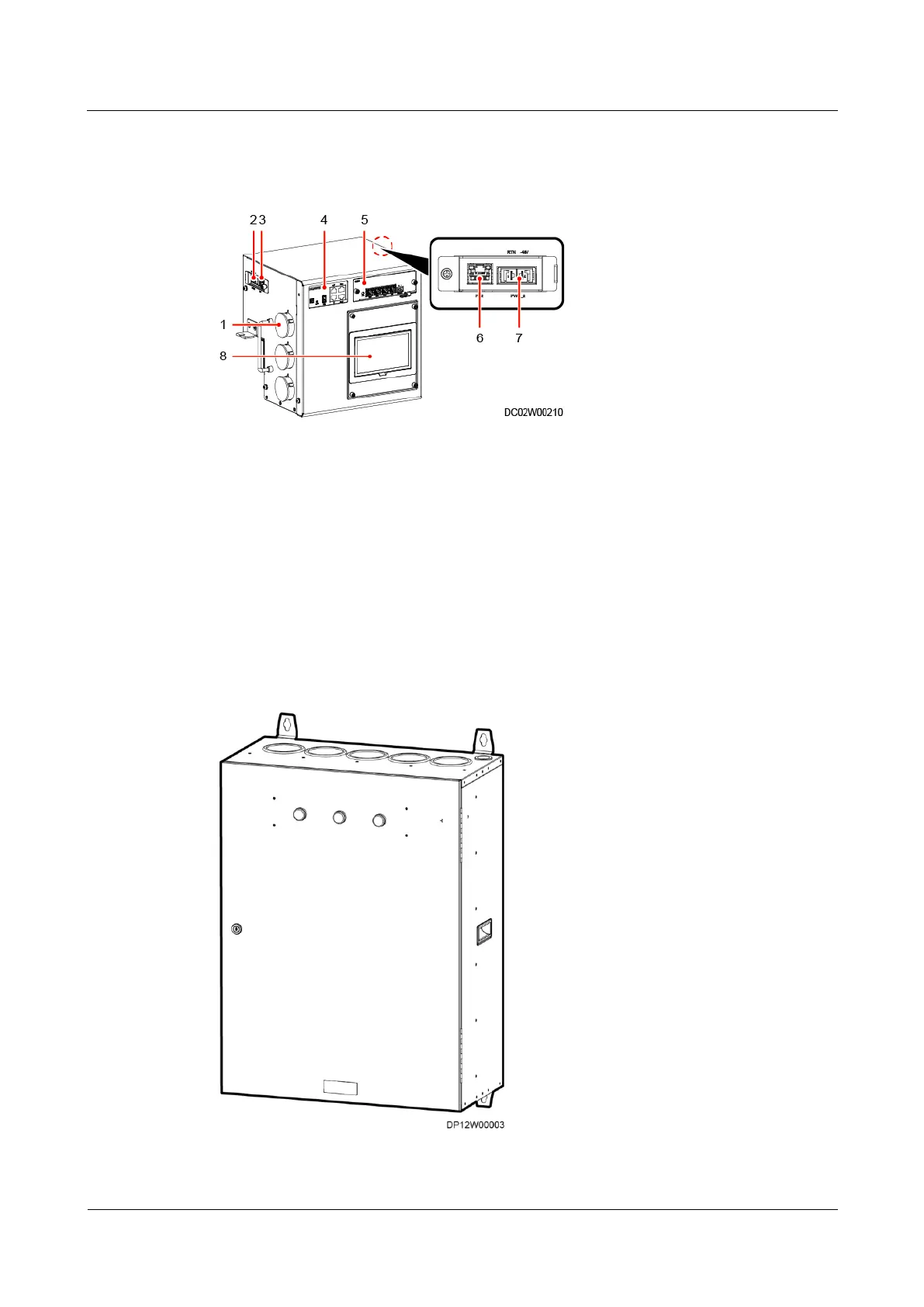

Figure 5-58 Power distribution unit
(1) Load wiring port
(2) PWR_1
port
(3) FE1 port
(4) Monitoring panel
(5) Integrated
management card
(6) FE2 port
(7) PWR_2
port
(8) Output circuit breaker
(behind the cover)
5.2.6 Smart Cooling Product PDB
The smart cooling product PDB supplies power to smart cooling products and aisle lighting in
precision PDF or new main way (NMW) scenarios.
Figure 5-59 Appearance
