FusionModule2000 Smart Modular Data Center
Product Description
Copyright © Huawei Technologies Co., Ltd.

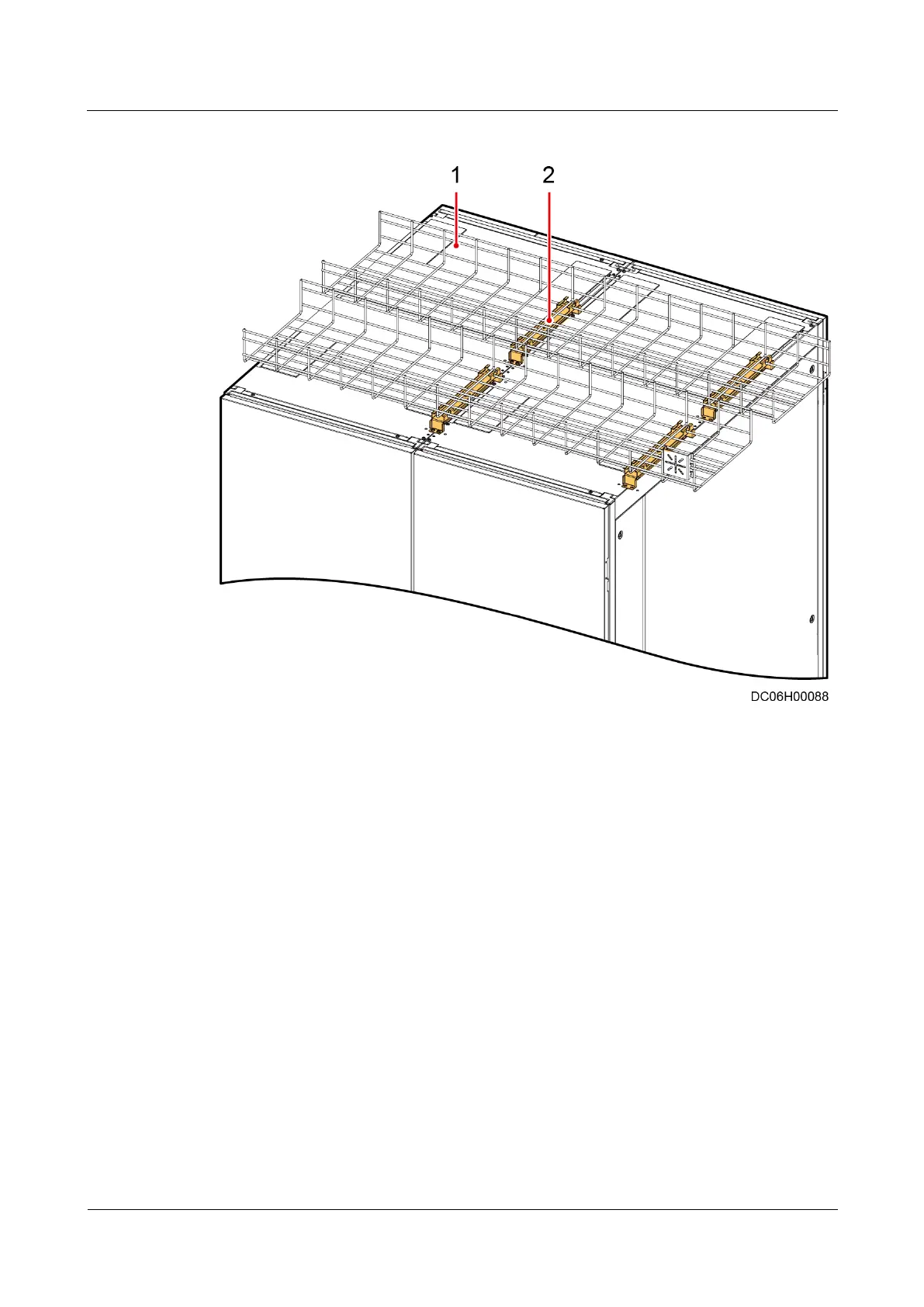

Figure 6-19 Mesh cable trough
6.2.5 (Optional) Cable Tray
Cable trays are used to route cables across two rows of cabinets in the smart module. If two
rows of cabinets are deployed, route strong-current and weak-current cables over the control
skylight at either end of the rows preferentially. If there are more than 24 cabinets, install one
cable tray on the top of end cabinets for routing power cables as there are many cables to be
routed.
A cable tray is 2.5 m long.
