FusionModule2000 Smart Modular Data Center
Product Description
Copyright © Huawei Technologies Co., Ltd.

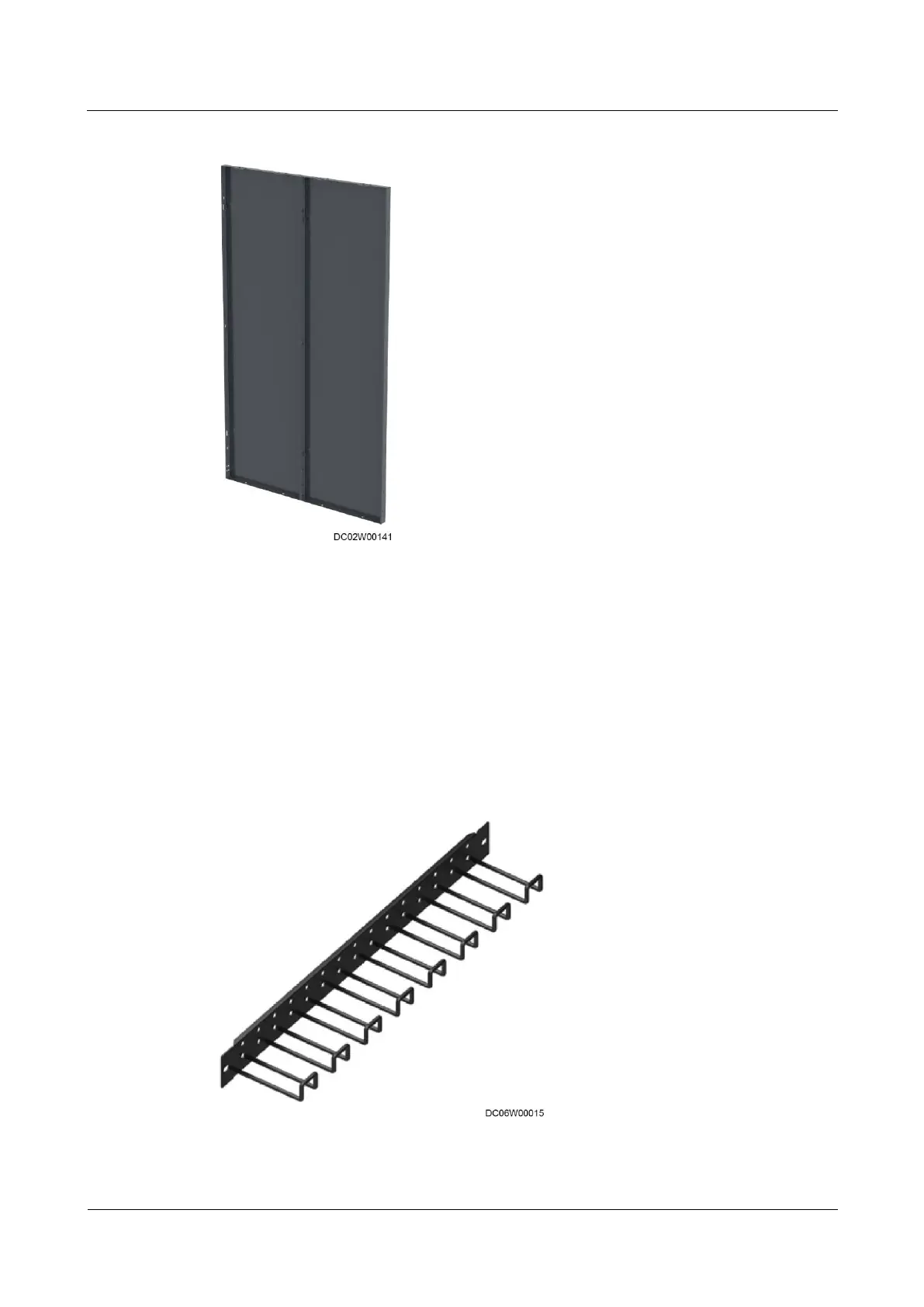

Figure 6-7 Cabinet enclosure plate
6.1.6 Cable Management Devices
Cables inside cabinets are sorted by cable managers, cable rings, and cable trays. Cable
managers route cables horizontally, cable rings on the cabinet side route cables vertically, and
cable trays route cables from the cabinet front to cabinet rear.
Cable Manager
A cable manager is used to manage cables inside a cabinet horizontally.
Figure 6-8 Cable manager
