Table 6-4 1 U cable manager specifications
Dimensions (H x W x D)
Weight
Space Occupied
43.6 mm x 482.6 mm x 91
mm
0.56 kg
1 U
Cable Ring
A cable ring is installed on a side post in the cabinet to secure vertically routed cables.

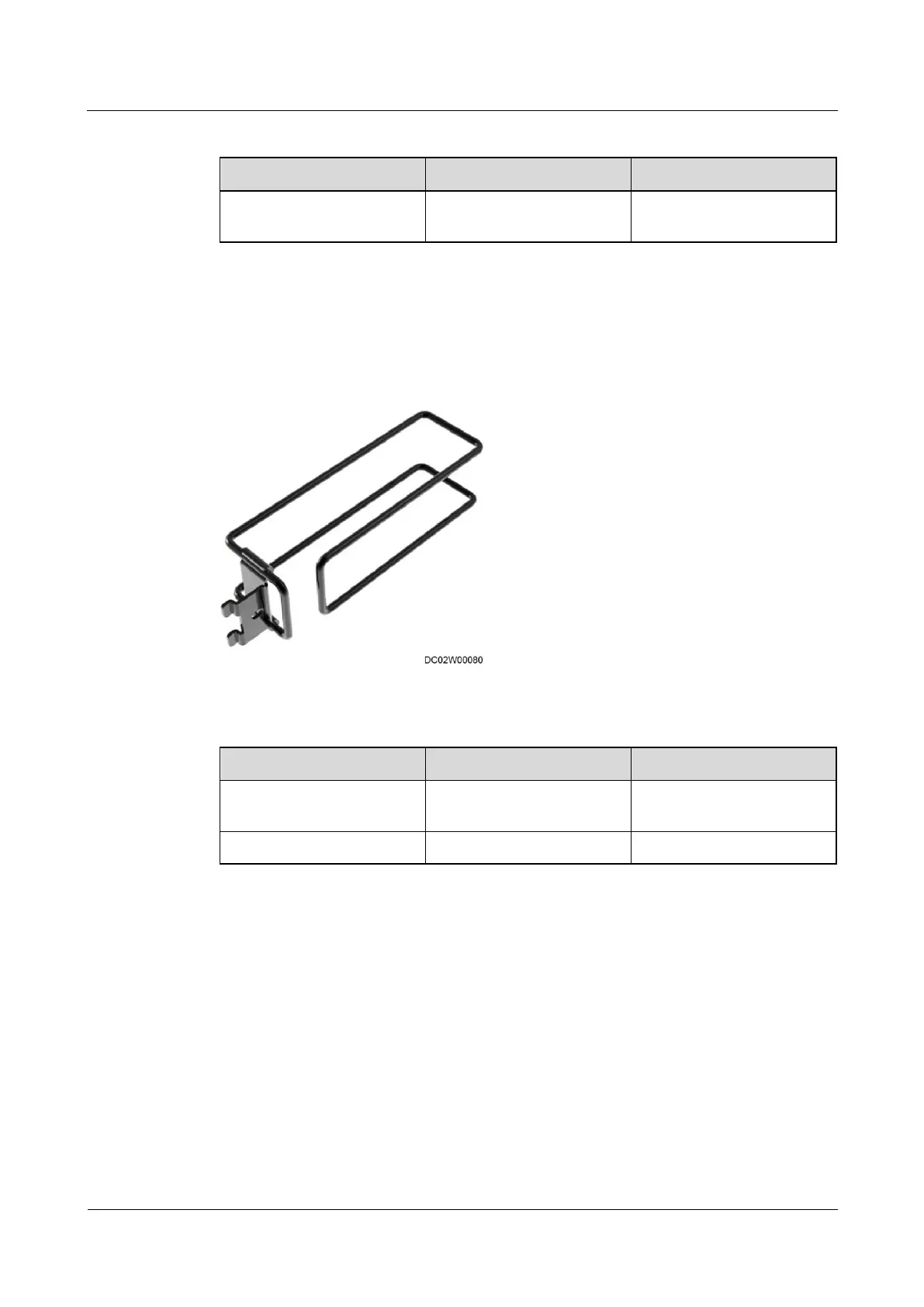

Figure 6-9 Cable ring
Table 6-5 Cable ring specifications
Name
Dimensions (H x W x D)
Weight
Standard cable ring
55 mm x 48 mm x 188.6
mm
0.163 kg
Small cable ring
55 mm x 48 mm x 44 mm
0.096 kg
Cable Tray
A cable tray is used for forward and backward cabling. It uses mounting ears to facilitate
device installation.
