5 Power Supply and Distribution System
5.1 System Overview
Smart modules are classified into smart module A and smart module B by different power
supply and distribution systems.
Smart Module A
For smart module A, the integrated UPS is deployed inside the module and batteries can be
deployed inside or outside the module.

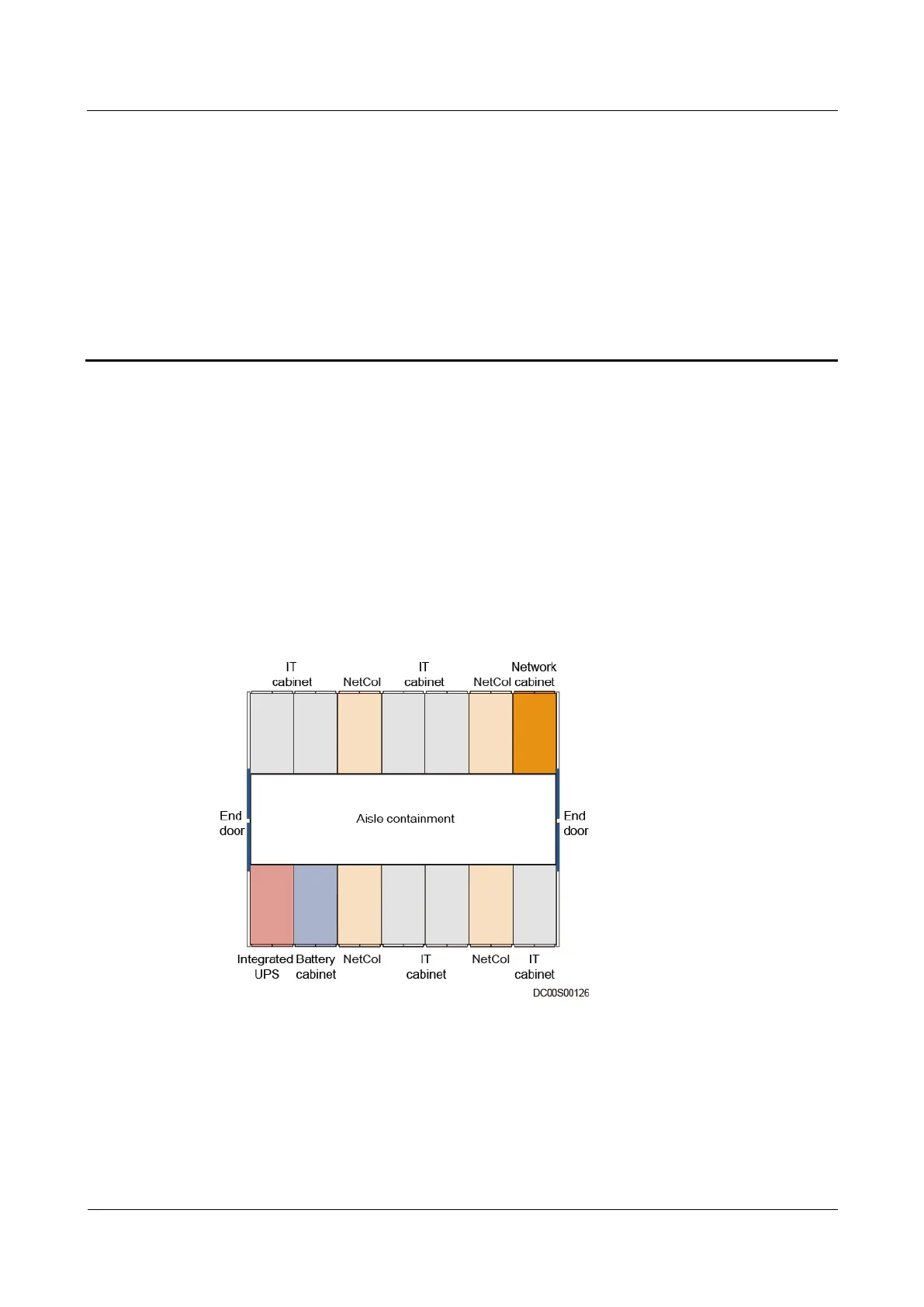

Figure 5-1 Layout of smart module A (batteries deployed inside the module, N+1 scenario)
