Enclosure protection level
IP20
Output switch

40 A single-phase, maximum 144 routes (single-phase)

(Optional) Hot-swappable MCB
Surge protection
Class C; nominal discharge current In (8/20 µs) = 20 kA,
maximum discharge current Imax (8/20 µs) = 40 kA;
voltage protection level Up (20 kA, 8/20 μs) ≤ 1.8 kV
(L-N)/≤ 1.0 kV (N-PE)
Cable routing
Routed in and out from the top or bottom
Certifications
CCC, CE
Environmental friendliness
RoHS, REACH
Table 5-41 Monitoring specifications
Item
Specifications
Power distribution mains
input
Phase voltage, phase current, load rate, frequency, power
factor, total active power, total electric energy, total
apparent power, total reactive power, busbar temperature,
circuit breaker status, and surge protection status
Power distribution branch
output
Phase current, active power, load rate, electric energy,
temperature, and circuit breaker status

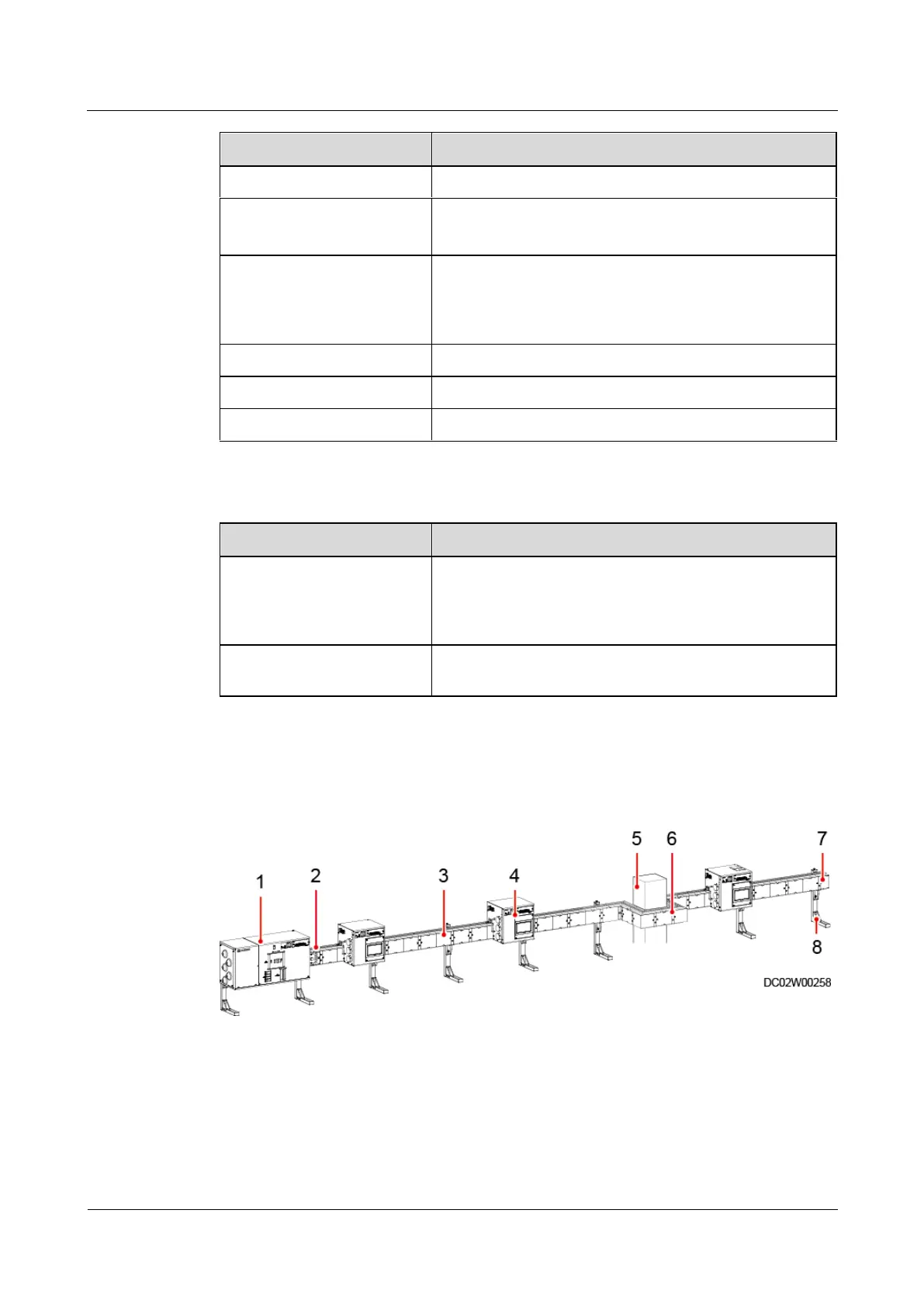

5.2.5 New Main Way 2.0
Figure 5-53 New main way
(1) General
input unit
(2) Connective kit
(3) Busbar
trunking unit
(4) Power
distribution unit
(5) Column
(6) Around-column busbar
trunking unit (optional)
(7) End plug
(8) Low support
